Bad Boy RENEGADE Series User Manual

PARTS SECTION:
PAGE 36
Parts List
ITEM QTY PART NUMBER DESCRIPTION
57 4 018-0057-00
5/16"-18 x 1/2 GR5 Hex bolt zink
64 8 018-2007-00 5/16" x 1" Bolt
66 4 018-2010-00 10-32 x 3/8" Button Socket Head Bolt
67 8 018-2012-00
1/4" x 1/2" BS C/S 18-8 SS
110 4 019-7040-00
1/4" Flat Washer
112 8 019-8044-00 5/16" Flat Washer
113 8 019-8051-00 5/16" Lock Washer
203 1 055-8018-75
Diesel Throttle Cable
219 1 067-8053-18 LH Rogue Hydro Tank Assy
220 1 067-8054-18 RH Rogue Hydro Tank Assy
221 1 067-9990-50
2019 Right Renagade Fuel Tank (diesel)
221.1 1 067-9990-50 2019 Right Fuel Tank (Diesel)
221.3 1 024-9903-00 90 Degree Elbow Fitting
221.4 1 032-9902-00 Nitrile Bushing
221.5 1 067-9901-00 Fuel Pick-up
Parts List
ITEM QTY PART NUMBER DESCRIPTION
221.9 1 067-9905-00
Diesel Fuel Cap
222 1 067-9995-50 2019 Left Renegade Fuel Tank (Diesel)
222.1 1 067-9995-50 2019 Left Fuel Tank (Diesel)
222.5 1 067-9905-00
Diesel Fuel Cap
222.6 1 024-9903-00 90 Degree Elbow Fitting
222.7 1 032-9902-00 Nitrile Bushing
222.8 1 067-9901-00
Fuel Pick-up
222.3 1 067-6056-00
Fuel Gauge Grommet
222.9 1 067-4090-00 Fuel Gauge
230 1 070-5374-19 2019 Horizontal Diesel Frame
242 1 077-9001-00 2019 Deck Height Dial
244 1 079-3290-00 2019 Outlaw Fuel Tank Insert - Right
245 1 079-3291-00 2019 Outlaw Fuel Tank Insert - Left
246 1 079-3480-19
Renegade Control Panel Assembly
221.9
221.3
221.4
220
219
242
246
66
66
221.1221
67
244 221.5
64
113
112
110
57
64
113
112
230
64
113
112
222.5
245
67
67
222.1222
222.7
222.6
222.3
222.9
222.8
57
110

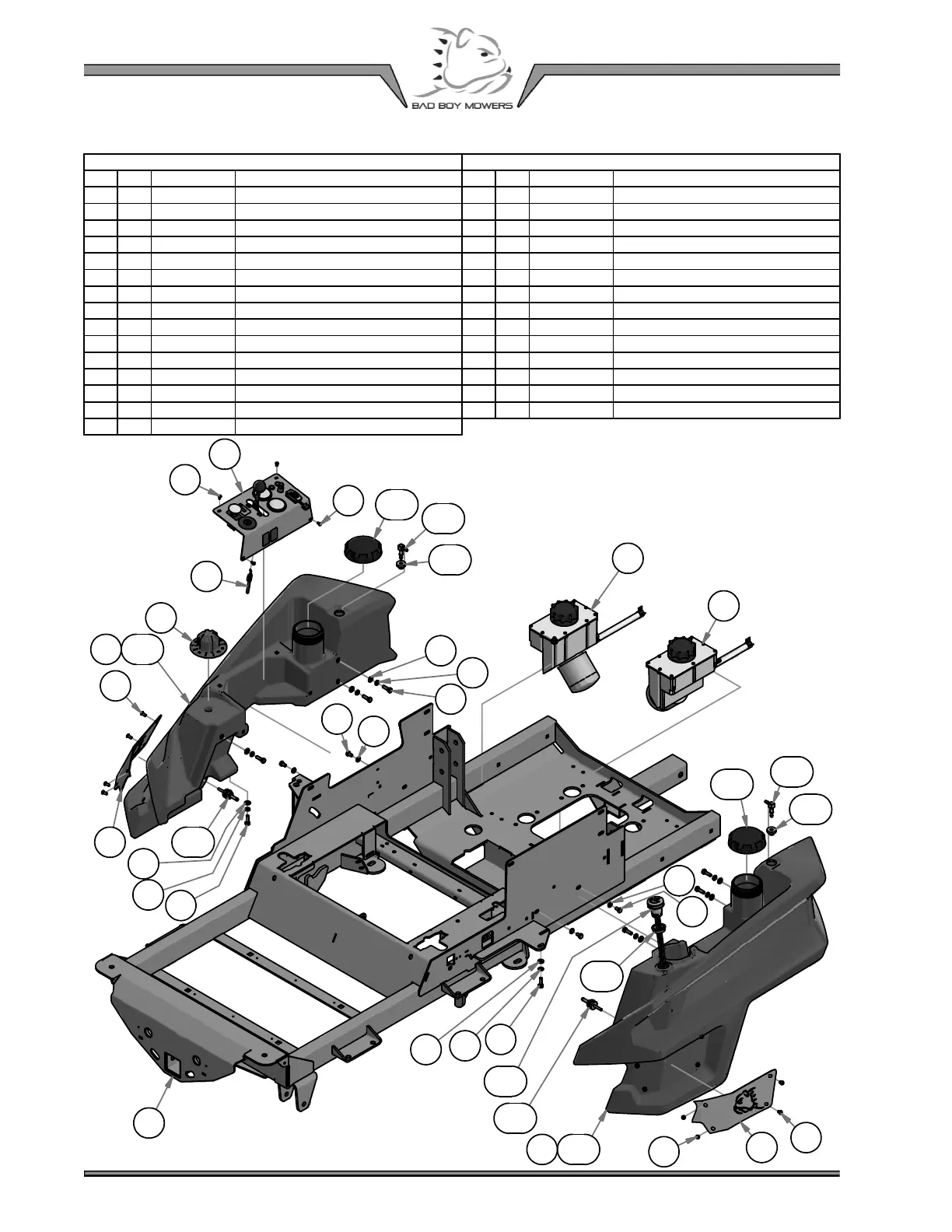

TANKS
203

Bad Boy RENEGADE Series Specifications

General

Spindle Material	Cast Iron
Horsepower	37 HP
Cutting Width	72 inches
Transmission	Hydro-Gear ZT-4400
Cutting Height	1.5 - 5 inches
