Bad Boy RENEGADE Series User Manual

Parts List
ITEM QTY PART NUMBER DESCRIPTION
9 12 013-2050-00
1/4-20 Hex flang lock nut
13 4 013-5202-00 3/8" Nylock Flange Nut
21 1 013-8050-00 1/2-13 Nylon Flange Nut
22 2 013-8051-00
1/4" Wing Nut
32 1 014-5063-00
2019 Horizontal Battery Hold Down Cover
52 1 018-0040-00 1/2" x 8 1/2 GR 5 Hex Bolt
54 4
018-0044-00 3/8" x 2 1/2" Carriage Bolt
76 4 018-4702-00
1/4-20 x 1-1/4 GR 5 Hex Bolt
95 2 018-8051-00 1/4" x 1" Carriage Bolt
Parts List
ITEM QTY PART NUMBER DESCRIPTION
96 8 018-8052-00
1/4" x 3/4" Hex Bolt
110 4 019-7040-00 1/4" Flat Washer
131 1 025-0028-00 2019 Rear Vertical Pulley Spacer
134 2 025-5203-00
Spacer 3/4 OD x 1/2 ID x 3\4 Length
138 1 026-2224-00
2019 Horizontal Suspension Rear Cover
150 2 029-7038-00 8" Rubber Bumper
172 2 033-7027-00 2019 Outlaw Horizontal Rear V Pulley
212 1 064-4000-00
Red Battery Cable - Diesel
213 1 064-4001-00 Black Battery Cable - Diesel
218 2 067-8052-19 Renegade Oil Cooler Assembly
218.1 2 067-8052-00
2019 12" Oil Cooler With Fittings
218.2 2 051-8063-14 3/8" Clear Hose
218.3 2 051-8063-24 3/8" Clear Hose
218.4 8 072-8065-00
3/8" Hose Clamp
223 1 068-8050-00
Battery - Diesel/Renegade Models PF-516
230 1 070-5374-19 2019 Horizontal Diesel Frame
PARTS SECTION:
PAGE 37
218.4
218.3
218.4
218.2
218.1
96
134
172
13
138
134
131
172
21
218
52
54
230
13
150
76
110
9

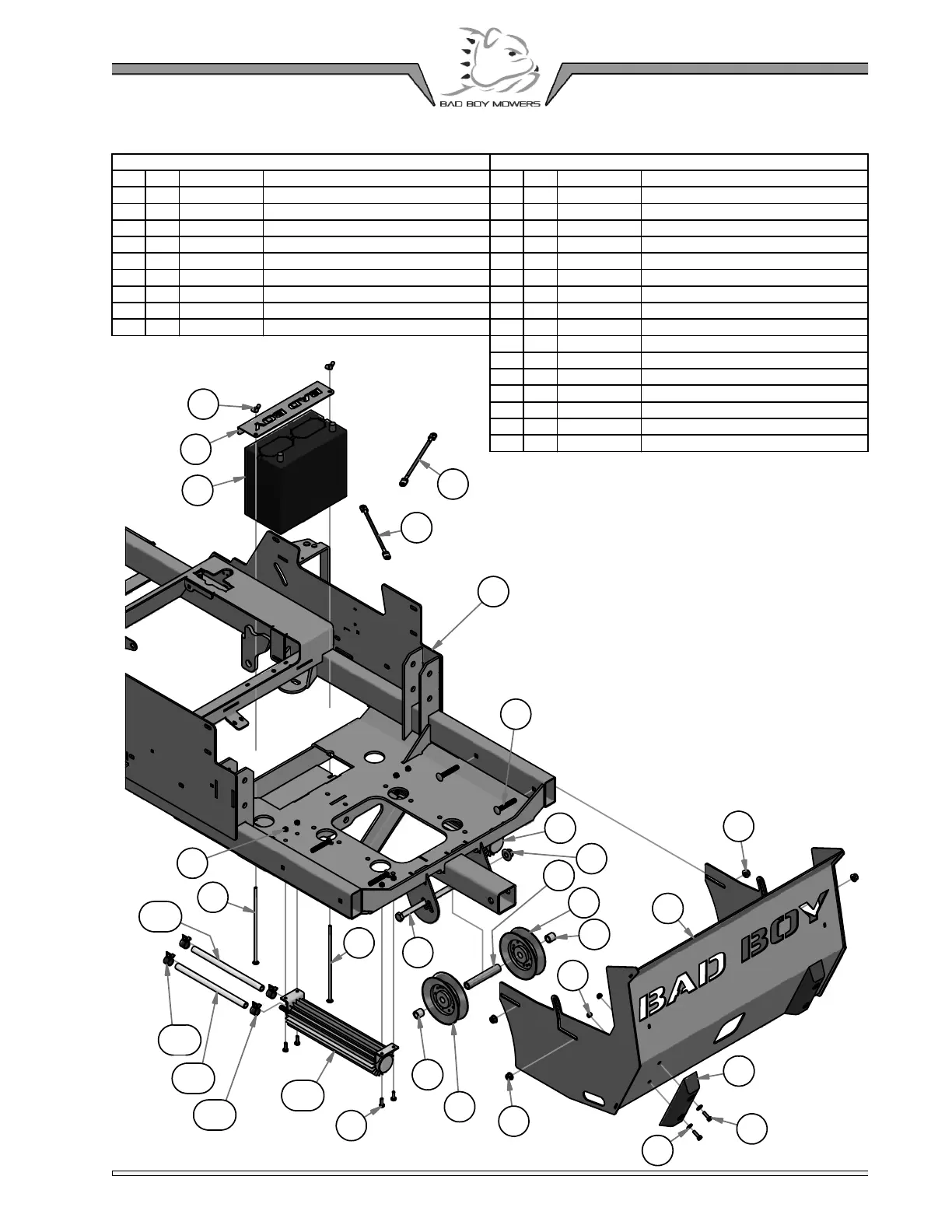

REAR COVER & HYDRAULIC COOLERS
95
95
213
212
223
32
22
9

Bad Boy RENEGADE Series Specifications

General

Spindle Material	Cast Iron
Horsepower	37 HP
Cutting Width	72 inches
Transmission	Hydro-Gear ZT-4400
Cutting Height	1.5 - 5 inches
