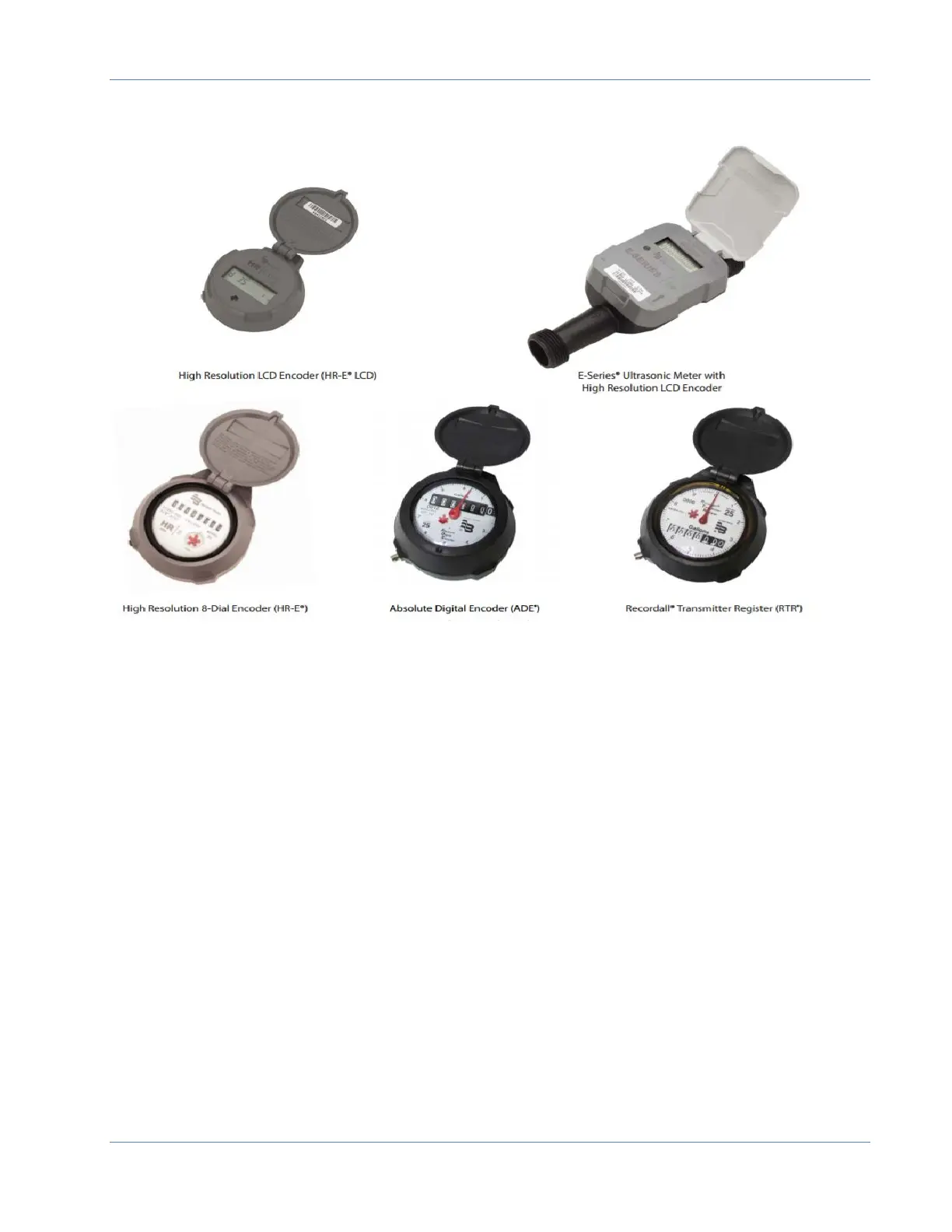

ORION Hardware Basics - Encoders
Each Badger Meter encoder is identified on the face of the register with an assembly
number, unit of measure and meter model.
To convert an endpoint field reading into billing units, BEACON software uses a register
resolution to identify the appropriate reading resolution to be applied to the endpoint meter
reading. The register resolution for high resolution encoders is based on the meter model
and size, encoder type, unit of measure, and the Badger Meter endpoint that is attached to
the encoder. BEACON then applies an additional multiplier to the reading to get the
reading to the correct billing resolution. For additional information, contact Badger Meter
Technical Support.
Read Resolution/Test Circle Codes
Considerations:
• Meter Size
• Meter Type
• Encoder/Register
• Number of Active Dials
• Unit of Measurement
