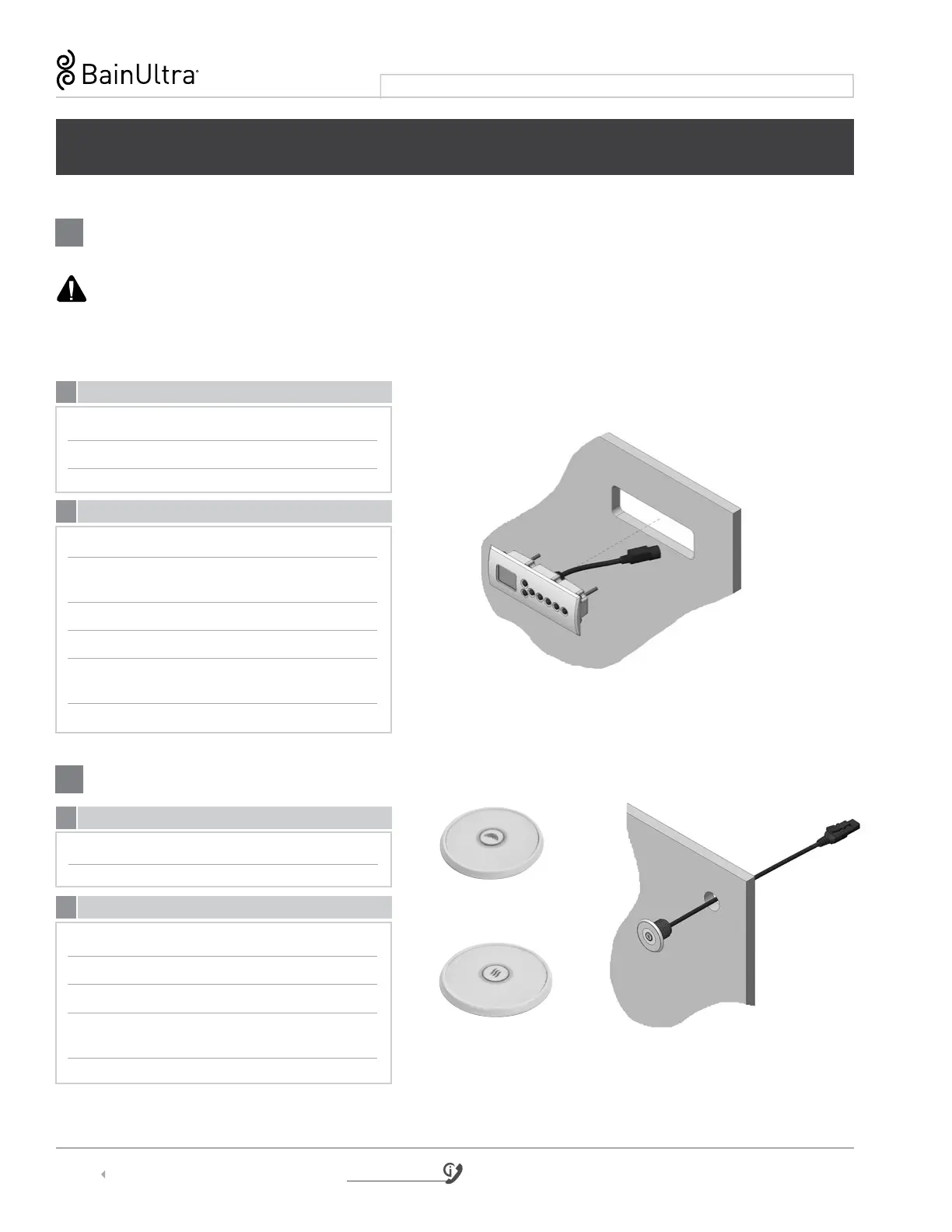

LIBRA COLLECTION | INSTALLATION INSTRUCTIONS
ELECTRONIC CONTROLS
1
ELECTRONIC CONTROL INSTALLATION – MIAPLUS
®
2
ELECTRONIC CONTROL INSTALLATION – DOT
Jig saw with ne cut blade
Drill
1/4 in. drill bit
TOOLS REQUIRED
KEYPAD INSTALLATION
LOCATION: Determinethemostconvenientlocation,onthewallclosetotub.
WARNING
• Libra freestanding bath cannot be drilled for control installation.
DRILLING OF WALL: Refer to the Cutting Template on page 24
for the location and diameter of the holes.
IMPORTANT
• You will nd the control attached to the turbine,
or to the electronic control modules.
7/8 in. Hole saw
Drill
DOT Chromatherapy (LED)
DOT WarmTouchShell
®
(WTS)
TOOLS REQUIRED
Drill wall (7/8” hole).
Push wiring through drilled holes.
Remove protective lm from watertight seal.
Secure to the wall with permanent waterproof
sealant (mold-free clear silicone for bathrooms).
Secure temporarily with a tape for about 24 h.
KEYPAD INSTALLATION
WALL INSTALLATION
WALL INSTALLATION
Drill wall (template).
Remove the metal bracket not required
for wall mounting
Push wiring through drilled holes.
Remove protective lm from watertight seal.
Secure to the wall with permanent waterproof
sealant (mold-free clear silicone for bathrooms).
Secure temporarily with a tape for about 24 h.
