BainUltra LIBRA 6632 - Electrical Section; Electrical Connections for Remote Mounting of Turbine and Therapies

21
www.bainultra.com
Some products, specications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
INSTALLATION INSTRUCTIONS | LIBRA COLLECTION
ELECTRICAL SECTION
1
ELECTRICAL CONNECTIONS FOR REMOTE MOUNTING OF TURBINE AND THERAPIES
• See page 23 for electrical diagram
WARNING
• All electrical connections must be carried out by a certied electrician and must respect federal, provincial/state,
and local building codes and regulations.
• Electrical power should be turned on only after all the low voltage wires are connected to turbine.
• If this step has not been done, simply disconnect main breaker that is linked to turbine.
• Turbine must be located in a clean and dry space.
• Geysair component cannot be remote mounted. Must never be unplugged.

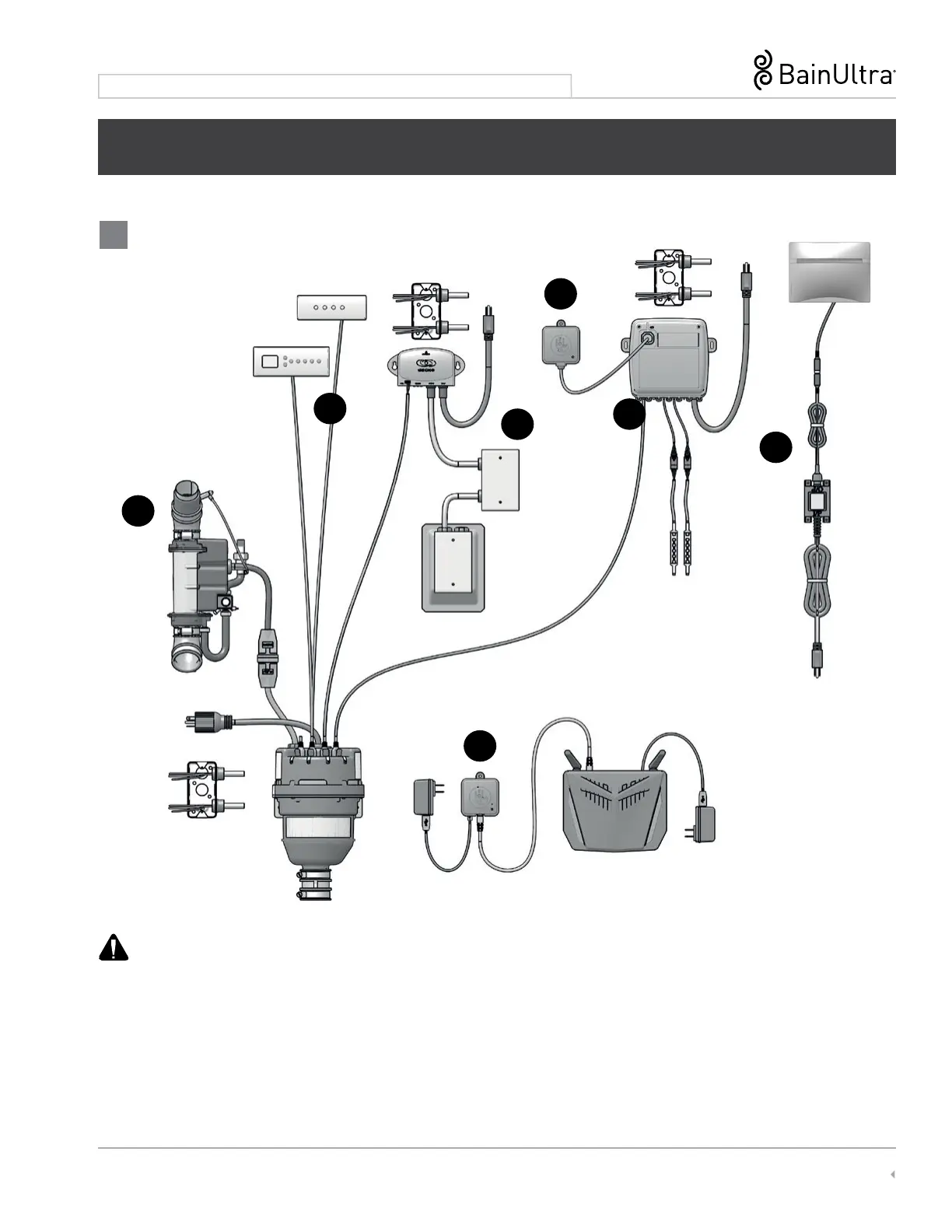

A: Geysair
B: Mia / MiaPlus
C: WarmTouchShell (WTS)
D: Chromatherapy
E: BU-Touch*
F : AromaFlow
TM
A
B
C
E
E
D
Router (not provided)
NOTE:Connectionsmaydifferdependingonthebathmodelandoptions.
* BU-Touch is a virtual control application that activates all the options of the ThermoMasseur Air jets bath from your mobile device.
Please refer to BU-TOUCH Quick Start Guide: www.bainultra.com/butouch-guide
