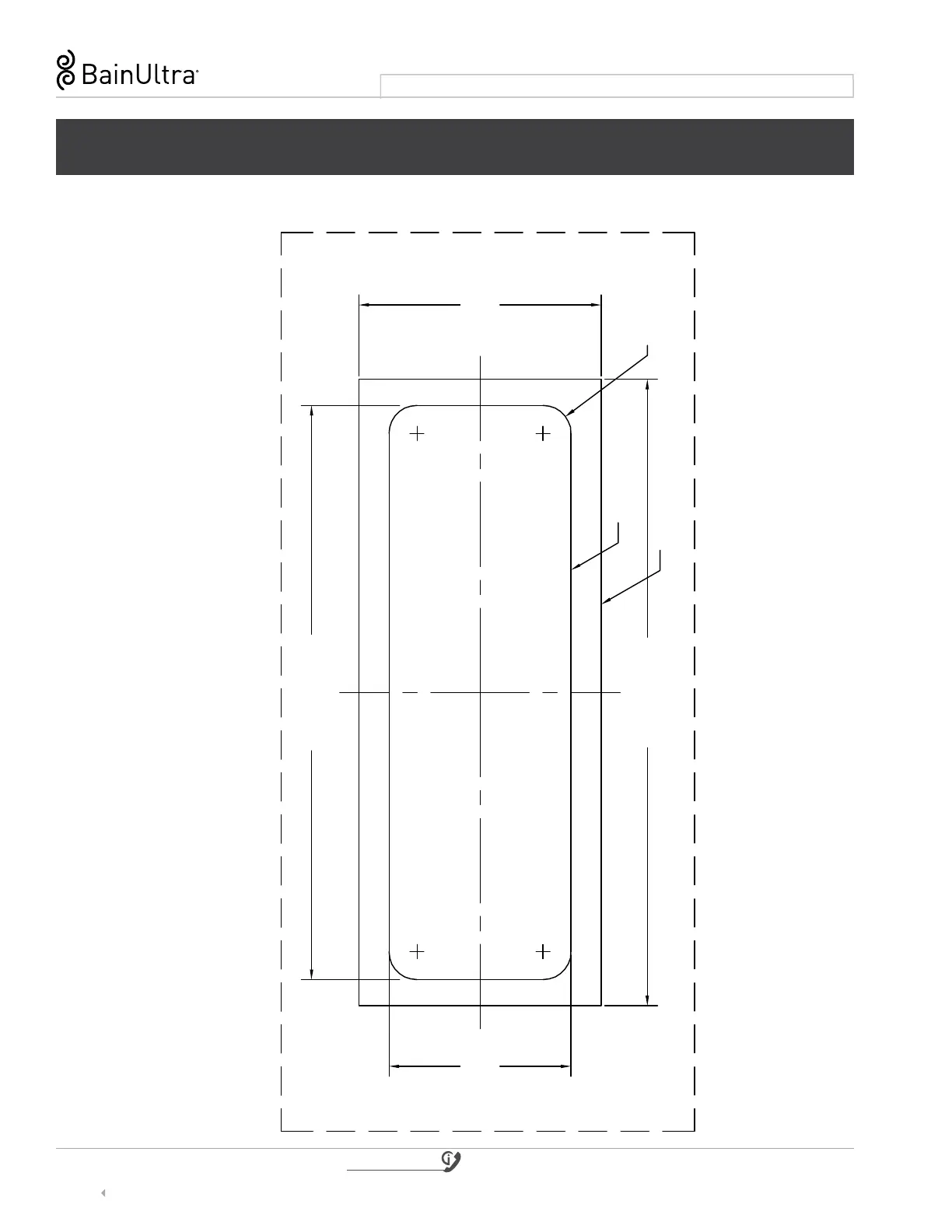

LIBRA COLLECTION | DRILLING TEMPLATE
CUTTING TEMPLATE OF MIAPLUS
®
CONTROL
FOR WALL INSTALLATION
11.313"
[28.7 cm]
1.063"
[2.7 cm]
R0.125"
[R0.3 cm]
0.813"
[2.1 cm]
11.063"
[28.1 cm]
1.625"±0.04"
[4.1 cm±0.1 cm]
5.125"±0.04"
[13.0 cm±0.1 cm]
R0.250"
[R0.6 cm]
5.591" [14.2 cm]
Control cut-out
Trou du contrôle
Control outline Contour du contrôle
2.165"
[5.5 cm]
AIR INTAKE - OPENING
PRISE D'AIR - OUVERTURE
MIAPLUS


