INSTALLATION INSTRUCTIONS | LIBRA COLLECTION
ELECTRICAL SECTION
3

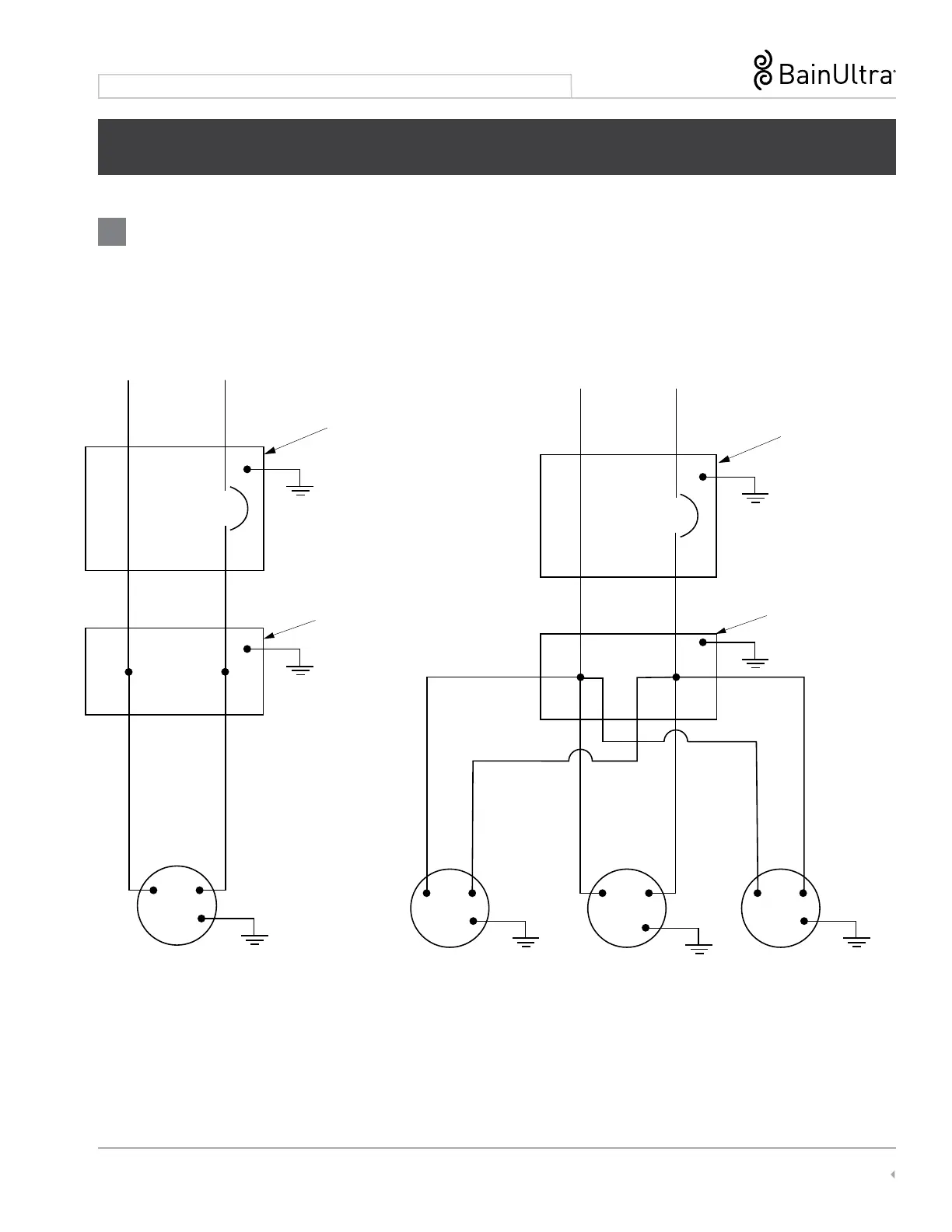

ELECTRICAL DIAGRAM – 20A THERMOMASSEUR
®
and 15A THERAPY
15A CIRCUIT
20A CIRCUIT
NEUTRAL N L LOAD
NEUTRAL N L LOAD
GROUND
FAULT CIRCUIT
INTERRUPTERS
GROUND
FAULT CIRCUIT
INTERRUPTERS
JUNCTION
BOX
JUNCTION
BOX
TURBINE WITH GEYSAIR
(FOR MIAPLUS
®
)
TURBINE WITHOUT GEYSAIR
(FOR MIAPLUS
®
)
N L
N L
15A CIRCUIT
LITESTREME
(WARMTOUCHSHELL
®
)
N L N L
NEUTRAL N L LOAD
INMIX MODULE
(CHROMATHERAPY)
GROUND
FAULT CIRCUIT
INTERRUPTERS
JUNCTION
BOX
N L
AROMACLOUD
®
/ AROMAFLOW
(AROMATHERAPY)
