LIBRA COLLECTION | INSTALLATION INSTRUCTIONS

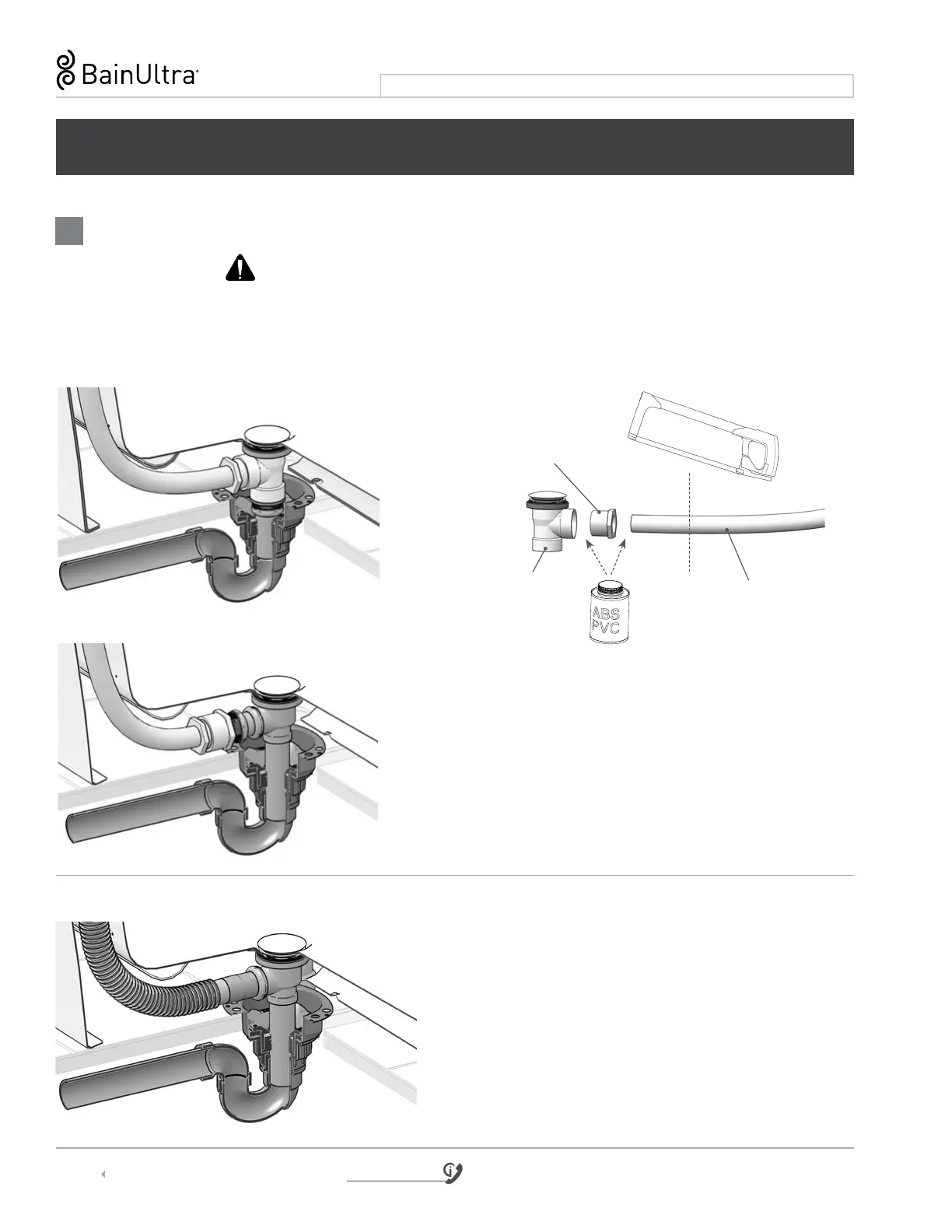

INSTALLATION WITHOUT ACCESS UNDER THE FLOOR
NOTE
• Refer to supplied instructions for Island Tub Drain (ITD) installation.
• The oor nishing material can go over the red center piece of the ITD. The red center piece
connects to the brass tailpiece.
PVC DRAIN
PVC & BRASS DRAIN
BRASS DRAIN
B-2B-2
B-1B-1
B-3B-3
B-4B-4
B-5B-5
Overow pipe
PVC Connector
PVC Drain
NOTE: If necessary, cut the overow pipe to
the desired length, and glue it to the
PVC connector and to the drain.
1
PLUMBING - ISLAND TUB DRAIN (ITD) INSTALLATION
