Fuel level
Filler neck
FUEL VALVE

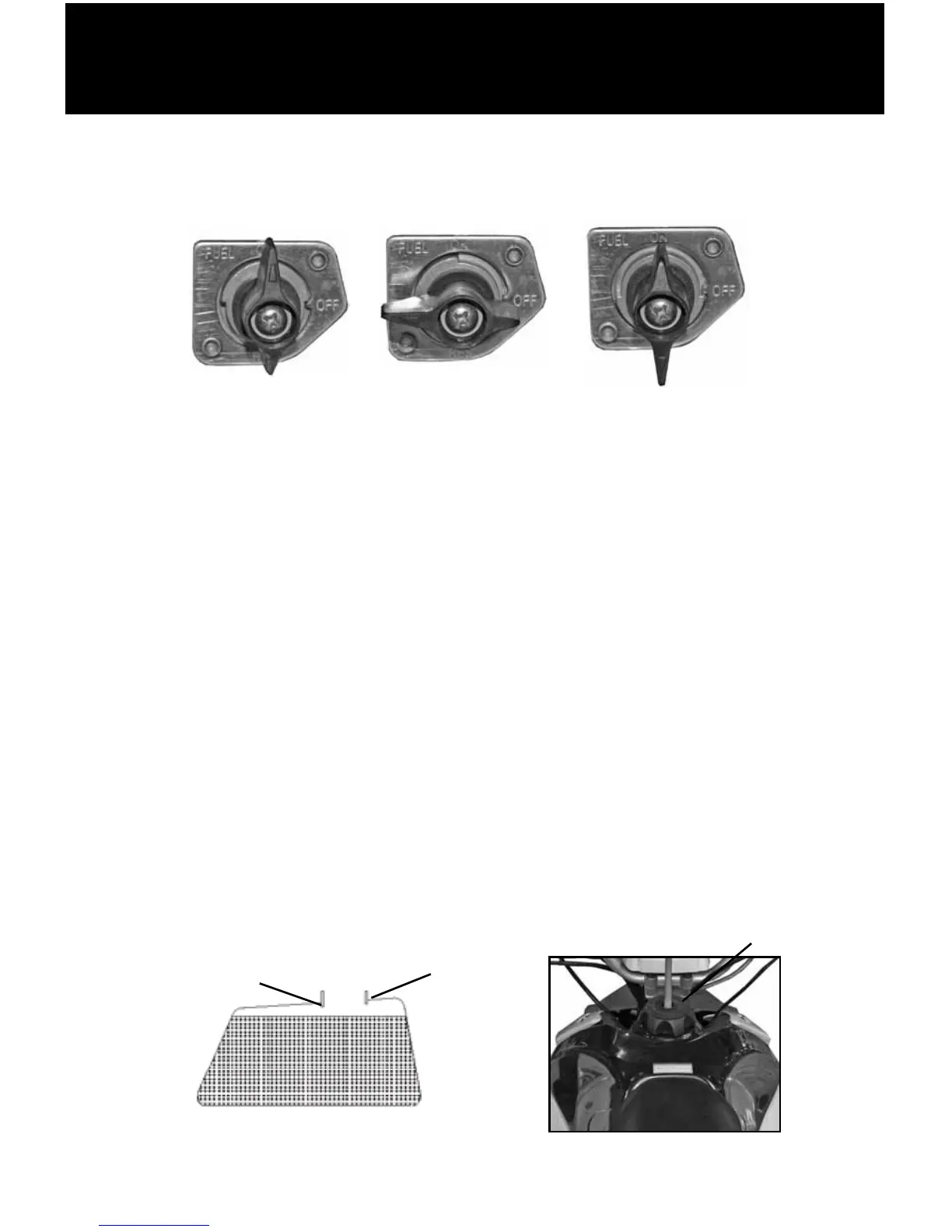

This vehicle has one manually operated fuel valve. There are 3 positions
“ON” “OFF” “RESERVE”
“ON” position
In this position, fuel is allowed to ow into the carburetor when the
engine is running or being started.
“OFF” position
In this position the fuel is shut off from the carburetor. The fuel valve
needs to be placed in this position when the ATV is not in use
“RESERVE” position
If the fuel level in the fuel tank becomes to low for the engine to stay
running while the fuel valve is in the “ON” position, turn the fuel valve
to “RESERVE”. This will allow the engine to begin using the reserve
fuel supply. You will need to re-fuel as soon as possible. Once
re-fueled, turn fuel valve back to “ON “ Position
FUEL TANK CAP
To open the fuel tank cap, turn fuel tank cap counterclockwise.
To close fuel tank cap, turn it clockwise and close it securely. Be
sure vent tube securely connects to cap as shown.
CONTROL FUNCTIONS
Gas Cap
