REAR HYDRAULIC DISC BRAKE INSPECTION
WARNING
Failing to maintain the brake shoes or pads could be hazardous.
Riding with worn brake shoes, pads, or shoes that are seriously worn, will
increase your chance of having an accident.
If you need to replace brake shoe pads, have your authorized service
center do the work. Inspecting and maintaining the brake shoe pads is
recommended. Replace the shoe pads in sets.
1. Inspect the rear disk brake caliper for leakage. If brake uid leaks, the
safety of riding could be affected.
2. Inspect the brake hose for cracks, and the joint for leakage.
3. Check the brake uid level in the brake uid reservoir, if level is low
inspect brake pads for wear and hydraulic system for leaks.
4. To add brake uid, remove top of the bake uid container. Add DOT3 or
DOT4 brake uid. Do not mix brake uid types.
Min.
Max

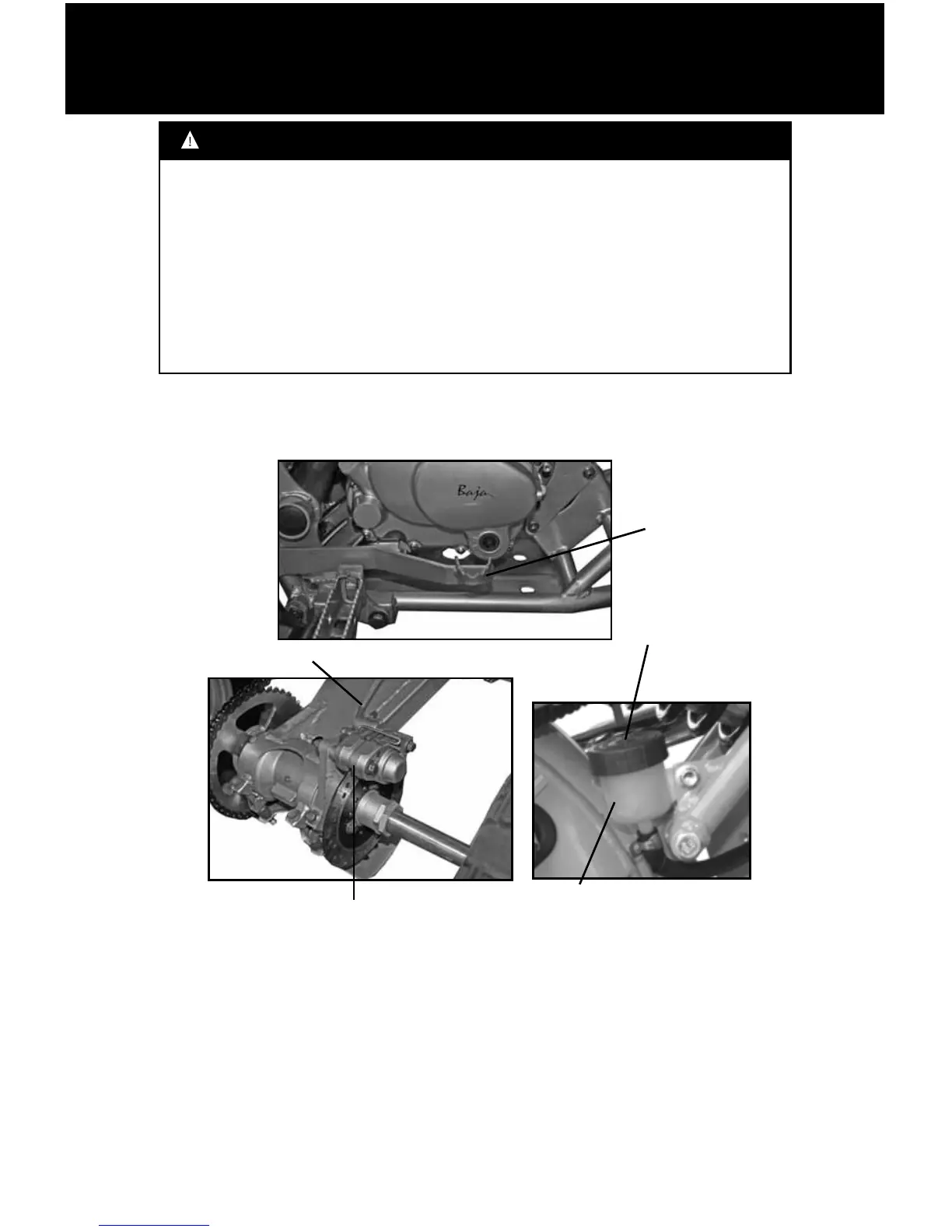

Rear disk caliper
Brake hose
Rear brake uid
reservoir
Brake uid
reservoir cap
Rear foot brake
located on right
side of ATV
