D
CBS Working :
• When front brake lever is pressed, then only front brake will get applied.
• When Rear brake pedal is pressed then both Rear and Front brake are applied, however it is
recommended to use both brakes simultaneously for best braking performance

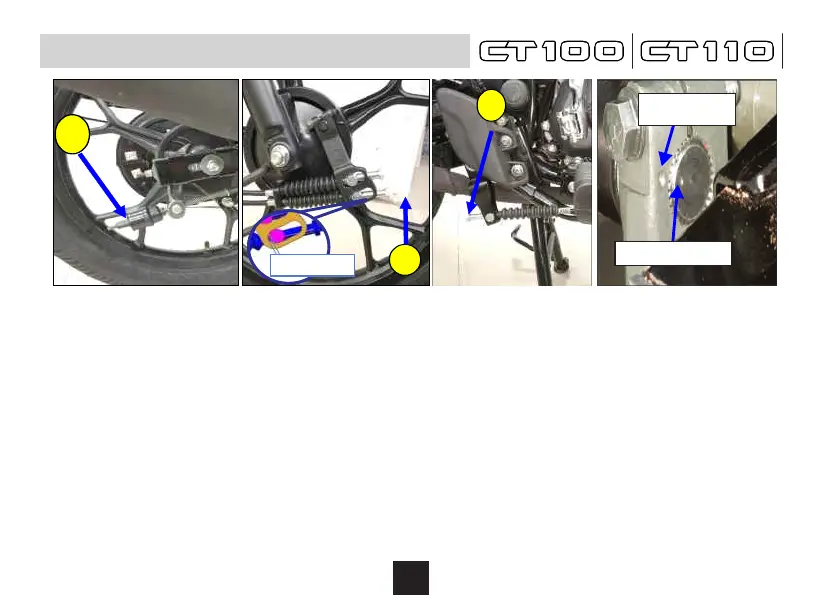

Brake setting guideline in case rear wheel puncture and repair done at road side garage.
• Adjust rear brake free play by tightening force distribution unit ‘A’ (Similar procedure followed
for Non CBS vehicle). After adjustment ensure gap between CBS front brake cable 2 (B) sleeve
& cam lever slot (Distance C) and do not over tighten adjuster nut (D).
• It is recommended to do setting as per guideline mentioned at authorised dealership after rear /
front wheel puncture, rear / front brake shoe replacement, CBS cable replacement, higher brake
free play at rear / front, chain play adjustment, tyre refitting, etc.
• While fitment of lever brake cam, match dot mark of Lever brake cam with brake cam dot mark as
shown in fig (E).
Combined Braking system (CBS)
23
A
B
Distance ‘C’
(should be 0-1 mm)
Lever brake cam
dot mark
Brake cam dot mark
