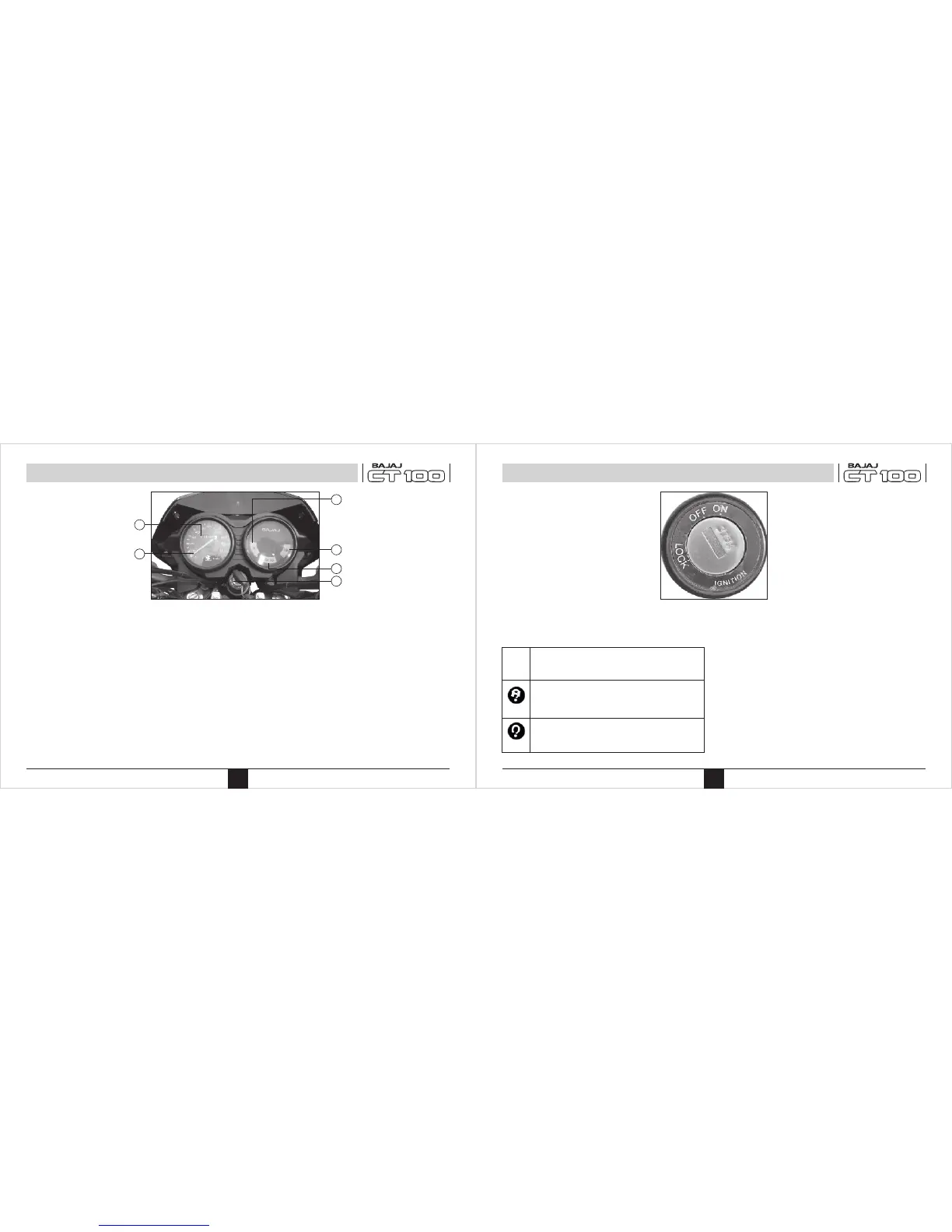

Location of Parts
3
1. Speedometer :
The Speedometer pointer shows the speed
of vehicle.
2. Odometer :
The Odometer shows the total distance
that the vehicle has accumulated.
3. Neutral Indicator :
When the transmission is in Neutral and
Ignition switch ‘ON’, the Neutral indicator
is lit. (Symbol is visible under lit condition).
4. Hi Beam Indicator :
When Headlight is ‘ON’ and Hi beam is
4
1
2
5
6
3
selected with engine running, Hi beam
indicator will be lit. (Symbol is visible under
lit condition).
5. Turn Signal Indicator (LH & RH) :
When Turn signal switch is turned to Left
or Right, Turn pilot indicator will flash.
(Symbol is visible under lit condition).
6. Steering Lock cum Ignition Switch :
Key operated switch for Ignition ON/OFF
& locking handle bar.
Location of Parts
Steering cum Ignition Lock :
It has three positions.
To Lock the Steering : To lock the steering,
turn the handle bar to the left or right. Push
& release the key. Turn the key to “LOCK”
position and remove the key.
To Unlock the Steering : To unlock the
steering, insert the key in steering cum
ignition lock & turn it clockwise to “OFF” or
“ON” position.
Key : A common key is used for ‘Steering
cum Ignition lock’, ‘Fuel tank cap’ and ‘Side
cover lock’.
LOCK : Steering locked. Ignition
OFF.
OFF : Steering unlock. Ignition
OFF.
ON : Steering unlock. Ignition
ON.
4
