Side
Cover
RH
D
B
A
A
B
C
Side
Cover
RH
CAUTION : Fit cover as described
above to ensure proper fitment.

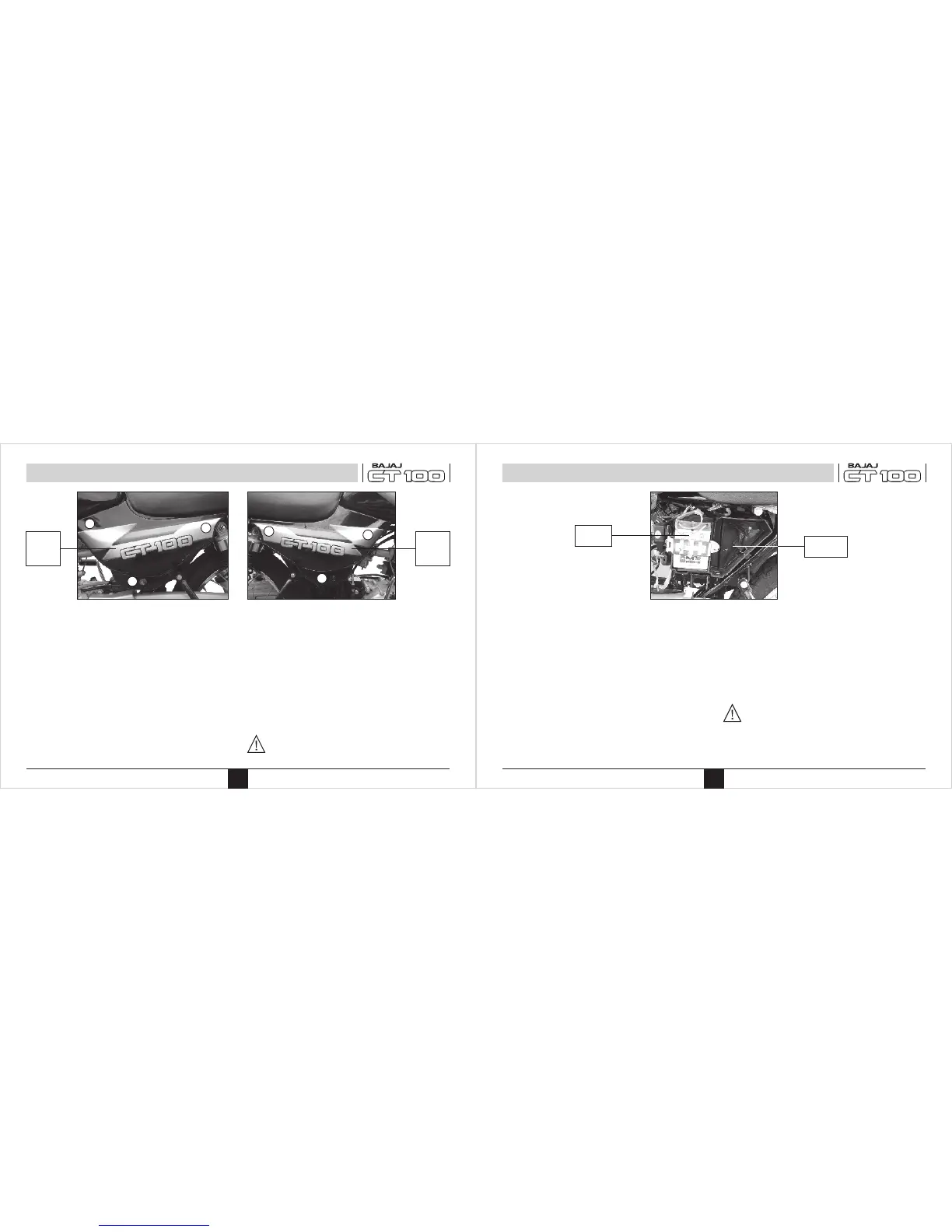

Location of Parts
9
Fitment of Side Cover LH & RH
• Match slot (B) provided on front side of
‘Side Cover’ with bracket provided on
‘F uel Tan k ’ and slid e ‘ Side co ver’
backward (towards Tail lamp).
• Match Lug (A) provided on rear side of
‘Side cover’ with hole provided on ‘Frame’
and press ‘Side cover’ inside.
• Match the lock plate of ‘Side cover’
properly with bracket on ‘Chassis’ and
Lock. (For ‘Side cover’ LH).
• F o r ‘ Sid e c o ve r ’ R H a do p t s am e
procedure and fit the screw (D) properly.
Battery
• It is located inside the ‘Side Cover’ LH.
• Always maintain electrolyte level in each
cell between upper and lower level lines
by adding distilled water.
Tool Kit Location
• It is located below the seat on rear
mudguard.
• A rubber strap is provided to hold the
tool kit.
Location of Parts
10
CAUTION : Always fit rubber strap to
hold the tool kit.
Tool Kit
Battery
To Next Page
