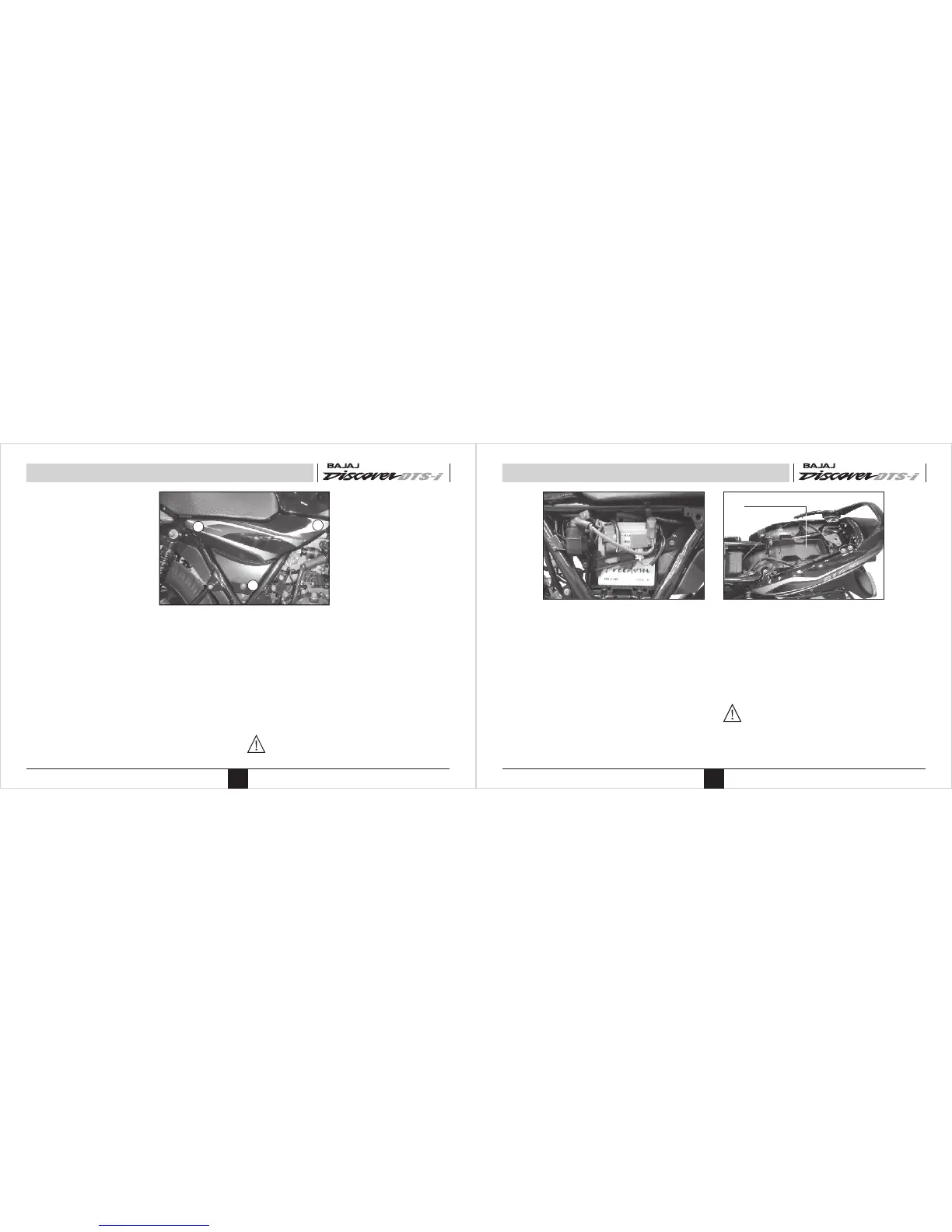

Removal of Side Cover RH
• Remove the screw (A) given on ‘Side
Cover’.
• Hold the cover with both hands and pull
front side first (B) & rear side later (C).
Take out ‘Side cover’.
Fitment of Side Cover RH
• Match rear side (C) of ‘Side Cover’ lug with
hole located on chassis & press the cover.
• Match Lug (B) provided on front side of
‘Side Cover’ with hole provided on ‘Fuel
Tank’ and press ‘Side Cover’ inside.
• Match ‘Side Cover’ properly with bracket
provided on ‘Chassis’ & fix it with screw
(A).
CAUTION : Fit cover as described
above to ensure proper fitment.
A
B
C
Location of Parts
9
Battery
• It is located inside the ‘Side Cover’ LH.
• Always maintain electrolyte level in each
cell between Max and Min level marks.
Tool Kit Location
• It is located below the seat on rear
mudguard.
• A rubber strap is provided to hold the
tool kit.
Tool Kit Location
Make of Battery may differ from vehicle to vehicle
Location of Parts
10
CAUTION : Always fit rubber strap to
hold the tool kit.
