OPERATION

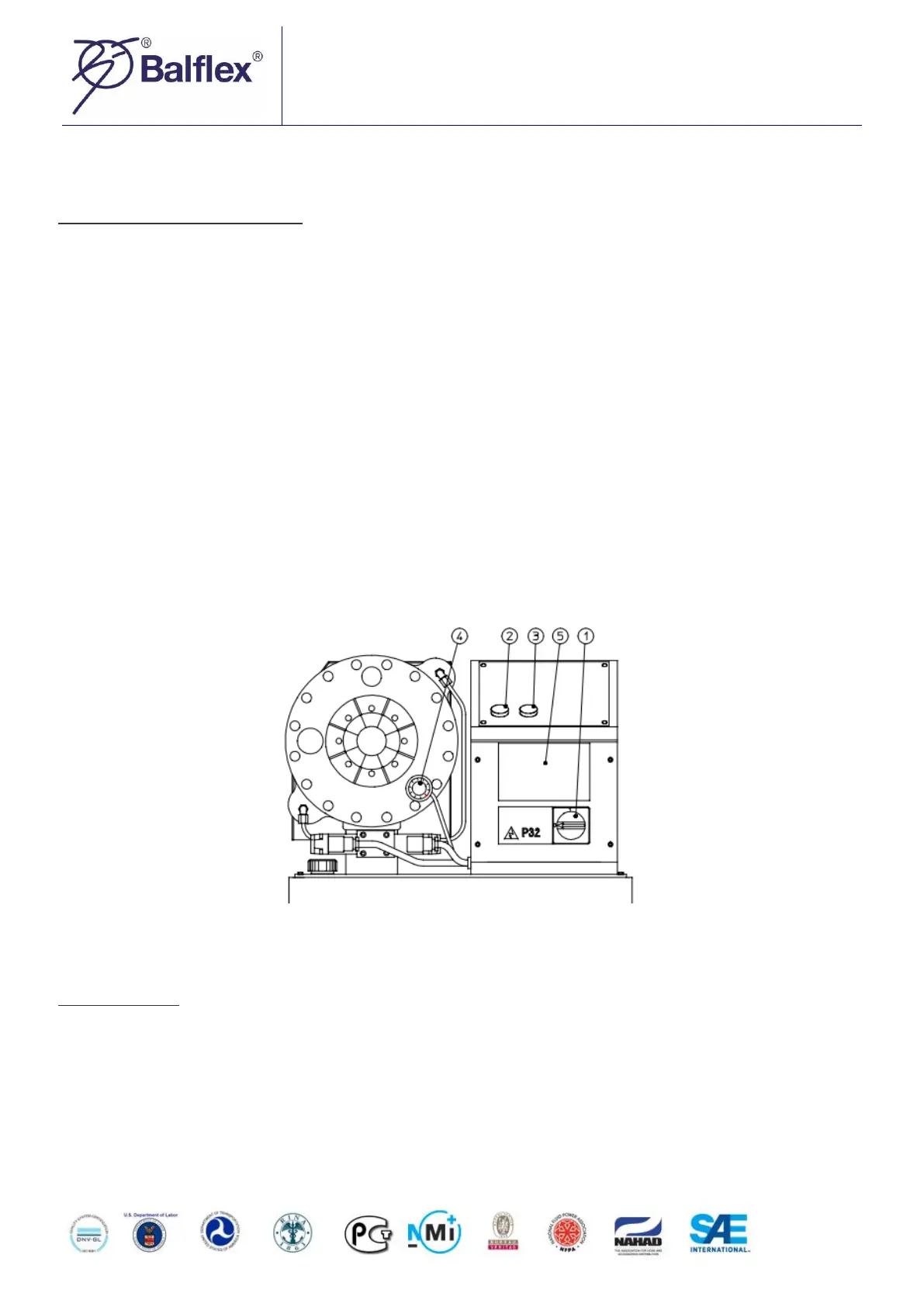

Control identification MS -control
1. Supply disconnecting device for starting and stopping the motor. The device is used to separate the machine from
power supply. However, the under voltage trip can be made dead only by disconnecting the plug or supply cable from
the mains.
2. As long as the crimping push-button is depressed, the dies will close until the button is released or the preset
crimping diameter is reached.
3. Retraction button. When depressed and held down, the dies will open until the button is released or the maximum
retraction is reached.
4. Crimping diameter dial.
5. Die chart with crimping diameter range for each die set and corresponding dial adjustment values.
The main operating area of the machine is in front of the controls.
Steps of Crimping
SEMI-AUTOMATIC CRIMPING
The button starts crimping movement provided that master dies have reached the set retraction position and
semi-automatic mode has been selected.
