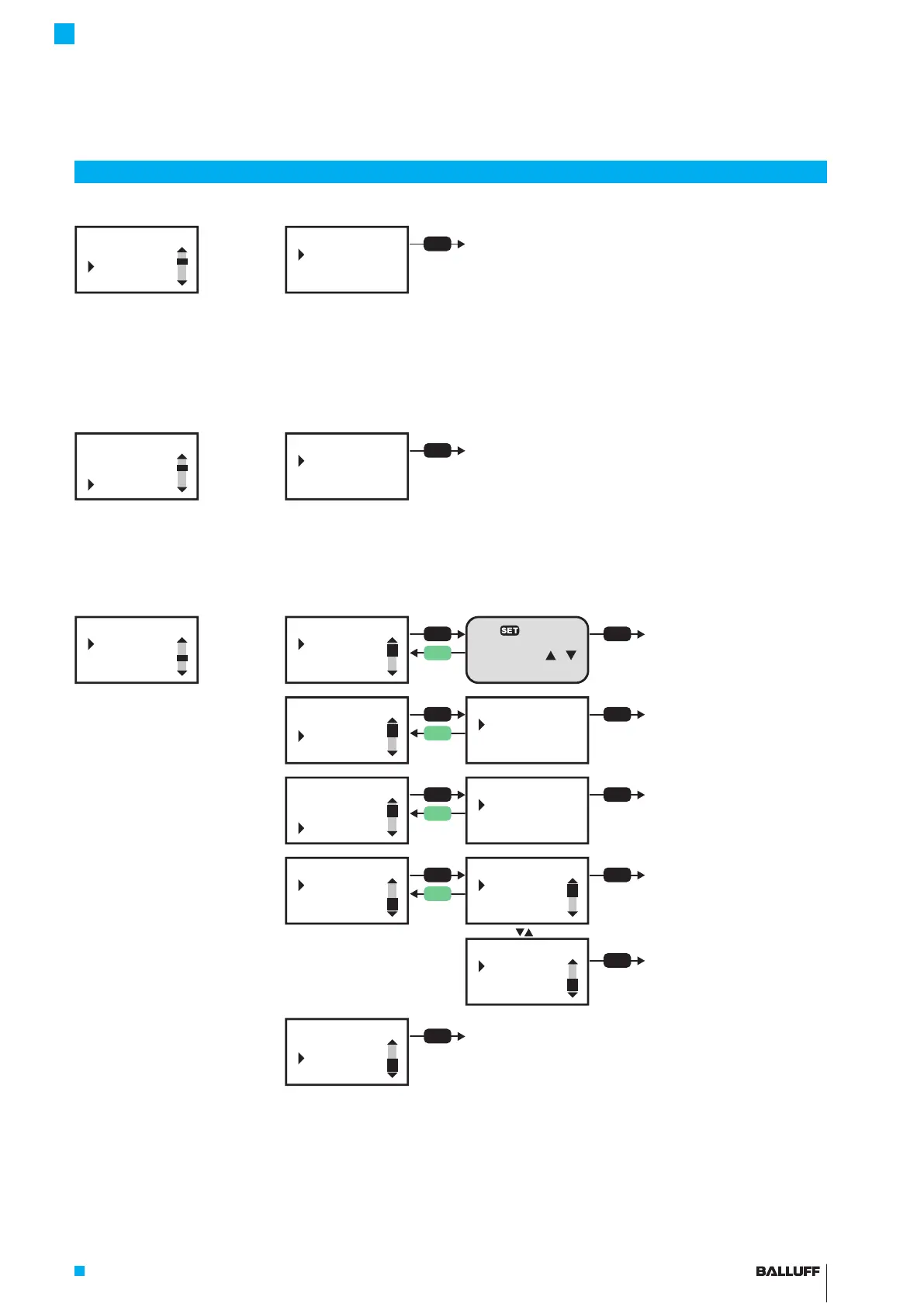

Input functions
Analogue Out
Multifunction in
Average
Main Menu:
Laser Off
Teach IN
485 Send Data
Input:
SET
Save
Select function:
– Laser Off: Switches off the laser transmitter, as long as
24V are applied to the input.
– Teach IN: Records the target distance as a switchpoint, if
more than 24 V are applied for longer than 3 s to the
input.
– 485 Send Data: transmits the data from RS485, as long
as 24V are applied to the input.
Response time
Analogue Out
Multifunction in
Average
Main Menu:
Slow
Medium
Fast
Average:
SET
Save
Select response time:
– Slow (45 ms typ.): high response time/better accuracy
and repeat accuracy (factory setting)
– Medium (30 ms typ.): average response time/average
accuracy and repeat accuracy
– Fast (10 ms typ.): low response time/low accuracy and
repeat accuracy
RS-485
RS-485
Scalabe Out
Factory Reset
Main Menu:
Node N
Node N
Enable
Termination
RS-485:
SET
ESC
SET
>3 s
Save
Enable
Node N
Enable
Termination
RS-485:
SET
ESC
ON
OFF
RS-485 Enable:
SET
Save
Termi-
nation
Node N
Enable
Termination
RS-485:
SET
ESC
ON
OFF
Termination:
SET
Save
Output
mode
Output Mode
Delay
RS-485:
SET
ESC
None
Continous
On cng Distance
Output Mode:
SET
Save
On cng Digital
On cng Input
Output Mode:
SET
Save
Delay
Output Mode
Delay
RS-485:
SET
Not available
Keep
pressed for
longer than 1s and set
a number with
/
(0…254mm)
Configuration (continued)
