Bandit 200UC - Page 94

801/21
MODEL 200 UC REPLACEMENT PARTS

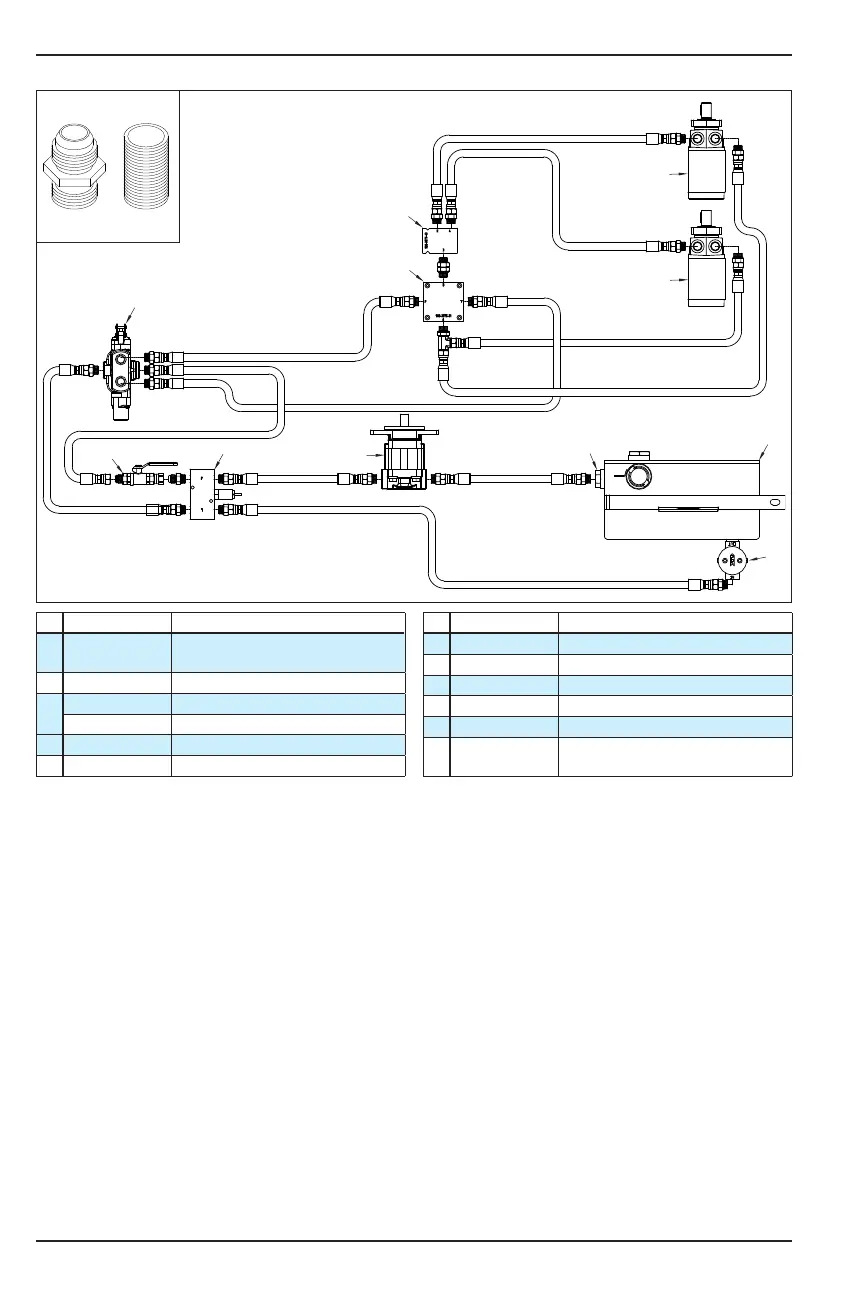

HYDRAULIC SCHEMATIC (Pre 12/17)
# Part Number Description
1
See Pages
88 - 89
Hydraulic Tank
2
900-3901-41 Hydraulic Tank Strainer
3
900-3900-09 Filter Head
900-3900-10 Filter
4
** Hydraulic Pump
5
See Page 83 Relief Block
# Part Number Description
6
See Page 78 In-Line Pressure Check Kit
7
900-3920-05A Feedwheel Control Valve
8
See Page 82 Reversing “Autofeed Plus”
9
See Page 84 Flow Divider
10
900-3972-04 Top Feedwheel Hydraulic Motor
11
900-3972-05
Bottom Feedwheel Hydraulic
Motor
* Hydraulic components, ttings, hoses will vary depending on
optional equipment. Order by physical description.
** Hydraulic pumps need to be ordered by physical description and serial number of machine.
Examples of
straight ttings.
PIPE
FITTING
JIC / SAE
O-RING
9
10
11
4
5
7
1
2
3
6
8
