MODEL 200 UC REPLACEMENT PARTS
Torque Autofeed Cartridge Nut to a maximum of 4 to 6 ft.-lbs. (5 to 8 Nm) and install Loctite 243.
Over torque will cause damage and will also void warranty.

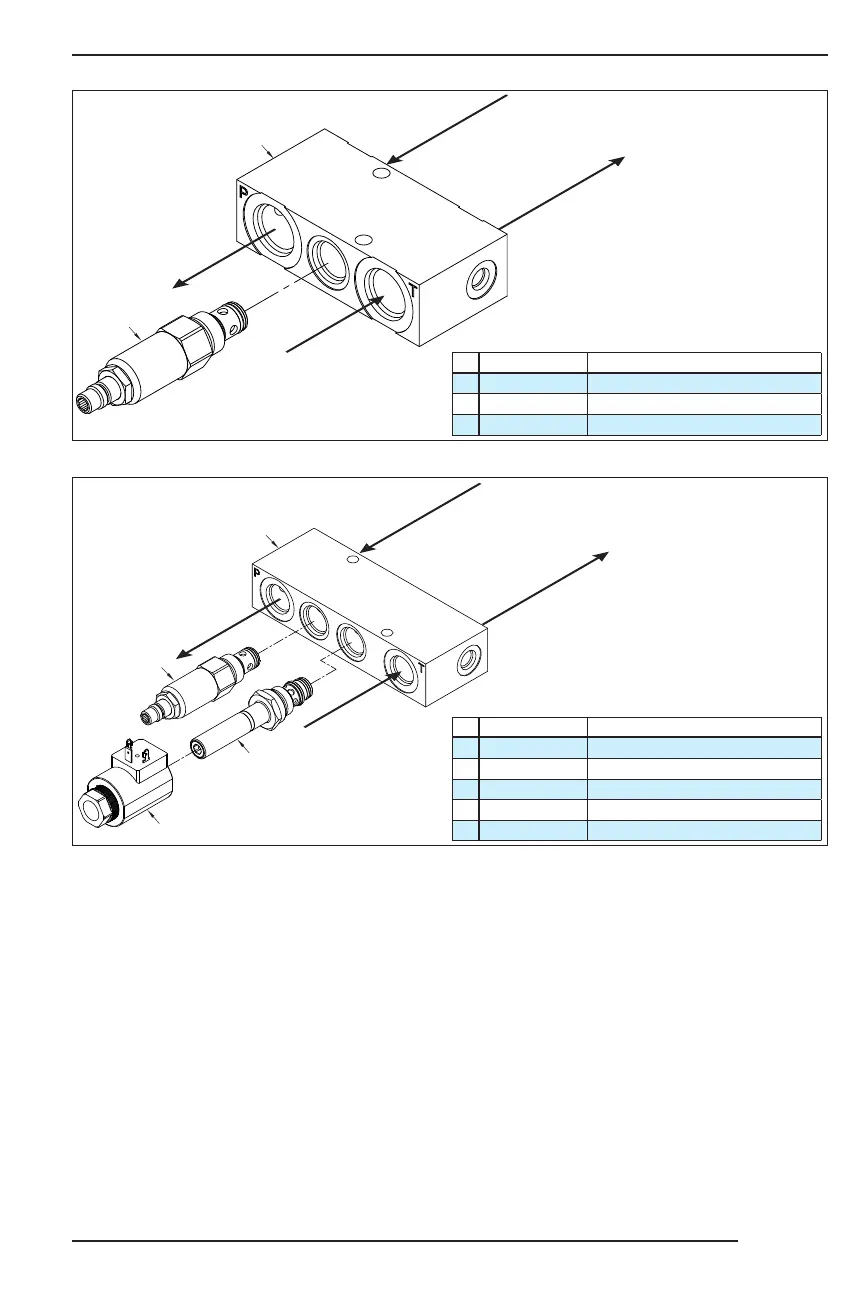

DUMP VALVE RELIEF BLOCK
MAIN RELIEF BLOCK
# Part Number Description
1
N/A Main Relief Block Only
2
900-3919-96 Main Relief Only
3
900-3977-40 Main Relief Block Assembly
# Part Number Description
1
900-3977-38 Dump Valve Block Only
2
900-3947-37 Autofeed Solenoid Only
3
900-3947-38 Dump Cartridge Only
4
900-3919-96 Main Relief Only
5
500-0000-77 Dump Block Assembly w/ Relief
HYDRAULIC HOSE
FROM PUMP
HYDRAULIC HOSE
FROM PUMP
HYDRAULIC HOSE
TO TANK
HYDRAULIC HOSE
TO TANK
1
2
1
4
3
2
