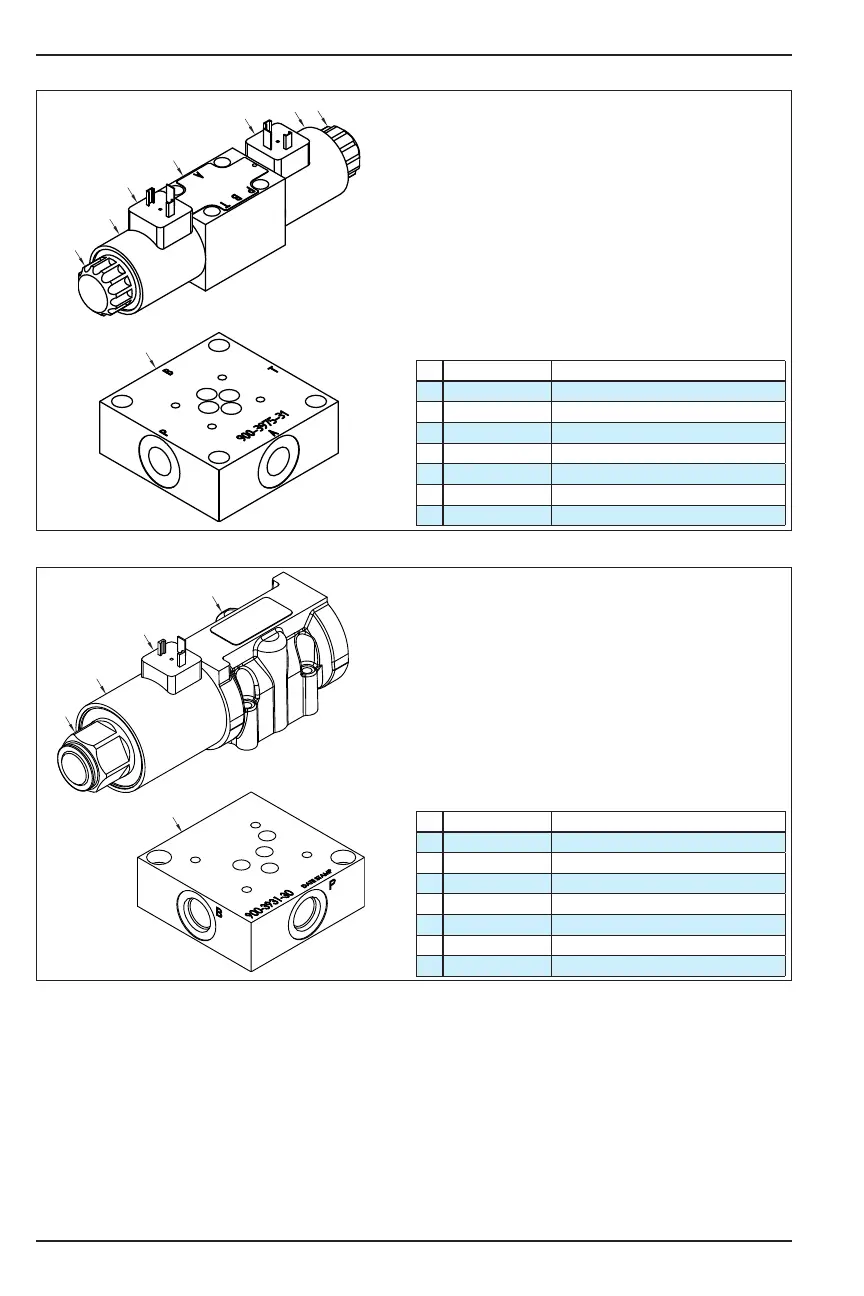

MODEL 200 UC REPLACEMENT PARTS
“AUTOFEED PLUS” VALVE (SINGLE SOLENOID)
“AUTOFEED PLUS” VALVE (DUAL SOLENOID)
Torque Retainer Nut to a maximum of 4 to 6 ft.-lbs. (5 to 8 Nm) and install Loctite 243.
Over torque will cause damage and will also void warranty.
** Refer to check sheet for Autofeed Harness.
# Part Number Description
1
900-3981-51 Retainer Nut & Sealing Ring
2
900-2909-55 Herschman Connector Only
3
900-3983-37 Solenoid Only
4
900-3982-41 Dual Solenoid Assembly
5
900-3975-31 Autofeed Plus Subplate
6
900-3978-26 Seal Kit for Valve
7
** Autofeed Harness
# Part Number Description
1
900-3920-20 Retainer Nut & Sealing Ring
2
900-3931-76 Herschman Connector Only
3
900-3983-36 Solenoid Only
4
900-3982-42 Solenoid Assembly
5
900-3931-30 Autofeed Plus Subplate
6
900-3967-44 Seal Kit for Valve
7
** Autofeed Harness
