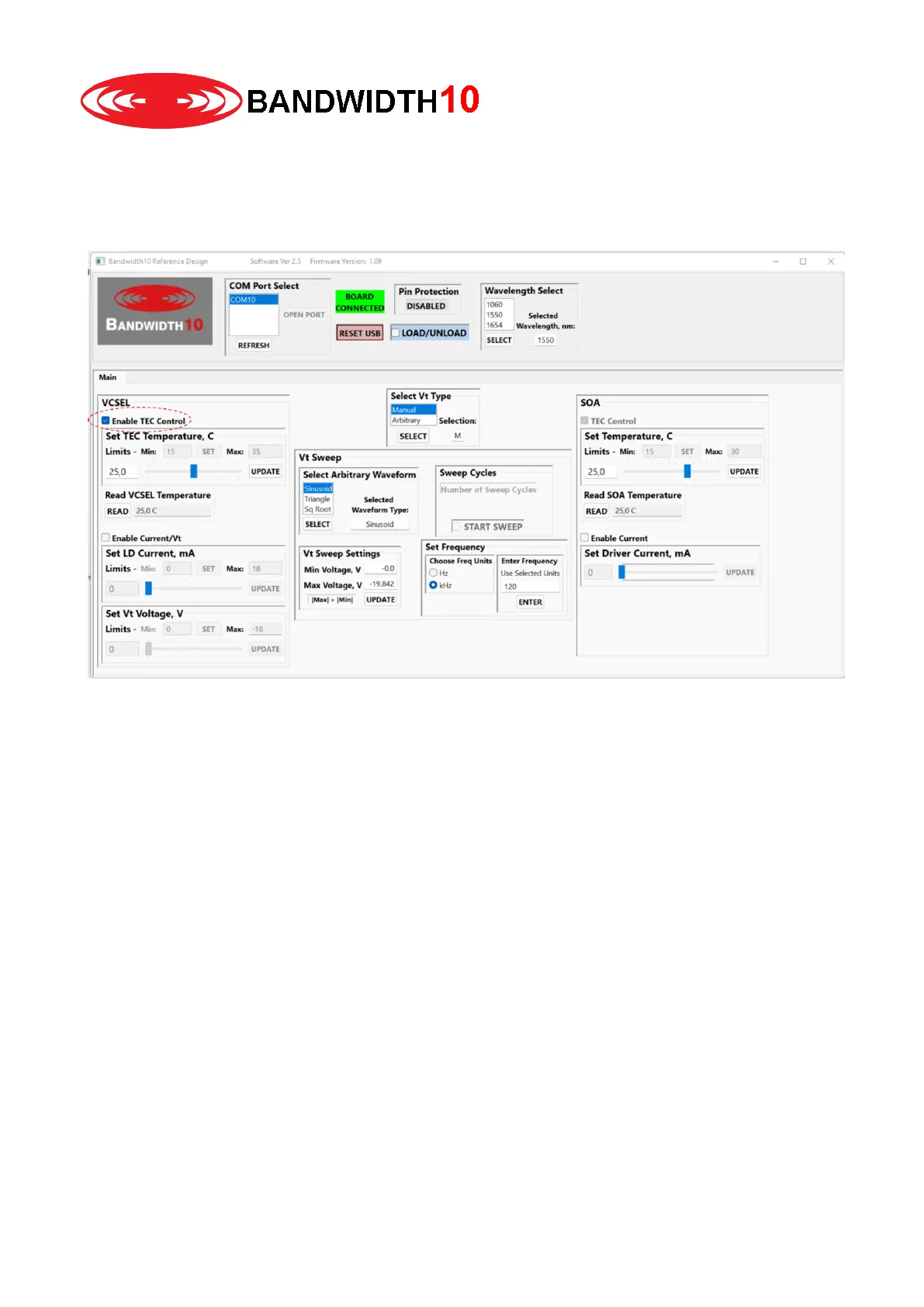

5. Now insert the laser into the fixture. Use the clamp mechanism to fix the TOSA with the fixture and
ensure a good thermal connection. Once the laser is inserted uncheck the load / unload box. GUI will
disable the pin protection. Next you can enable the VCSEL TEC controller. Note that the VCSEL and
SOA TEC controller are enabled with the same circuit.
