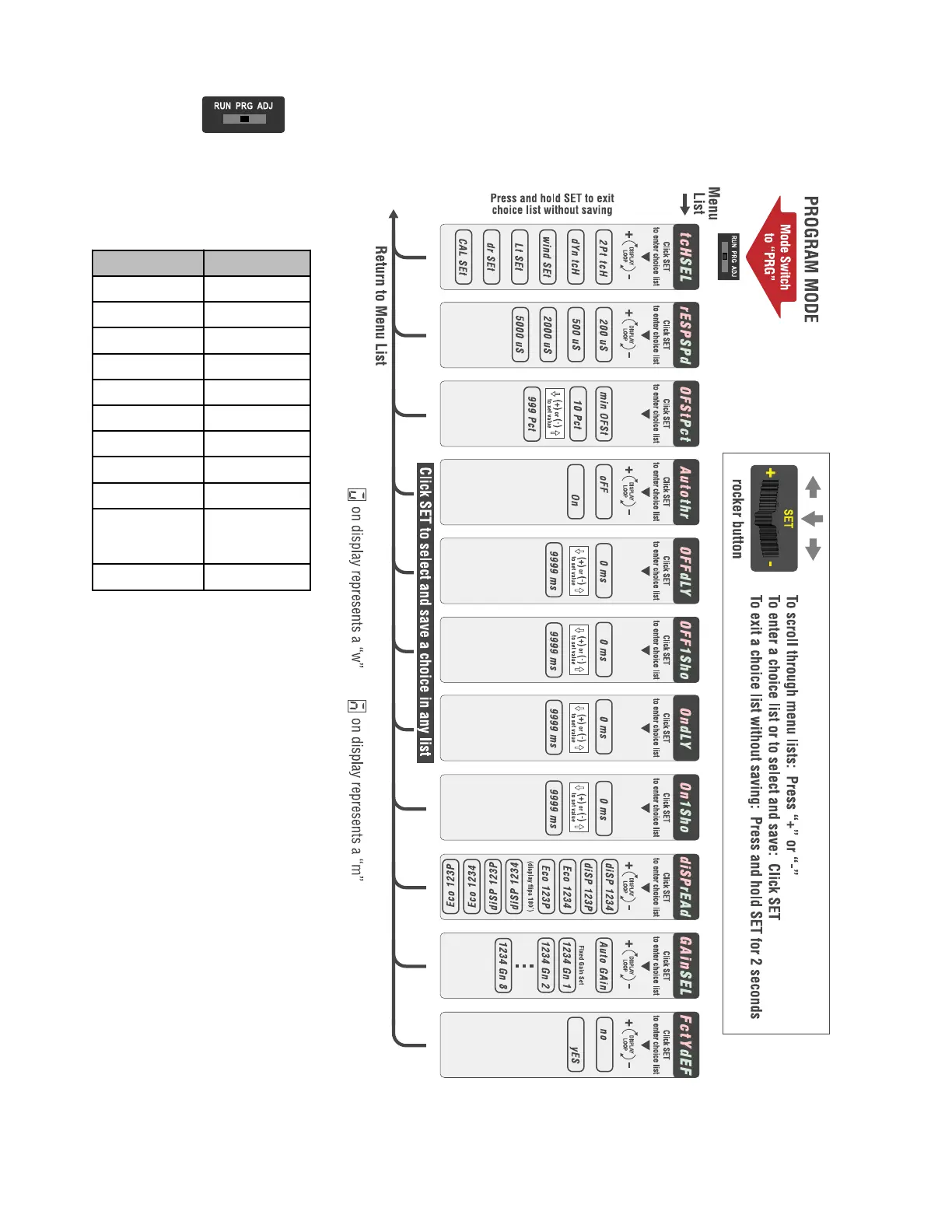

Program Mode
Program (PRG) mode allows the following set-
tings to be programmed in the DF-G1 :
Factory Default Settings:
Setting Factory Default
Threshold 2026
TEACH Selection Two-Point TEACH
Response Speed Standard - 500 us
Offset Percent 10%
Auto Thresholds OFF
OFF Delay 0 (Disabled)
OFF One-Shot 0 (Disabled)
ON Delay 0 (Disabled)
ON One-Shot 0 (Disabled)
Display Readout Numeric, ECO disa-
bled, Normal Orien-
tation
Gain Selection Auto Gain
DF-G1 - Expert Fiber Amplifier Install Sheet
P/N 161275 Rev. A www.bannerengineering.com - tel: 763-544-3164 3
