D12 Expert Series
page 11

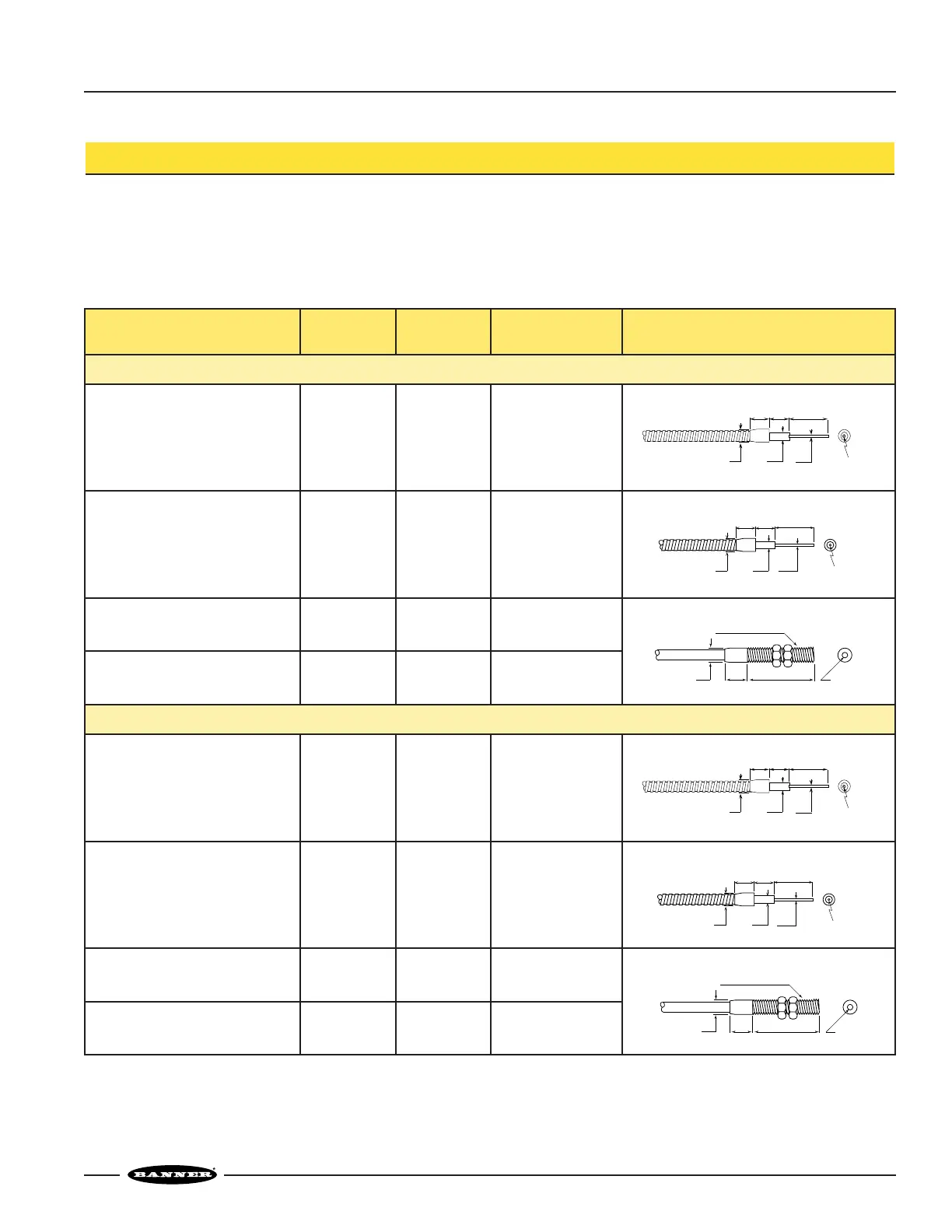

Glass Fiber Assembly
Fiber Diameter
Typical Fiber
Model
Maximum Range*
OPPOSED MODE
1.2 mm (.046") individual pair** IM.753S 295 mm (11.6")
1.6 mm (.062") individual pair** IT13S 442 mm (17.4")
3.2 mm (.125") individual pair** IT23S 930 mm (36.6")
DIFFUSE MODE (Based on a 90% reflectance white test card)
0.7 mm (.027") bifurcated BMM.443P 15 mm (0.6")
The following charts list all the fiber sizes that can be used with these sensors. Typical
fiber models (one for each size and type) are indicated, along with the maximum
range for each (expect less range for fiber assemblies with angled sensing ends). For
a complete selection of fibers in these sizes and for more information see your
current Banner Photoelectric Sensors Catalog.
Qty. Required
for Each Unit
2
2
2
1
0.7 mm (.027") individual pair** IMM.443S 107 mm (4.2")2
1.2 mm (.046") bifurcated BM.753S 46 mm (1.8")
1.6 mm (.062") bifurcated BT13S 68 mm (2.7")
1
1
3.2 mm (.125") bifurcated BT23S 178 mm (7.0")1
Sensing Tip
(Dimensions in Inches)
Accessories
* Range data is for 0.9 m (3') glass fiber assemblies
** Glass fibers are used in pairs, sold individually – two are required
