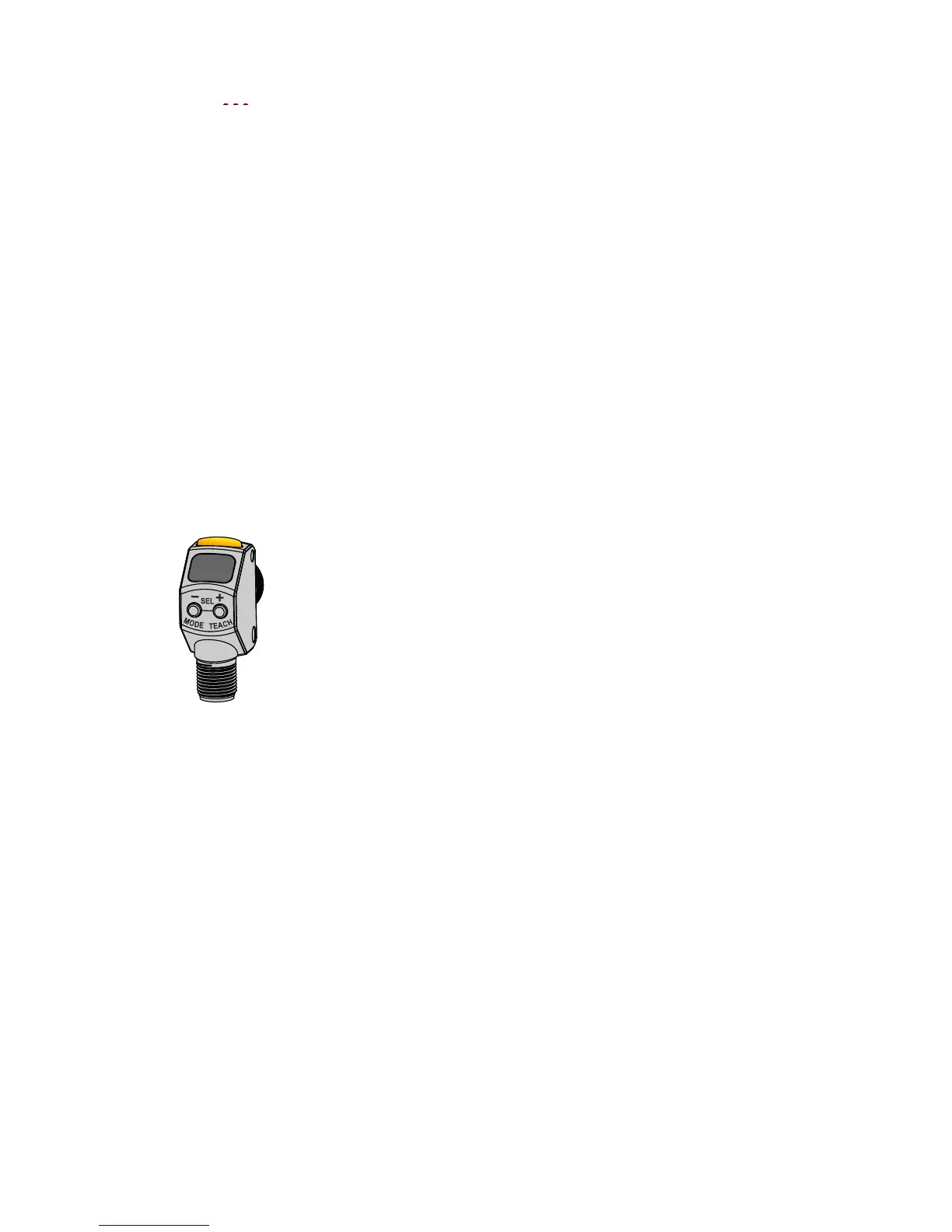

Banner Q3XTBLD-Q8 - Sensor Indicators and Controls; Output, Stability, and Teach Indicators; Button Functions

A displayed value of indicates no light received or a loss of signal.
In Window Set teach mode, the value 100 represents the taught signal strength. The displayed value is the percentage of
the received light divided by the taught signal strength. The output switches at displayed values above and below 100 as
determined by the user-selected window offset percentage.
Output Indicator
• On—Outputs conducting (closed)
• Off—Outputs not conducting (open)
Stability Indicator (STB)
• On—Stable light signal received
• Flashing—Light intensity is within the switching threshold hysteresis band
• Off—No light signal received
Active TEACH Indicators (DYN and WND)
• DYN and WND off—Two-Point Static , Light Set, or Dark Set TEACH mode selected (Two-Point Static TEACH is the
default).
• DYN and/or WND flashing—The sensor is in TEACH mode.
• DYN on—Dynamic TEACH mode selected
• WND on—Symmetric Window thresholds are active. The switch points are above and below 100 by the offset
percentage
Buttons
Use the sensor buttons (-)(MODE) and (+)(TEACH) to program the sensor.
See Sensor Programming on page 4 for programming instructions.
(-)(MODE)
• Decrease gain: press and release (-)(MODE), then press and hold (-)(MODE) to rapidly decrease gain
• Enter Setup mode: press and hold (-)(MODE) for longer than 2 seconds
• Navigate the sensor menu: press (-)(MODE)
• Change setting values: press and hold (-)(MODE) to decrease numeric values
(+)(TEACH)
• Increase gain: press and release (+)(TEACH), then press and hold (+)(TEACH) to rapidly increase gain
• Start the currently selected TEACH mode: press and hold (+)(TEACH) for longer than 2 seconds (Two-Point Static
TEACH is the default)
• Navigate the sensor menu: press (+)(TEACH)
• Change setting values: press and hold (+)(TEACH) to increase numeric values
(-)(MODE) and (+)(TEACH)
• Select menu items in Setup mode: press (-)(MODE) and (+)(TEACH) simultaneously
• Select and save a parameter and return to Run mode: press (-)(MODE) and (+)(TEACH) simultaneously for
longer than 2 seconds
When navigating the menu systems, the menu items loop.
Q3X Laser Contrast Sensor
