1. Gear assembly
General instructions prior to gear assembly.
All screwings have to be secured with Loctite medium strength threadlock. Please
degrease new screws before use. It is recommended to repeatedly check all thread-
ed joints in order to prevent any screw from becoming loose. In practice, hex screw-
drivers and wrenches of Wera or Wiha have proven to be suitable.

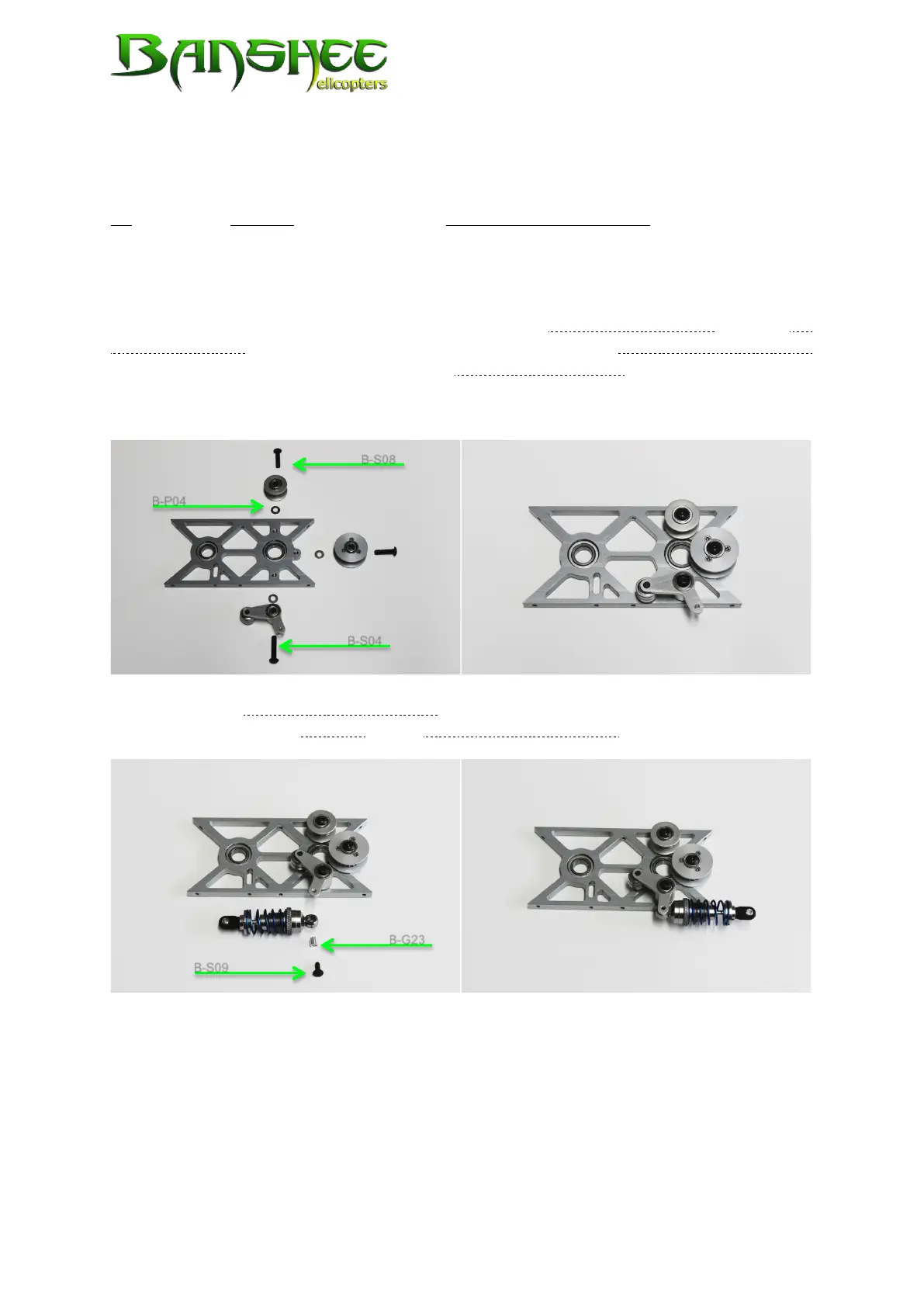

Start with the mechanical gear assembly. Screw the rear belt guide roller and the tail
belt guide pulley with a pan head bolt M4 x 16
(B-S08)
and the rear belt tensioner lever
with a pan head bolt M4 x 20
(B-S04)
to the bottom bearing plate. Place a thrust washer
4x8x0.2
(B-P04)
between each of the bearings and the bearing plate. Please make sure
to position all components as shown in the pictures below.
Then screw the oil filled shock absorber with a pan head bolt with flange M3 x 8
(B-S09)
and the corresponding bushing to the rear belt tensioner lever.
