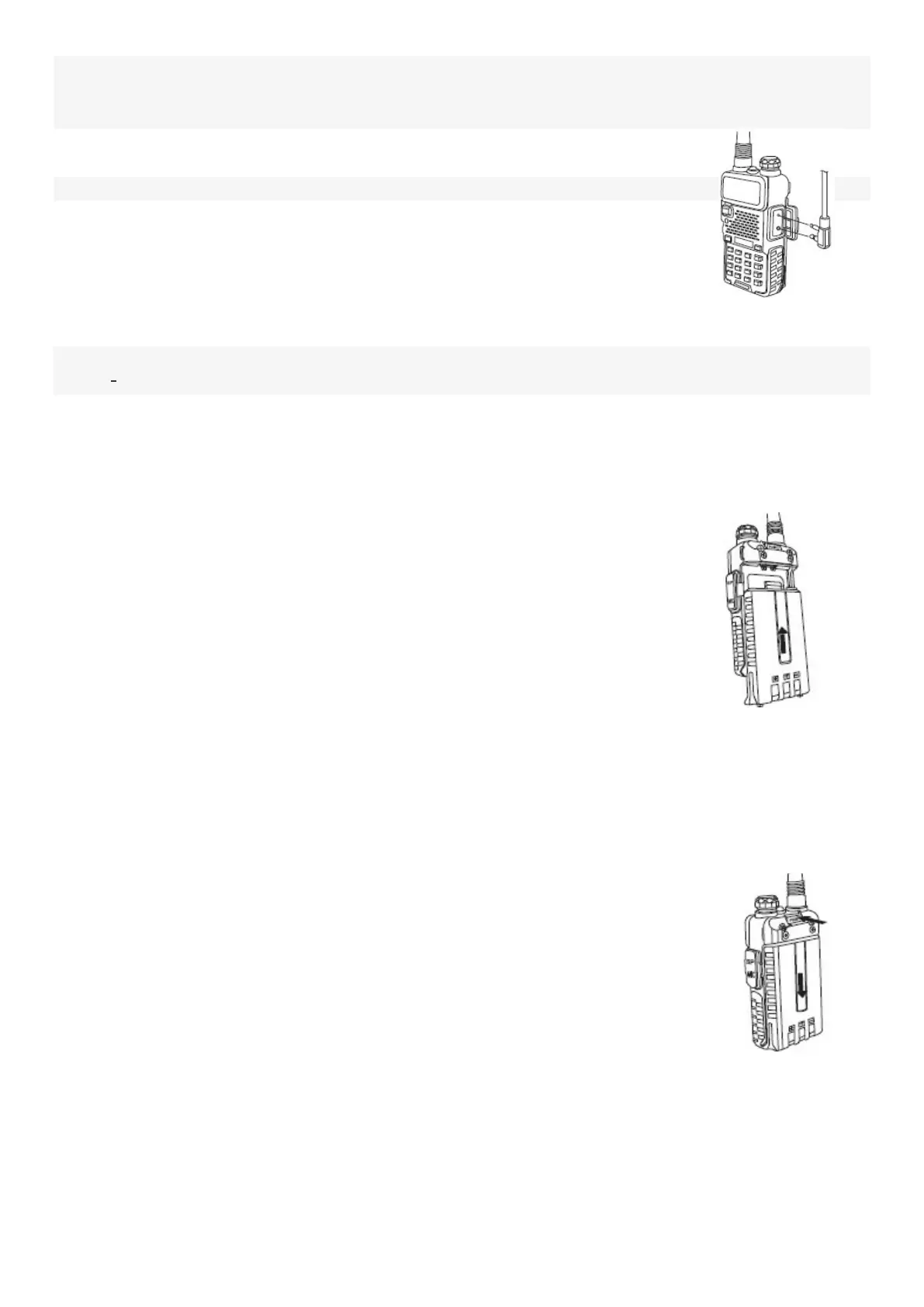

Plug the external micro-headset connector into the jack of ‘SP. & MIC’
of the transceiver as shown in the figure below.
5.4. – BATTERY INSTALLATION:
-When attaching the battery, make sure the battery is in parallel and in good contact with the
aluminum chassis. The battery bottom is about 1 to 2 centimeters below the bottom of the radio’s
body.
-Align the battery with the guide rails on the aluminum chassis and slide it upwards until a ‘click’ is
heard.
-The battery latch at the bottom locks the battery.
-Turn off the radio before removing the battery.
-Slide the battery latch, at the bottom of the radio’s body, in the direction indicated by the arrow.
-Slide down the battery for about 1 to 2 centimeters, and then remove the battery from the radio’s
body.
