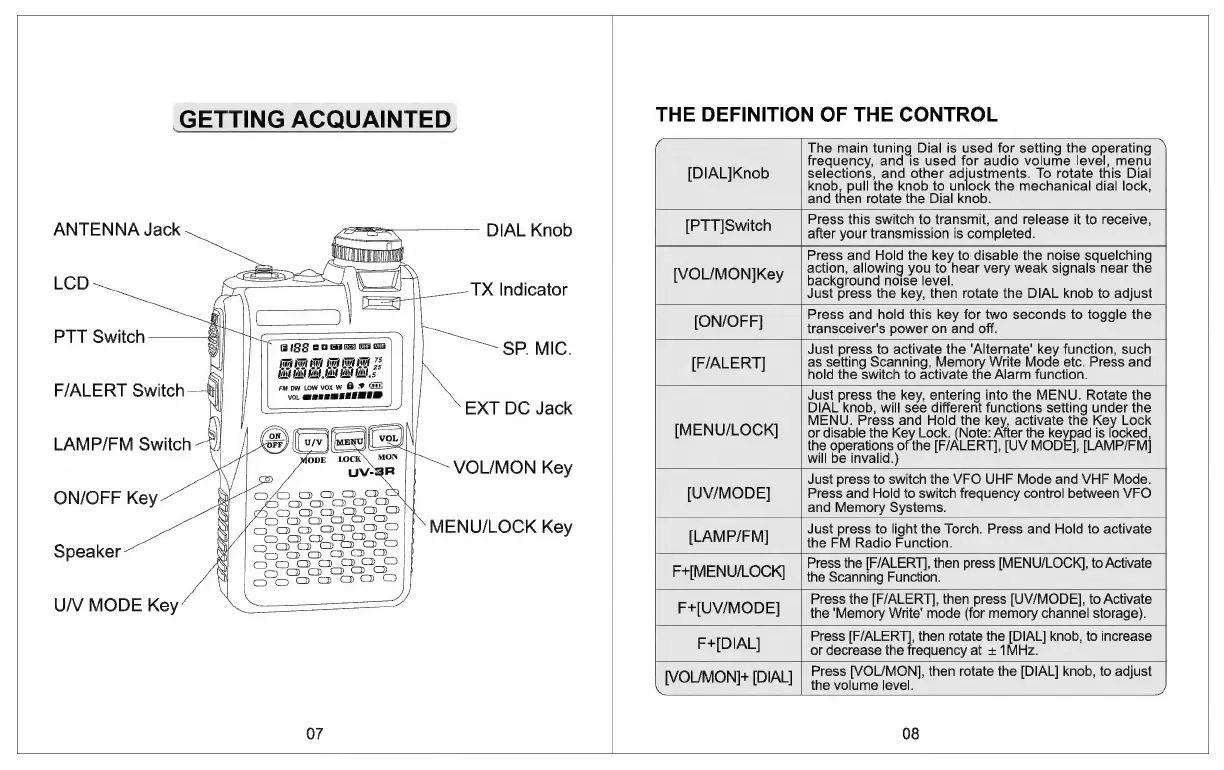

GETTING ACQUAINTED
ANTENNA Jack
LCD
PTT Switch
F/ALERT Switch—t
LAMP/FM Switch
ON/OFF Key
Speaker
U/V MODE Key
07
DIAL Knob
TX Indicator
SP. MIC.
EXT DC Jack
VOL/MON Key
MENU/LOCK Key
THE DEFINITION OF THE CONTROL
The main tuning Dial is used for setting the operating
frequency, and is used for audio volume level, menu
[DIAL]Knob selections, and other adjustments. To rotate this Dial
knob, pull the knob to unlock the mechanical dial lock,
and then rotate the Dial knob.
‘ Press this switch to transmit, and release it to receive,
[PTT]Switch after your transmission is completed.
Bess sue Hold the Keg disable ee cs paueleniig
action, allowing you to hear very weak signals near the
[VOL/MON]Key background Tee level.
Just press the key, then rotate the DIAL knob to adjust
Press and hold this key for two seconds to toggle the
[ON/OFF] transceiver's power on and off.
Just press to activate the ‘Alternate’ key function, such
[F/ALERT] as setting Scanning, Memory Write Mode etc. Press and
hold the switch to activate the Alarm function.
Just press the key, entering into the MENU. Rotate the
eee will See aaron fonctions saute aa tas
. Press and Ho e key, activate the Key Loc
[MENU/LOCK] or disable the Key Lock. (Note: Afier the keypad is ockedi
the operations of the [F/ALERT], [UV MODE], [LAMP/FM]
will be invalid.)
Just press to switch the VFO UHF Mode and VHF Mode.
[UV/MODE] Press and Hold to switch frequency control between VFO
and Memory Systems.
Just press to light the Torch. Press and Hold to activate
[LAMP/FM] _| the FM Radio Function.
Press the [F/ALERT], then press [MENU/LOCKj], to Activate
F+[MENU/LOCK] the Scanning Function.
Press the [F/ALERT], then press [UV/MODE], to Activate
F+[UV/MODE] the 'Memory Write’ mode (for memory channel storage).
F+IDIAL Press [F/ALERT], then rotate the [DIAL] knob, to increase
l ] or decrease the frequency at + 1MHz.
Press [VOL/MON], then rotate the [DIAL] knob, to adjust
[VOLIMONK [DIAL] the volume level.
