Barber SURF RAKE 600HD - Page 27

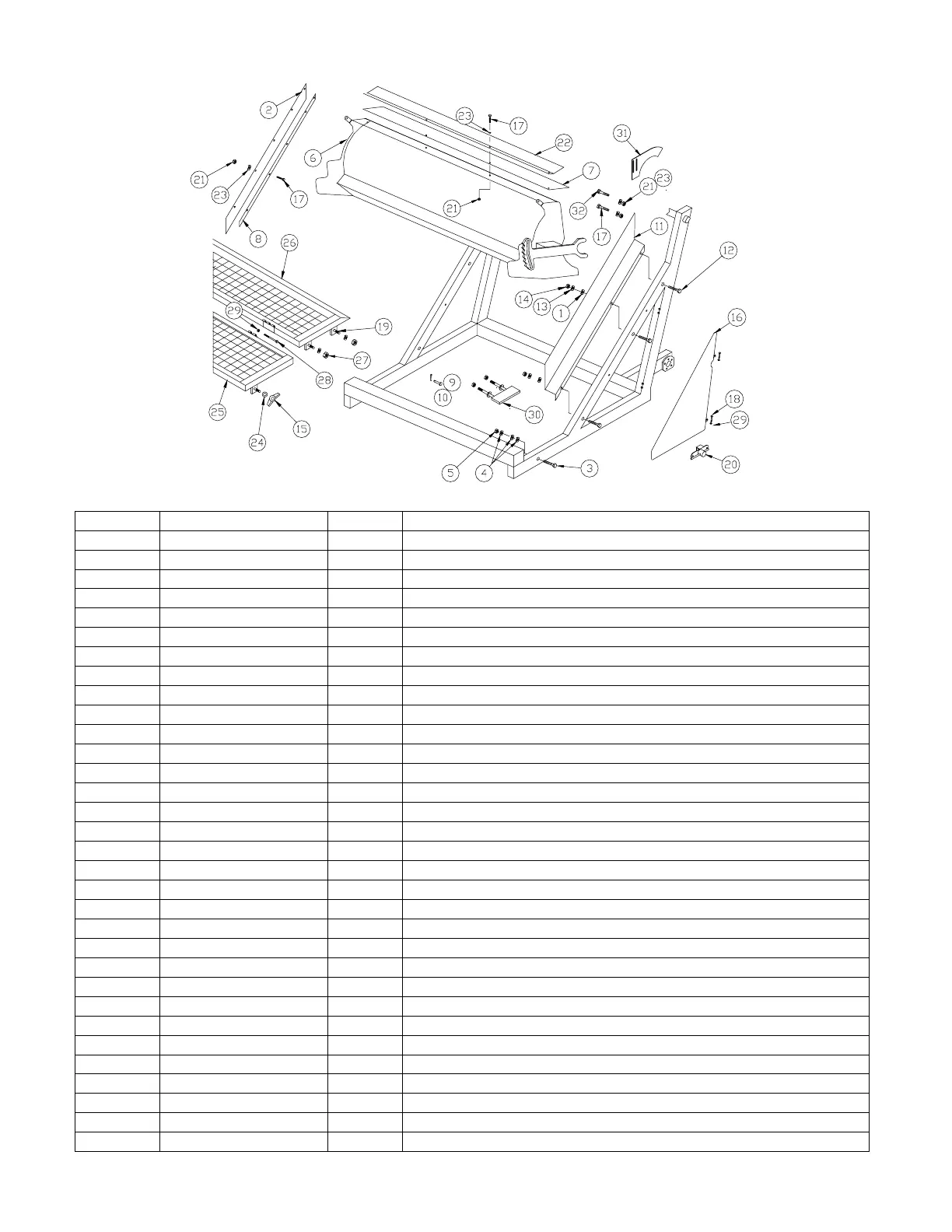

MOLDBOARD & SHIELDS
ITEM PART NUMBER QTY DESCRIPTION 600HDS “S” BELT HYDRAULIC (OPTION)
1 514G 6 FLAT WASHER
2 542DA 2 STONE GUARD FLAP
3 509D 2 BOLT
4 509C 8 FLAT WASTER
5 509FA 2 LOCK NUT
6 522AS02 1 MOLDBOARD, HYDRUALIC OPERATED
7 522F 1 MOLDBOARD FLAP
8 542DB 2 STONE GUARD FLAP HOLD DOWN
9 530CM06 4 PIN
10 560C02150 4 COTTER PIN
11 542AS01 (R/L) 2 SIDE GUARD (LEFT SHOWN)
12 514D 6 CAPSCREW
13 509H 6 LOCK WASHER
14 509J 6 HEX NUT
15 518AA 2 WING NUT
16 543AS04 (R/L) 2 SIDE GUARD (LEFT SHOWN)
17 524X 14 CAPSCREW
18 560B04175 4 CAPSCREW
19 560B08100 4 CAPSCREW
20 560LA01 2 SPRING LATCH ASSEMBLY
21 560N05L 14 HEX NUT
22 522G 1 MOLDBOARD FLAP HOLD DOWN
23 524S 14 FLAT WASHER
24 603GG 6 FLAT WASHER
25 542EB 1 LOWER TOP SHIELD ASSEMBLY
26 542EA 1 UPPER TOP SHIELD ASSEMBLY
27 560N08L 4 LOCK NUT
28 560B04450 2 CAPSCREW
29 560N04L 8 HEX NUT
30 541AS01 2 SKID SHOE (SIFTING BELT ONLY)
31 542BU05 2 TAKE UP GUARD
32 560B05125 2 CAPSCREW
