1. Fan replacement kit

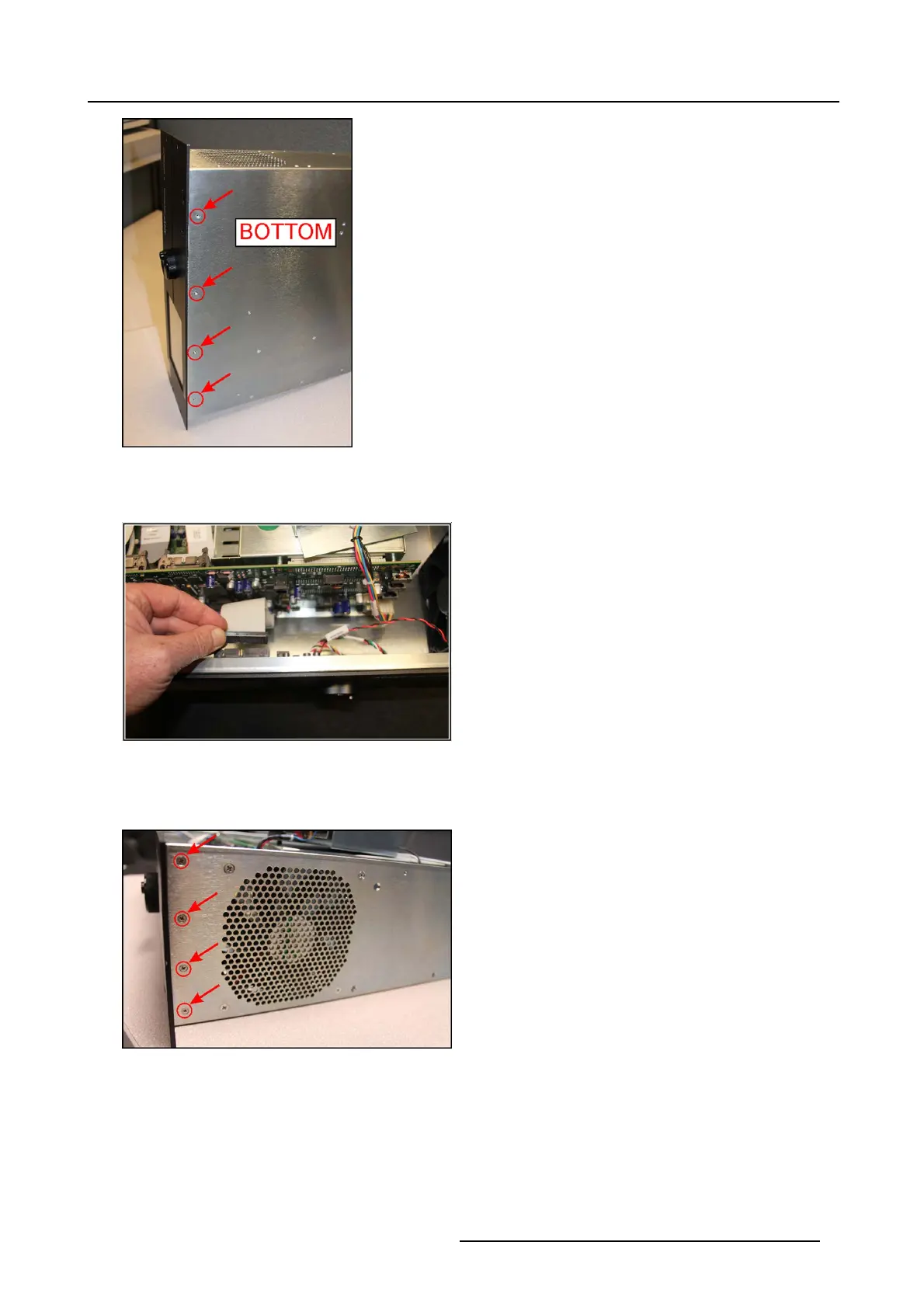

Image 1-3
3. P lace the processor back down with the top facing upwards.
4. G ently rem ove the ribbon cable connector from the front p anel.
Image 1-4
Tip: Pull evenly on both sides and be ca reful not to bend pins or damage the ribbon cable connector.
Do not tug on the wire s to remove the connector, as this m a damage the c able.
5. R emov e four 4–40 x 3/16” fla t-head Phillips sc rews on both sides of the processor (eight in total).
Image 1-5
Note: Be careful when removing the last screws.
6. Fold the front panel dow n
and away, to provide more room to access to the fan.
Note: be careful not to stress any of the cables that are still attached.
R59770891 AP20 & AP24 FAN REPLACEMENT KIT 28/09/2015
