Image 4–7

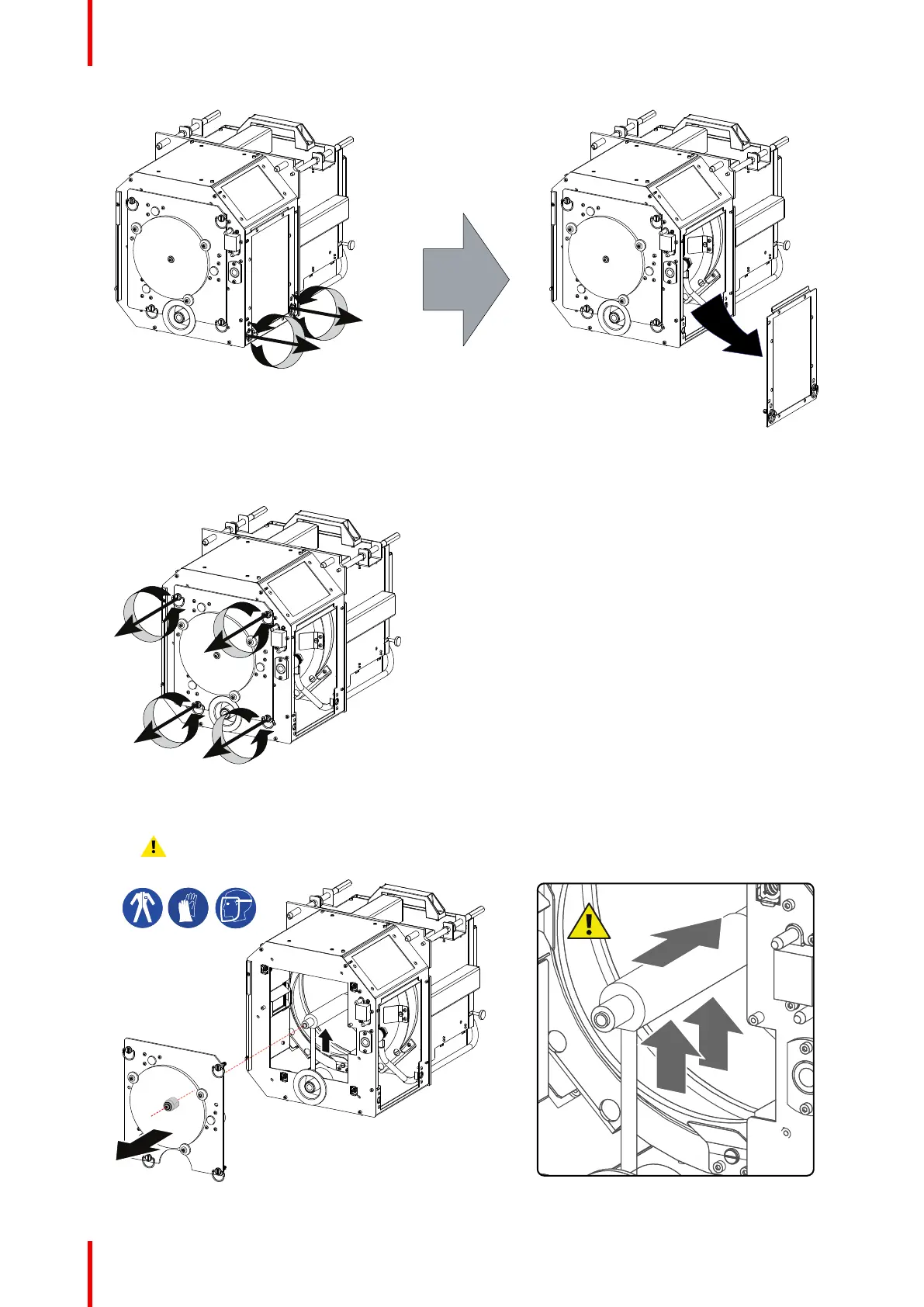

3. Release the four retaining thumbscrews of the UV blocker assembly as illustrated. Make sure that the UV
blocker assembly remains in its position while releasing the screws.
Image 4–8
4. Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly
from the Lamp House. Note that some xenon lamps are installed with an anode adaptation bushing.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 4–9
Lamp & Lamp House
