Barco FL40 series Quick Start Guide

- 2 -
Control & communication connections Control & communication connections
1

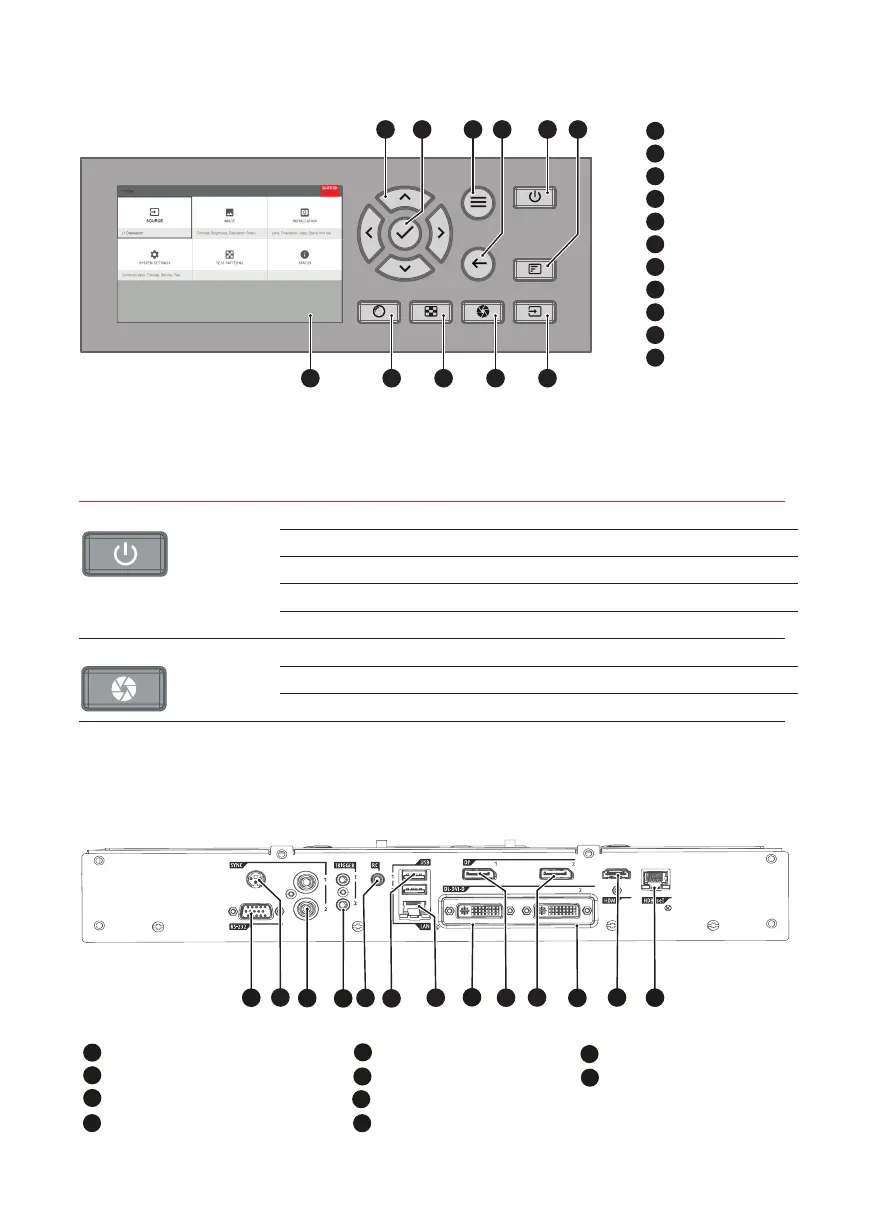

Menu Navigation
2
Menu Selection
3
Open Menu
4
Menu Back
5
Power On/O
6
OSD On/O
7
Input Selection
8
Shutter Open/Close
9
Test Patterns
10
Lens Menu
11
LCD Panel
10 9 8 7
1 2 3 4 5 6
Local keypad
11
Button backlight status
BUTTON
COLOR STATUS
DESCRIPTION
Projector starts up (Booting)Blinking WHITE
Projector is in StandbySolid WHITE
Blinking RED
Error condition
Blinking BLUE
Projector goes to ON mode
Projector is ON
Power button
Solid BLUE
O
Projector not in power ON state
Solid WHITE
Shutter is open
Shutter is closedSolid RED
Shutter button
1
2
8
8
9
10
3
5
6
7
7
1
RS-232: 9- pin DB9 Connector
2
Sync Port IN/OUT - BNC / Bidir mini-DIN
3
Trigger: 12VDC - 0,5A (6W)
4
RC: Jack connector for wired remote
5
DP: Standard Display port
6
LAN: Standard RJ45 connector
7
Usb 2.0 type A, 4 pin
8
Dual DVI-I 1.0 (DVI_D Functionallity)
HDMI: Standard HDMI 2.0
9
10
HDBaseT: Standard RJ45 8P8C
4
2

Barco FL40 series Specifications

General

Brand	Barco
Model	FL40 series
Category	Projector
Language	English
