2. Installation

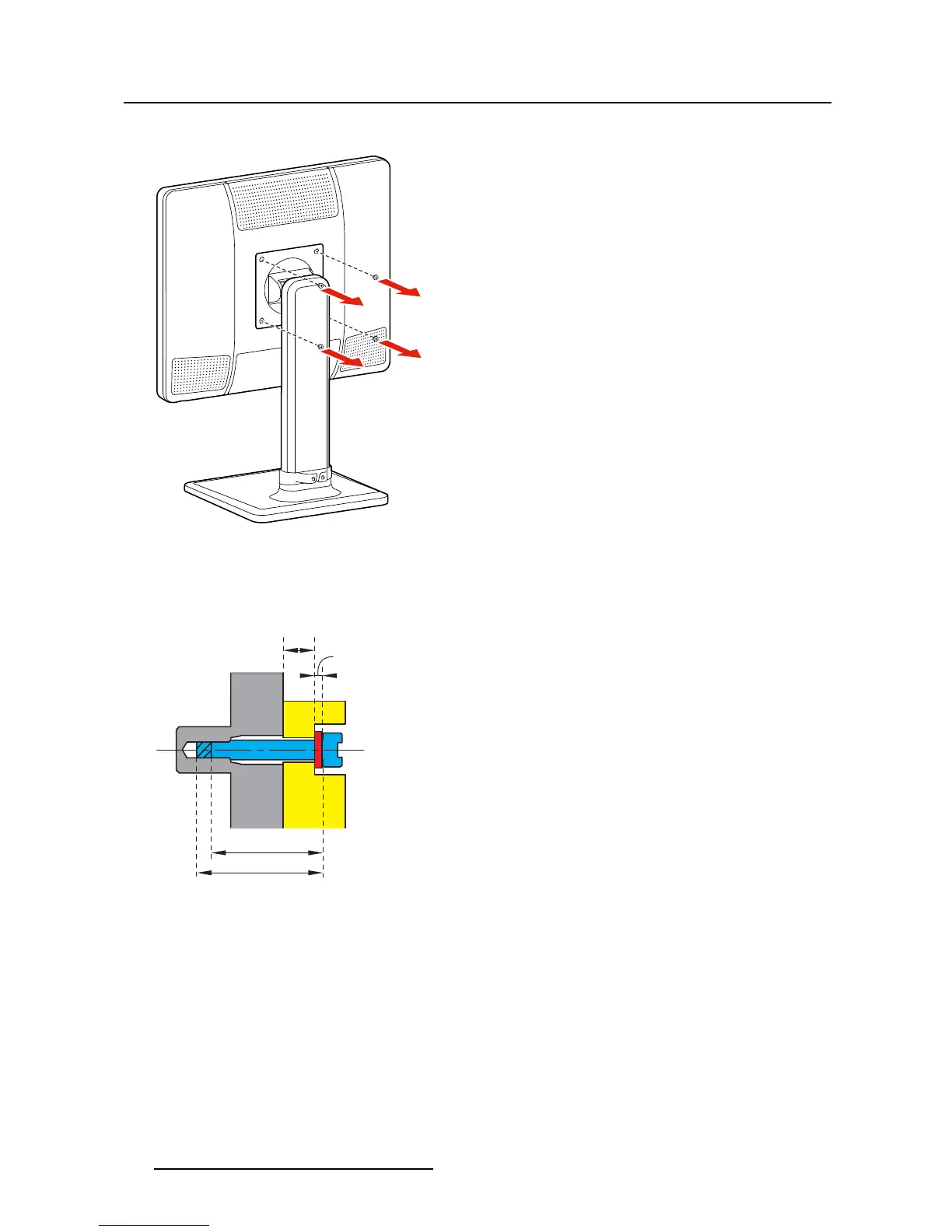

1. Unscrew the four fixation screws to detach the panel from the stand.
Image 2-5
2. Use 4 M4 screws to attach the panel to a VESA approved arm. Please respect the following rule to
select an appropriate screw length:
-L
min
=T+W+6mm
-L
max
=T+W+14mm
T
W
L
min
Lmax
Image 2-6
