2. Installation
2. INSTALLATION
WARNING: Rea d all t he important safety information before installing and operating
your monitor. Please refer to the dedicated chapter in this user guide.
WARNING: Sufficient expertise is required to install this equipment. All devices and
complete setup must be tested before taking into operation.
CAUTION: When the display is assembled in the medical system, take care of the fixa-
tion of all cables, to avoid unwanted detachment.
CAUTION: The monitor is not intended to be sterilized.
2.1 Cable co nnections
To connect the cables
1. Connect one or more video source(s) to the corresponding video inputs. Use the appropriate video
cable(s) to do this.
The input source to be displayed can be selected in the OSD menus (see "Input source selection", page
13).

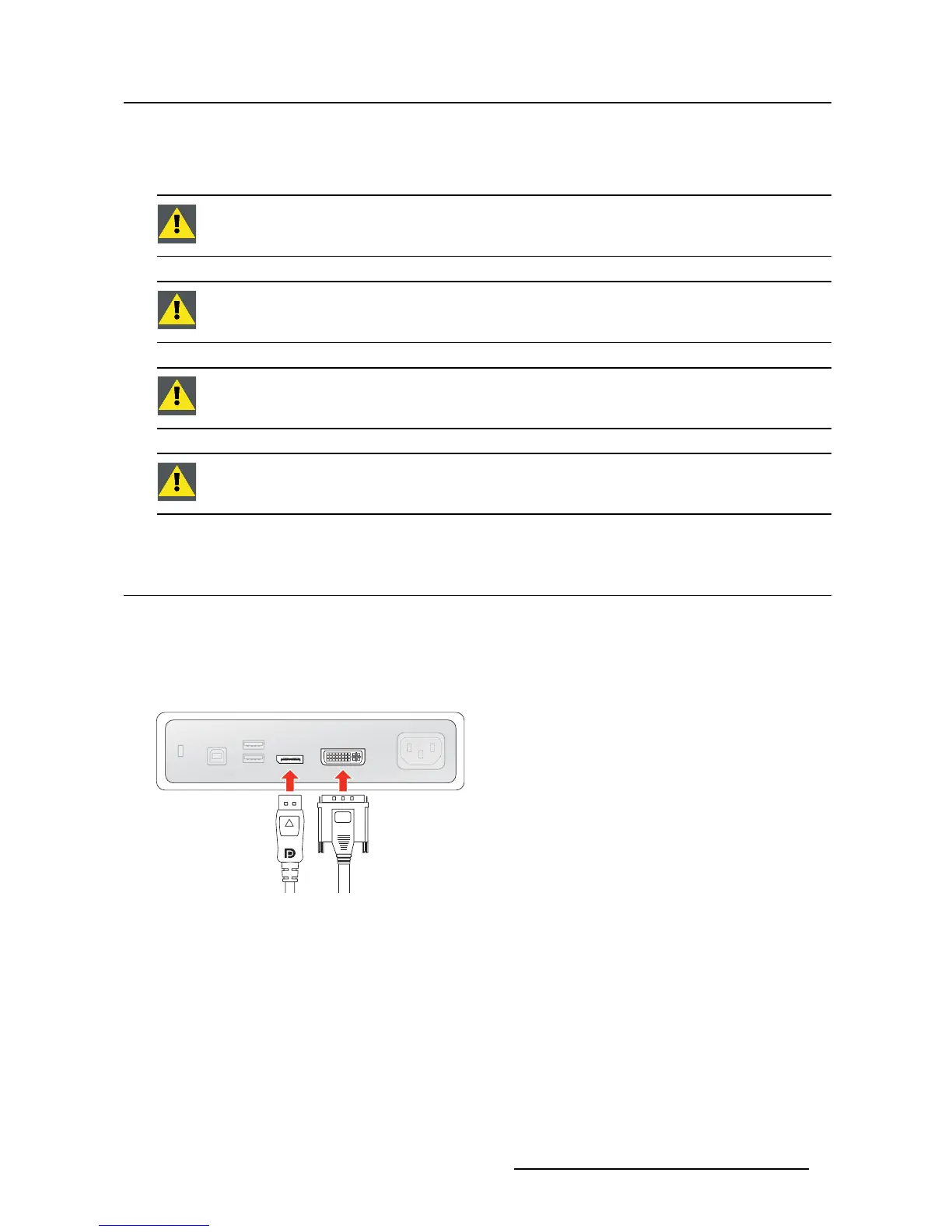

Image 2-1
2. Connect the USB upstream connector to a PC USB host to install the touchscreen drivers and to make
use of QAWeb or any of the display USB downstream connectors (e.g. to connect a keyboard, mouse
or other peripheral).
Note: The drivers will be automatically installed when initially booting the system. This may take a few
minutes.
K5902128 (451920612451) MDRC-1219 (TS) 03/11/2016
