3. Display installation
4. Connect the supplied external DC ( ) power supply to the +12 VDC power input of your display.
5. Plug the other end of the external DC (
) power supply into a grounded power outlet by means of
the proper power cord delivered with your display.
1 1 4
5
23 1

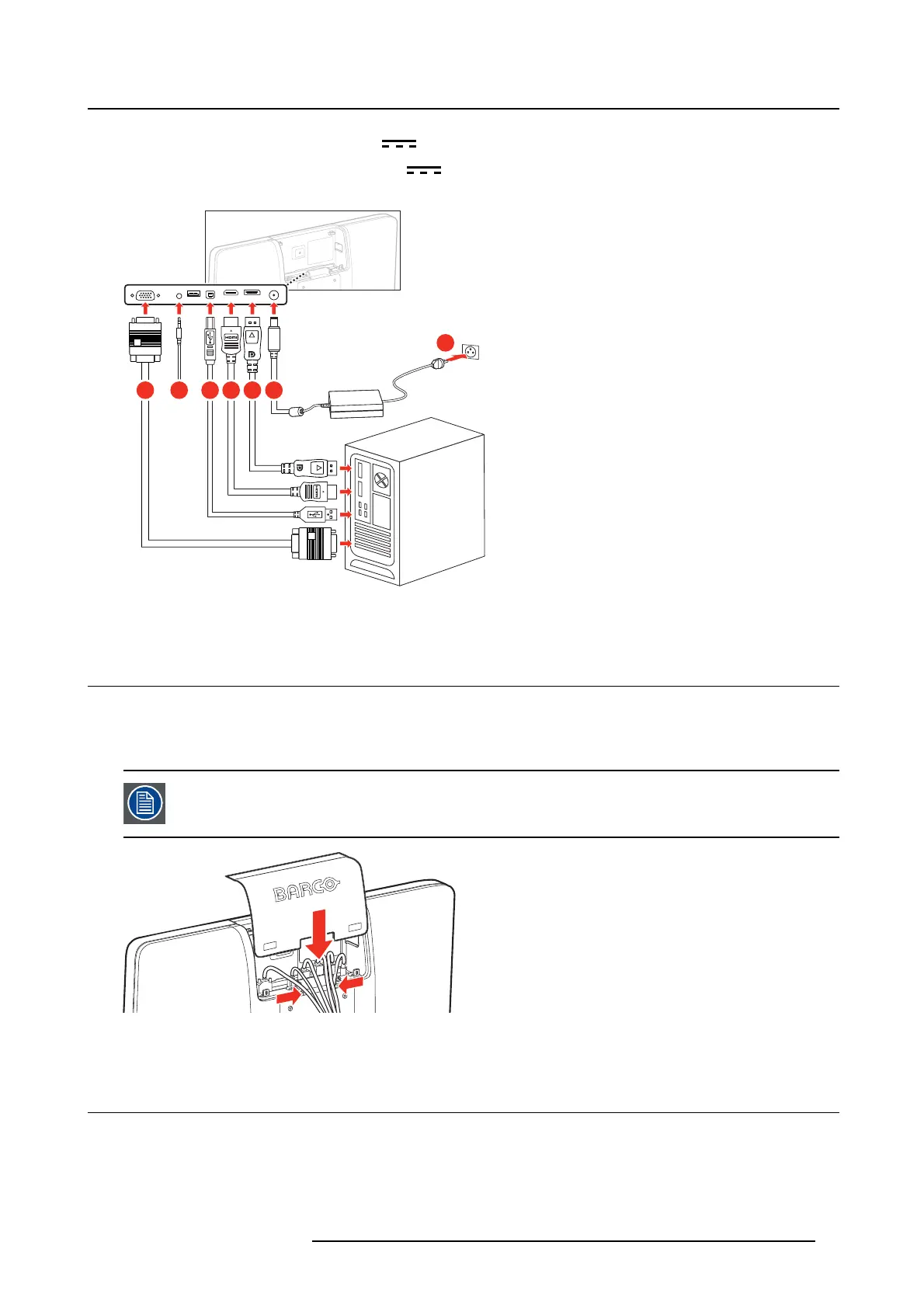

Image 3-4
3.5 Re -attach ing t he co ver
To re-attach the connector compartment cover
Put the cover back in position by sliding it downwards so that it is fixed to the display again.
Pay attention that all cables stay in the cable channel while re-attaching the cov er.
Image 3-5
3.6 Routin g the cables
To route the cables
1. Slide the cable routing strap through the opening in the back of the stand.
2. Bundle all cables together so that they will fit in the strap.
