R5906788-03 Thor series 71

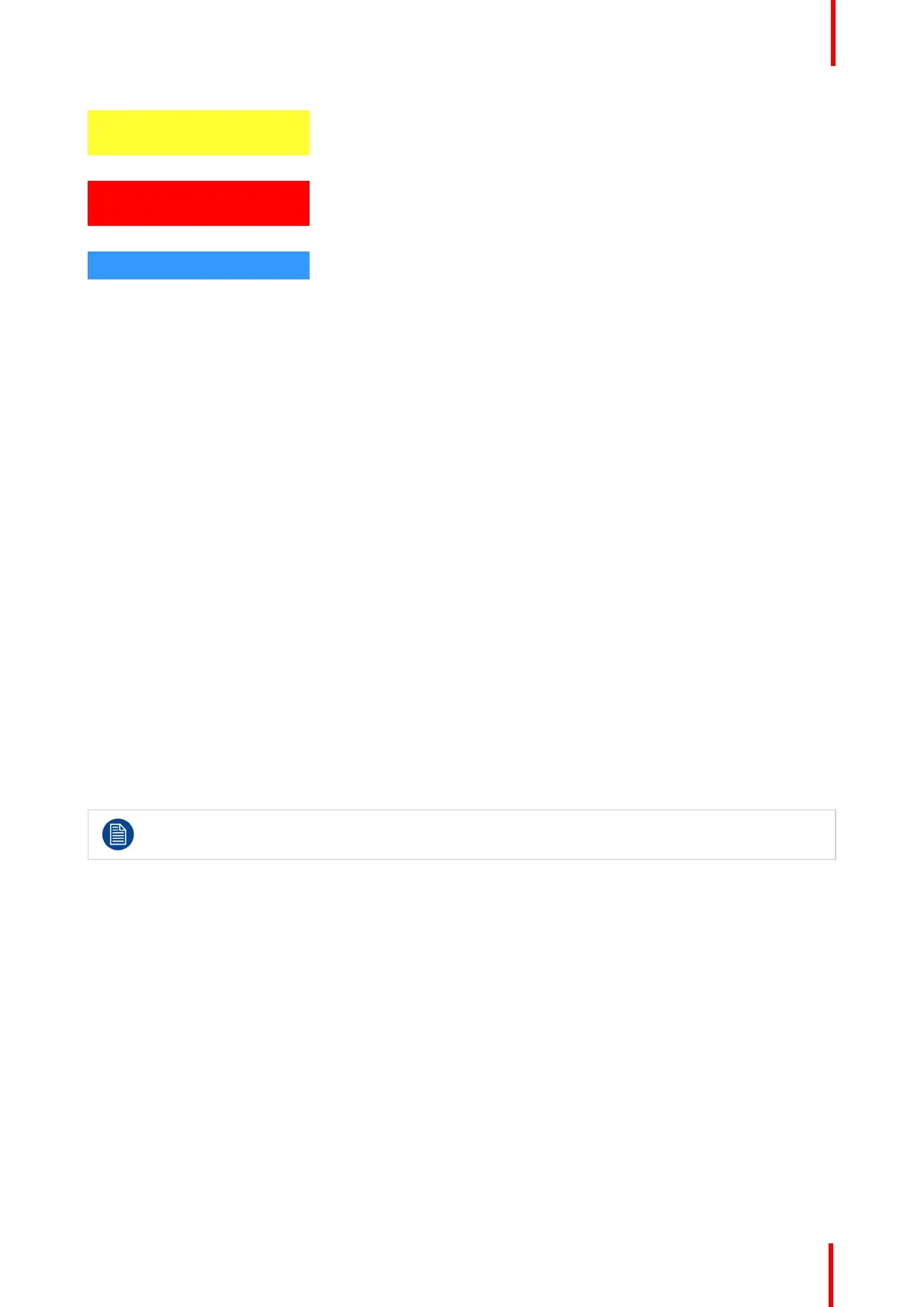

Yellow Projector is running with warnings. Event can go on but a technical intervention might be necessary in the near
future to prevent a complete stop of the projector.
Red Projector is in error state. Problem could prevent normal operation. Solve the problem before continuing with the
projector.
Blue Projector runs in notification state. Maintenance action required.
Operational mode
In Operational mode the lasers of the projector are switched OFF but all the electronics of the projector remain
fully operational. The projector is ready to activate the lasers and project the image. The status light is not
different between Operational mode and Light ON mode.
Standby mode
If the projector is in Standby mode then the status light flashes every ten seconds. The color of the flash
depends on the state of the projector. In other words, the color of the flash will be green in normal state (no
warnings, no errors, no notifications).
In Standby mode the total power consumption of the projector is less than 15W. All electronics are switched of
(including PSUs for the lasers) except for Cinema Controller board and Local Keypad. Only the following
functionalities of the projector remains active:
Local Keypad
Router LAN and WAN port fully functional
USB IN port type B (Virtual comport RS232)
USB OUT port type A (To power handheld devices [500mA MAX]. No other functionality supported)
GPIO port on the Cinema Controller
Pressing the Standby button in Operational mode for 3 seconds puts the projector in Standby mode. After de-
conditioning then the projector goes in Standby mode.
Pressing the Standby button in Standby mode for 3 seconds will awake the projector towards operational
mode. The status light will blink for a few seconds (booting up all inactive boards) and then lights up
continuously.
Enter or leave Standby mode can also be done via two dedicated projector commands (USB/Ethernet), or via
two predefined Macros (not editable) with GPIO of the Cinema Controller (not the GPIO of the ICMP), or via
the Communicator.
The projector always boots up in the same mode (E.g. Standby or Operational) as it was powered
OFF.
8.3 Laser Status
About the Laser Status Light
The Laser Status Light is located at the rear top of the projector (reference 2 Image 8-3). The Laser Status
Light is a real time indicator of the laser condition.
