Barco UDX-4K40 User Manual

R5906112 /09 UDX series 133
8.8.4 Black Level Files
About custom Black Level Files
Next to setting your specific Black Level Adjustment in the GUI, you can also upload or download a custom
Black Level adjustment file in png, jpeg or tiff format to/from the projector.
To upload or download Black Level adjustment files you can use Projector Toolset or upload/download the
Black Level adjustment file in the format of an XML file. Alternatively, you can contact the “file endpoint”
directly via the curl program or some other tool that supports http upload.
For more information on uploading/downloading Black Level files using the Projector Toolset, refer to the
Projector Toolset user manual.
For more information on uploading/downloading Black Level files using curl or other tools that supports HTTP
upload, refer to the Pulse API Reference Guide.
How to activate an uploaded Black Level adjustment file?

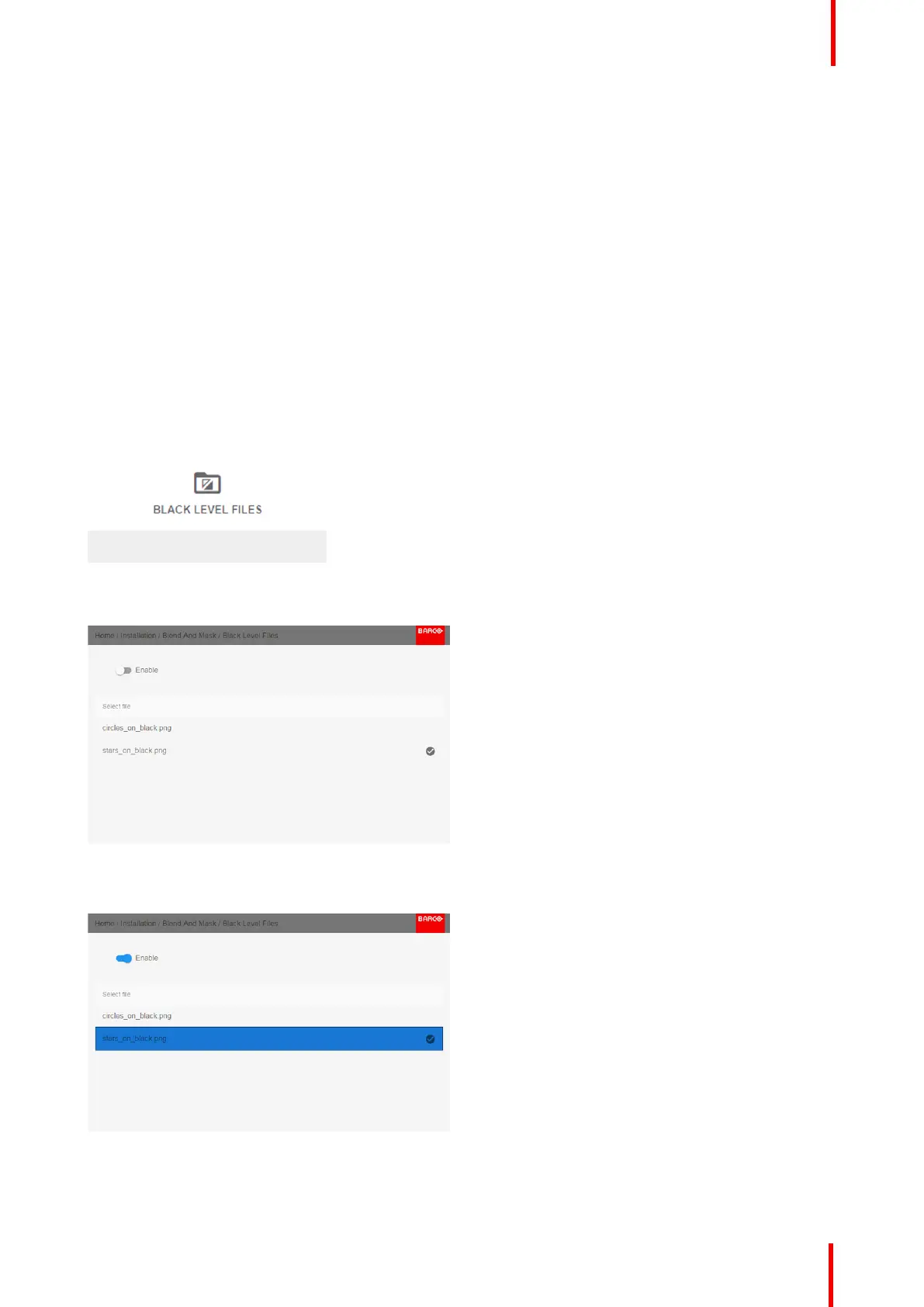

1. In the main menu, select Installation → Blend and Mask → Black Level → Black Level Files.
Image 8-60: Black Level menu, Black Level Files
The Black Level Files menu is displayed.
Image 8-61
2. If any custom Black Level adjustment files are available, select the desired file.
Image 8-62
3. Click on the Enable slider on top to activate the selected Black Level adjustment file.
GUI – Installation

Barco UDX-4K40 Specifications

General

Projection technology	DLP
Contrast ratio (typical)	2200:1
Projector native resolution	2160p (3840x2160)
Embedded web server	Yes
Serial interface type	RS-232
Noise level	58 dB
AC input voltage	200 - 240 V
Light source type	Laser
Service life of light source	20000 h

Weight and Dimensions

Depth	830 mm
Width	660 mm
Height	350 mm
Weight	92000 g
