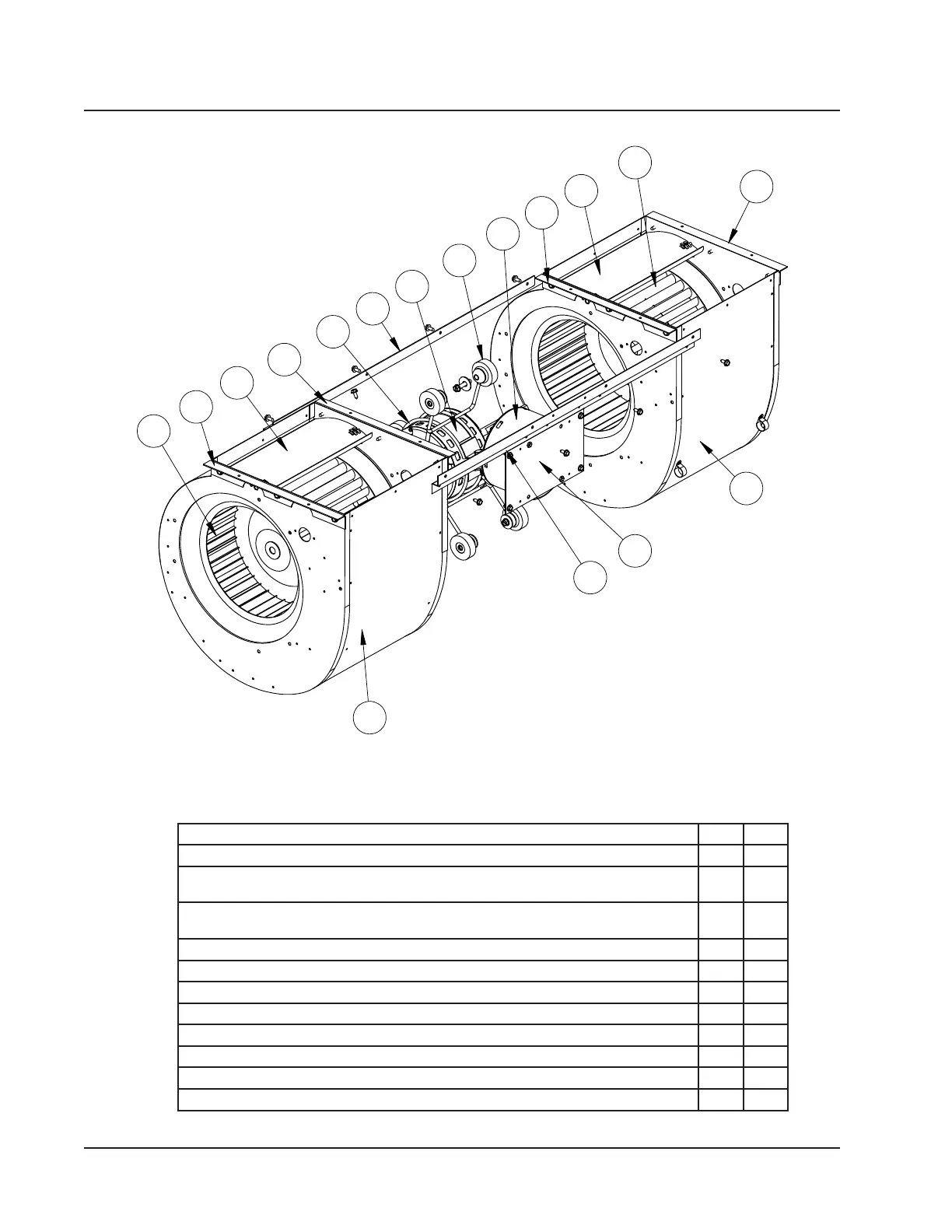

BLOWER ASSEMBLY
SEXP-618
2
1
9
5
11
11
12
9
9
8
10
7
12
6
3
9
4
900-340-001 900-341-001
Drawing No. Part No. Description
1 5152-011 Wheel (CW) X X
2 5152-012 Wheel (CCW) X X
3
3
S8107-023-0130
S8107-024-0131
Programmed Motor w/Control
Programmed Motor w/Control
X
X
4
4
C8107-023-0130
C8107-024-0131
Control Only
Control Only
X
X
5 112-344 Blower Motor Control Mount X X
6 8200-040 Motor Mount X X
7 5451-011 Grommets 6 6
8 105-881 Back Brace X X
9 105-880 Blower Angle 4 4
10 103-389 Front Brace X X
11 151-101 Blower Housing 2 2
12 144-166 Diffuser 2 2
