Operation and Maintenance ManualLast Updated - 08/31/2016
495B ML TM (S)
48
ITEM NO. DESCRIPTION QTY.
1 SEAL-PISTON 1
2 WEAR RING 2
3 O-RING 1
4 BACK-UP RING 1
5 SQUARE RING ROD BUFFER 1
6 WEAR RING 2
7 SEAL 1
8 SEAL ROD DEEP 1
9 WIPER 1
10 MODULAR BACKUP RING 1
11 O-RING 1
1
3
6
2
7
8
10
9
11
5
4
2
6

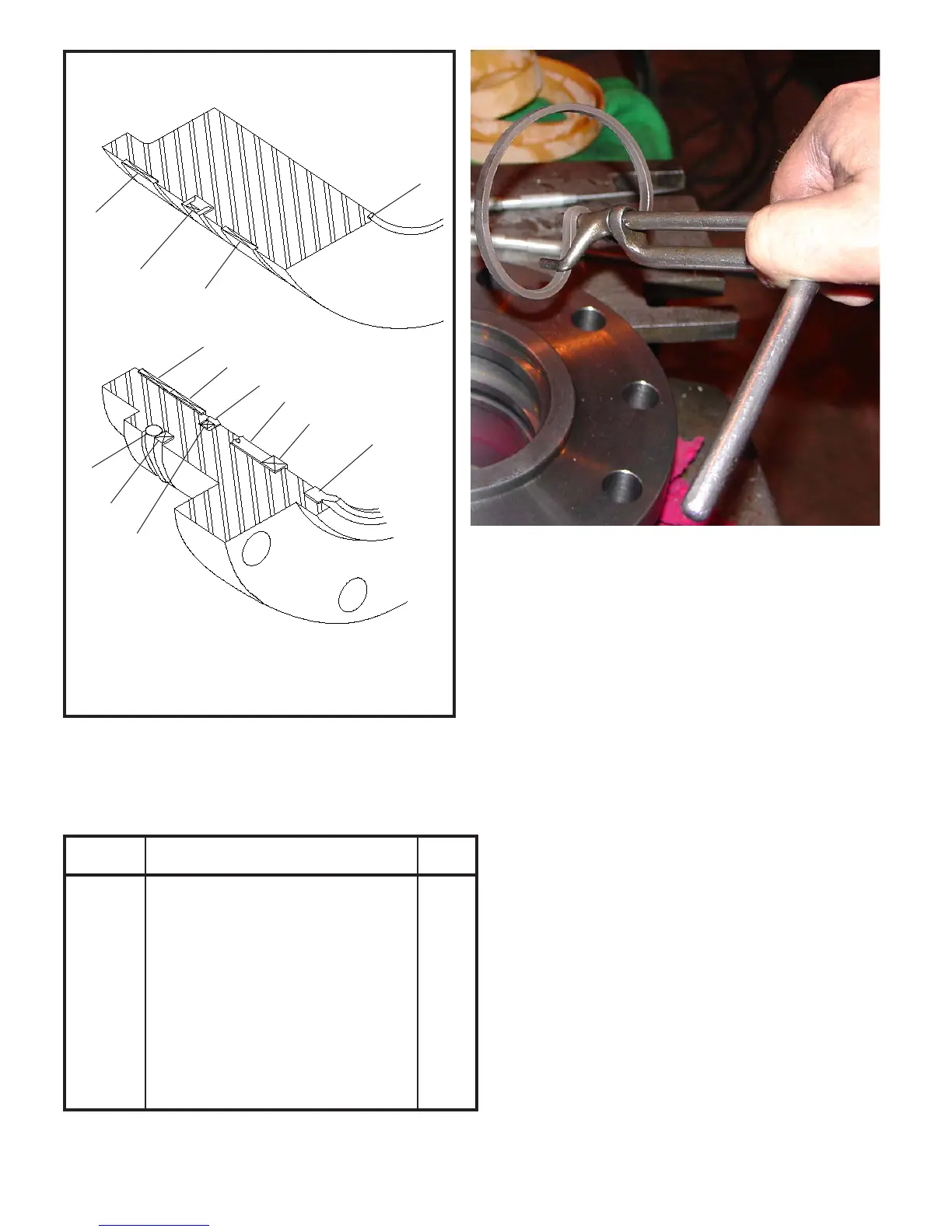

NOTE: Follow order and orientation of seals shown in
drawing. Expansion ring on item 8 must point towards
pressurized end of cylinder with item 10 behind it.
Depending upon manufacture date item 5 and 7 may be
on either side of item 6
Piston
Gland
SEAL PLIERS (PART # 412-00409) BEING USED TO
BEND SEAL FOR INSTALLATION.
Piston and Gland shown may not be type used on
your machine but are shown as a reference.
