40-8
®
ARMREST
ALL THE
WAY DOWN
(ON)
ARMREST ALL
THE WAY UP
(OFF)

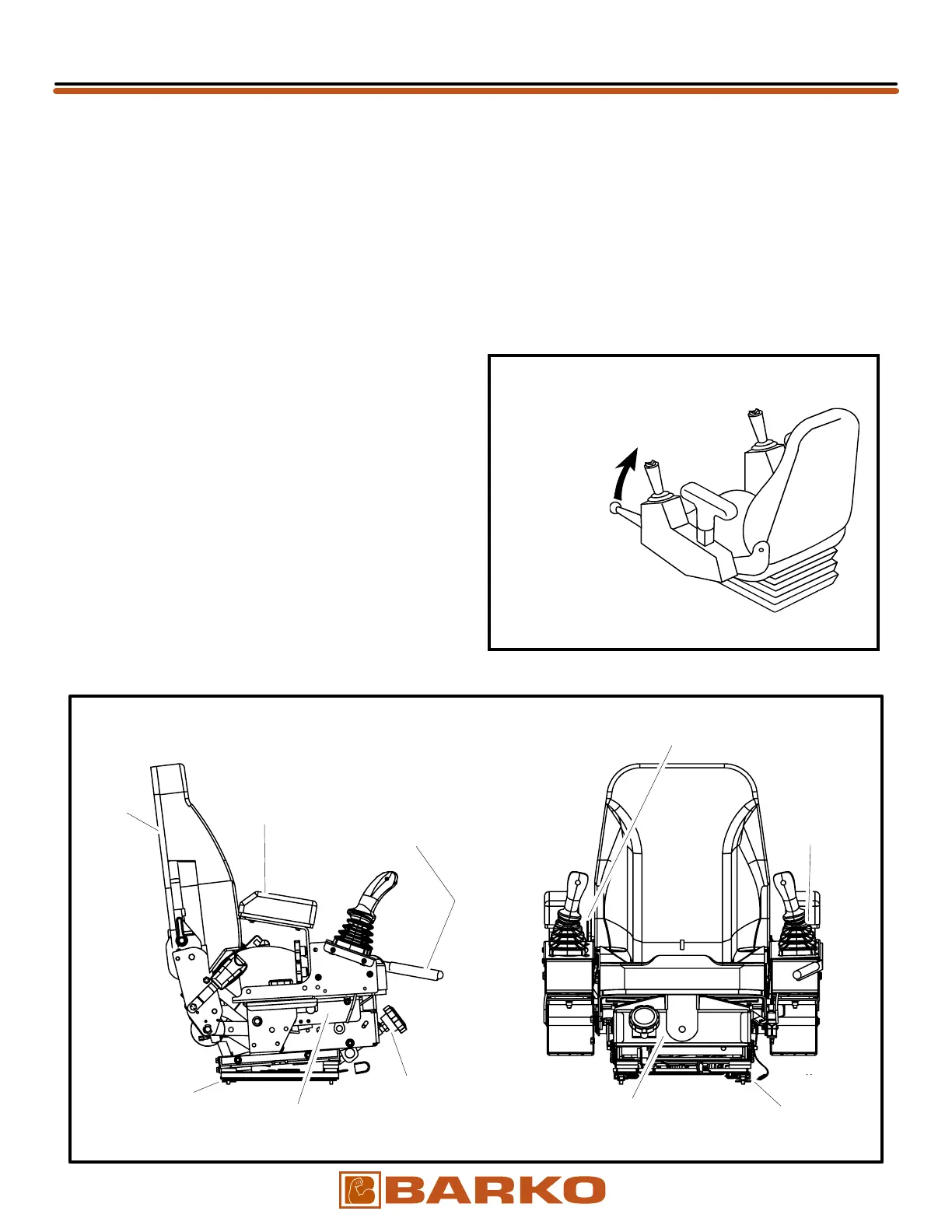

SEAT LAYOUT
This electrical system uses a total of 12 self resetting circuit breakers. Eight behind the Overhead Panel
and 4 in the gray box below the cab.
There is one fuse attached to the Battery Disconnect Switch used for constraint power to the radio.
Cabs with Side Duct Mounted Instrument Panels:
FUSES/ CIRCUIT BREAKERS
SERVO LEVER
This lever lifts up the entire armrest which turns the
servo off and allows you to enter the cab.
Push lever/armrest UP to shut off servo and enter
cab.
Push lever/armrest DOWN to turn on servo and
operate machine.
Note that in the ON position, this lever extends in
front of the cab door. It must be in the OFF position
before leaving or entering cab.
Lever must be in ON position to activate the
joystick controls. In the OFF position, the hydraulic
controls are inoperative.
Note: Know the location and function of all controls before operating this machine
Pouch
Forward and
Backward
Seat-only
adjustment
Weight
Adjustment
Height
Adjustment
Armrest
Height
Adjustment
Servo Lever (Lifts entire
armrest to allow cab
entry. Lower armrest to
operate machine)
Lumbar
Adjustment
Backrest
Tilt
Weight
Adjustment
Forward and
Backward
Seat-only
adjustment
08/20/2018
Updated
OPERATOR’S
