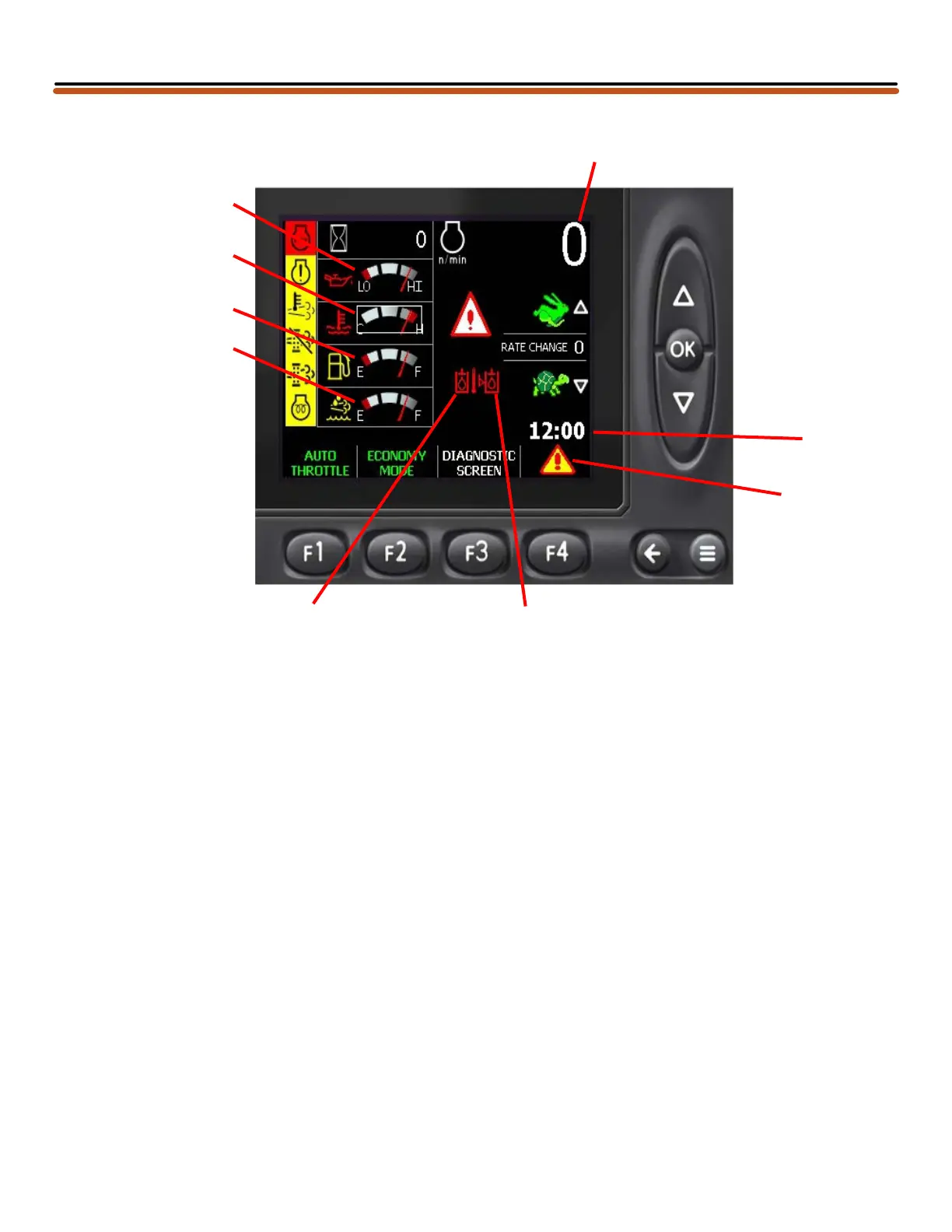

Barko 595B - Md3 Main Screen

40-12
1. Engine Oil Pressure - Displays current
engine oil pressure. Icon turns red when
low.
2. Engine Coolant Temperature - Displays
current engine coolant temperature. Icon
turns red when high.
3. Fuel Level - Displays current fuel level. Icon
turns yellow when fuel level is low.
4. Diesel Exhaust Fluid (DEF) Level - Displays
current DEF level. Icon turns yellow
when DEF level is low.
5. Hydraulic Temperature High - Icon appears
when the temperature of Hydraulic Oil is
high.
6. Hydraulic Fluid Level Low - Icon appears
when Hydraulic Fluid level is low.
9
3
2
1
4
7. Warning Icon - Flashes when a warning is active.
8. Clock
9. Engine Speed - Displays current engine speed in
RPM.
5
6
8
7
Md3 MAIN SCREEN
08/20/2018
Updated
OPERATOR’S
