23
Step 8. Attach foam gasket tape to the inside cover radius
as shown in Fig. 9a and Fig. 9b.
Step 9. Fill cover with sand prior to installation through
sand fi ll port shown below in Fig. 10a. Shake cover to
evenly distribute sand. When cover is full insert plug until
locked in place as shown in Fig. 10a and Fig. 10b.
Step 16: INSTALLING THE
PUMP CORD AND LEVEL
CONTROL CORD
Insert the end of the cord plug into the housing
bore, aligning the alignment mark of the plug
with the alignment hole of the terminal block (see
below). Tighten bolts on compression fl ange until
it touches the housing.
Pump Power - Large pin
Level Control - Small pin
Level control cord has molded fi tting at both ends
of the cord. Install one end to the Pump and the
other end to the Level Control.

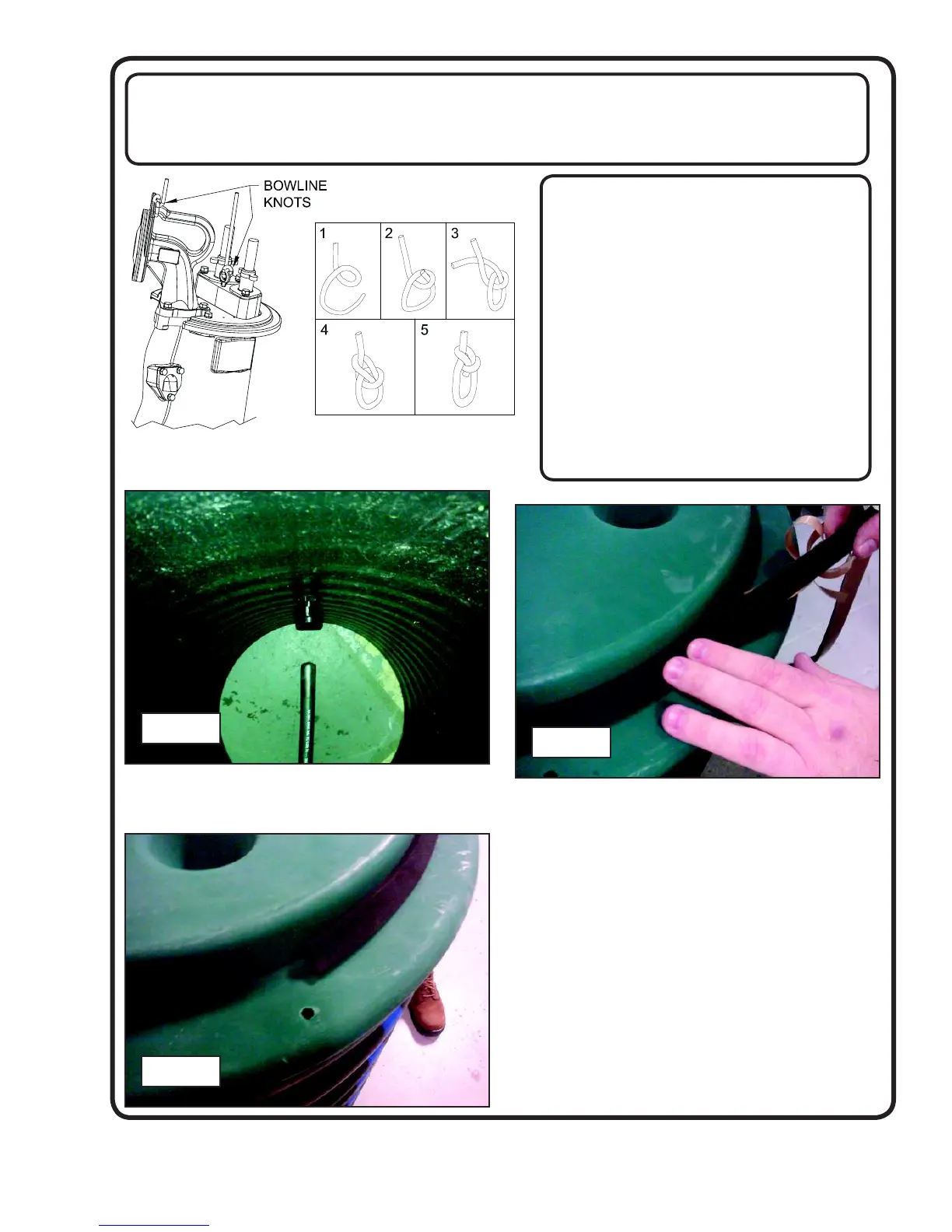

Step 15: INSTALL PUMP HARNESS
Tie the bowline knot where shown per the directions provided. Tie one bowline knot on the handle of the moveable
fi tting and one bowline knot in the eyebolt on the pump.
Fig. 8
Fig. 9a
Fig. 9b
