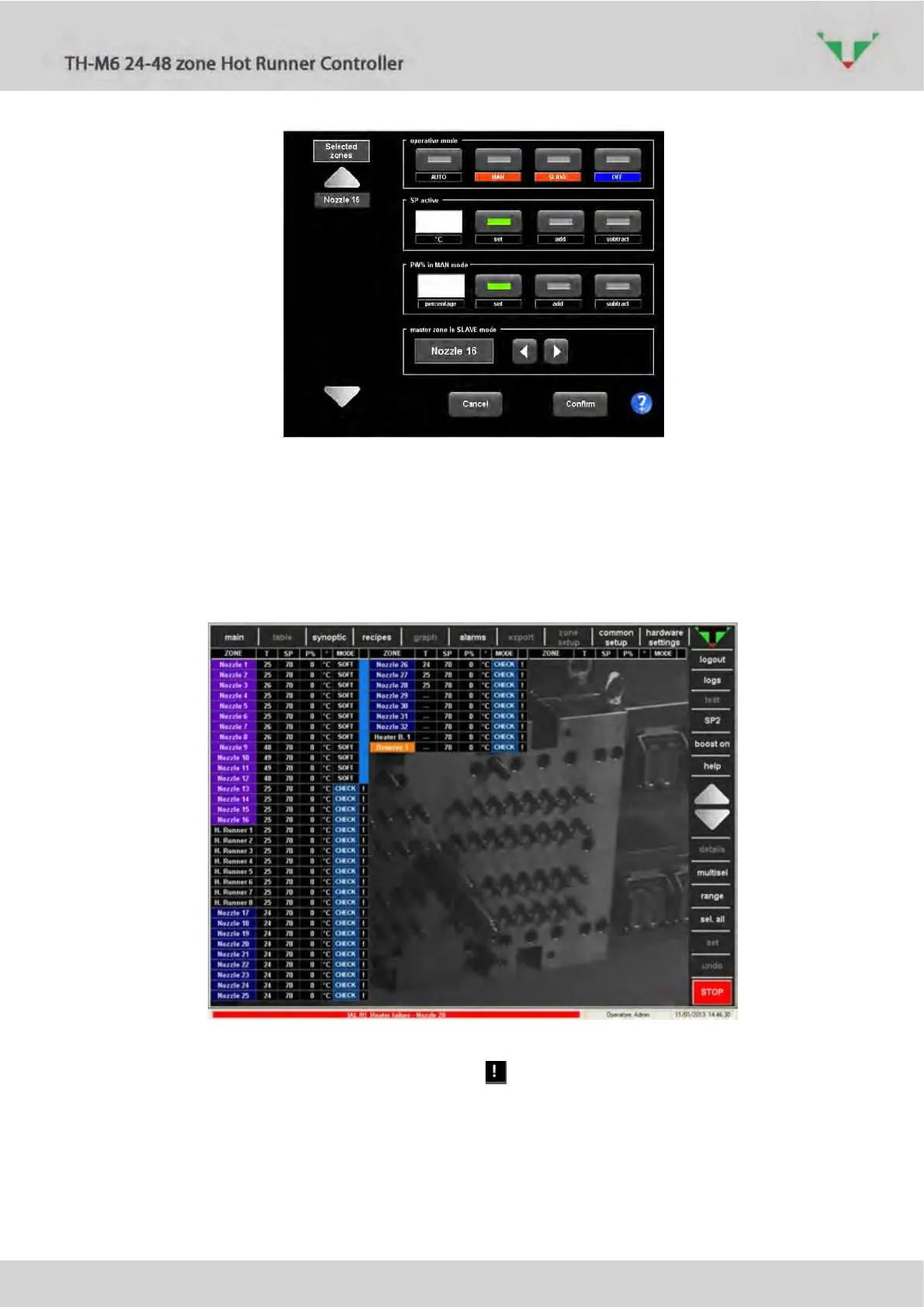

Figure 26: MASTER zone in SLAVE mode
6.4 Table environment
“table” page is an alternative, more compact, to “main” page. Selection of one ore more zones
and parameters change is possible in the same way explained for the “main” environment
(paragraph 6.3).
Figure 27: “table” environment
Alarms are represented with the generic symbol .
