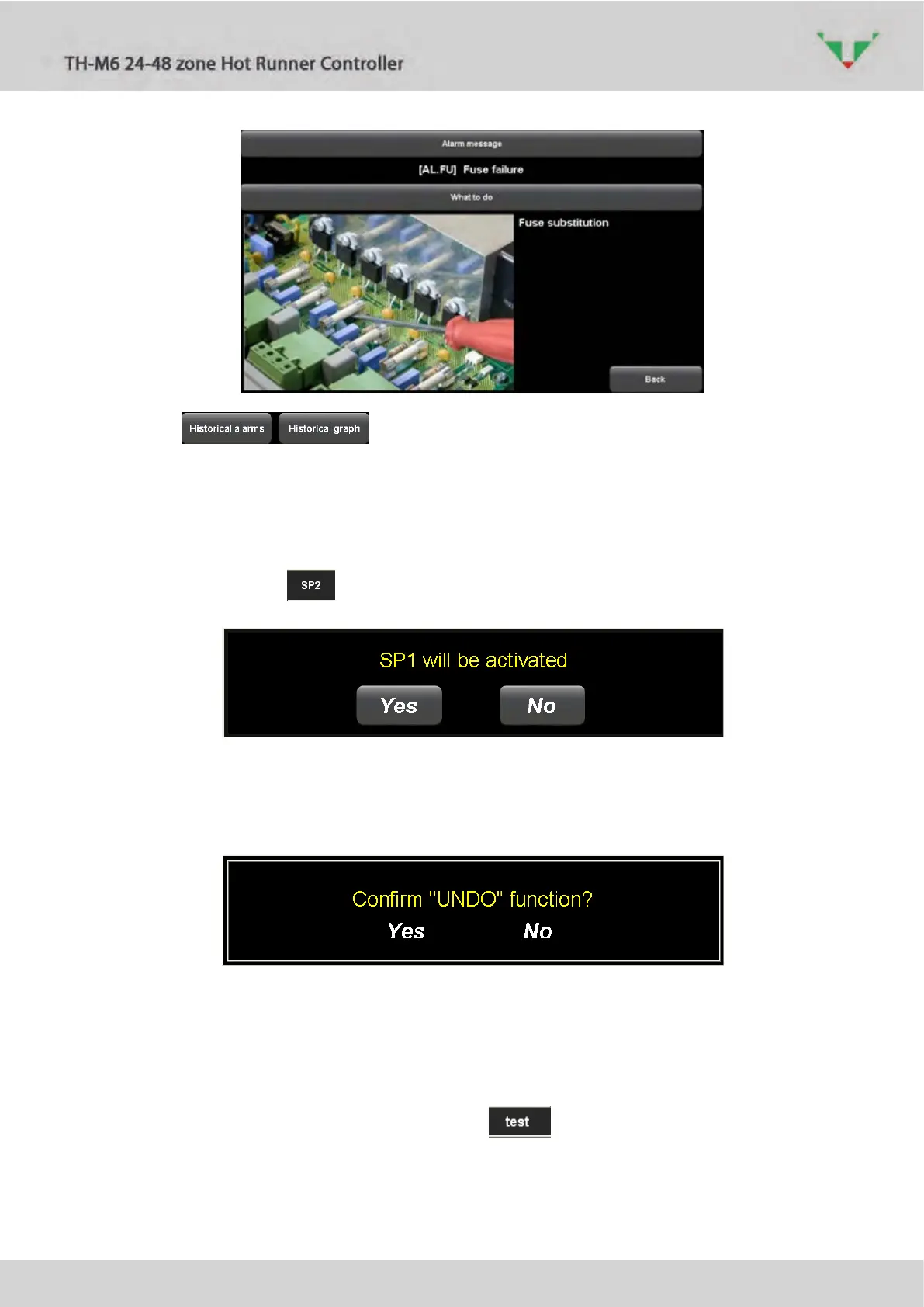

Figure 31
Buttons open the pages relative to the historical alarms and
historical process data of the selected zone.
6.6 SP1 - SP2 switch
Two indipendent Set Point are available. There is not a fixed rule: e.g. “SP1” can be used as
working Set Point and SP2 as standby Set Point.
Referring to Figure 13, button show that SP2 is the active Set Point. Press the button to
switch, after confirmation, to SP1
Figure 32
6.7 “undo” function
This function “undo” the last setting/action that was made, as well as it’s stored in the “logs”
register. Confirmation is required.
Figure 33
6.8 “test” function
“test” is a recursive routine that help to validate electrical connections between controller and
mould.
Controller must be in “STOP” mode.
Select the zone that must be “tested”, then press button:
