6.11.2 Recipe loading
In the menu of Figure 47, the button allows to load a stored
recipe (controller must be in “STOP” mode). All the settings (zone and common parameters and
synoptic configuration) will be restored at the values saved in the recipe.

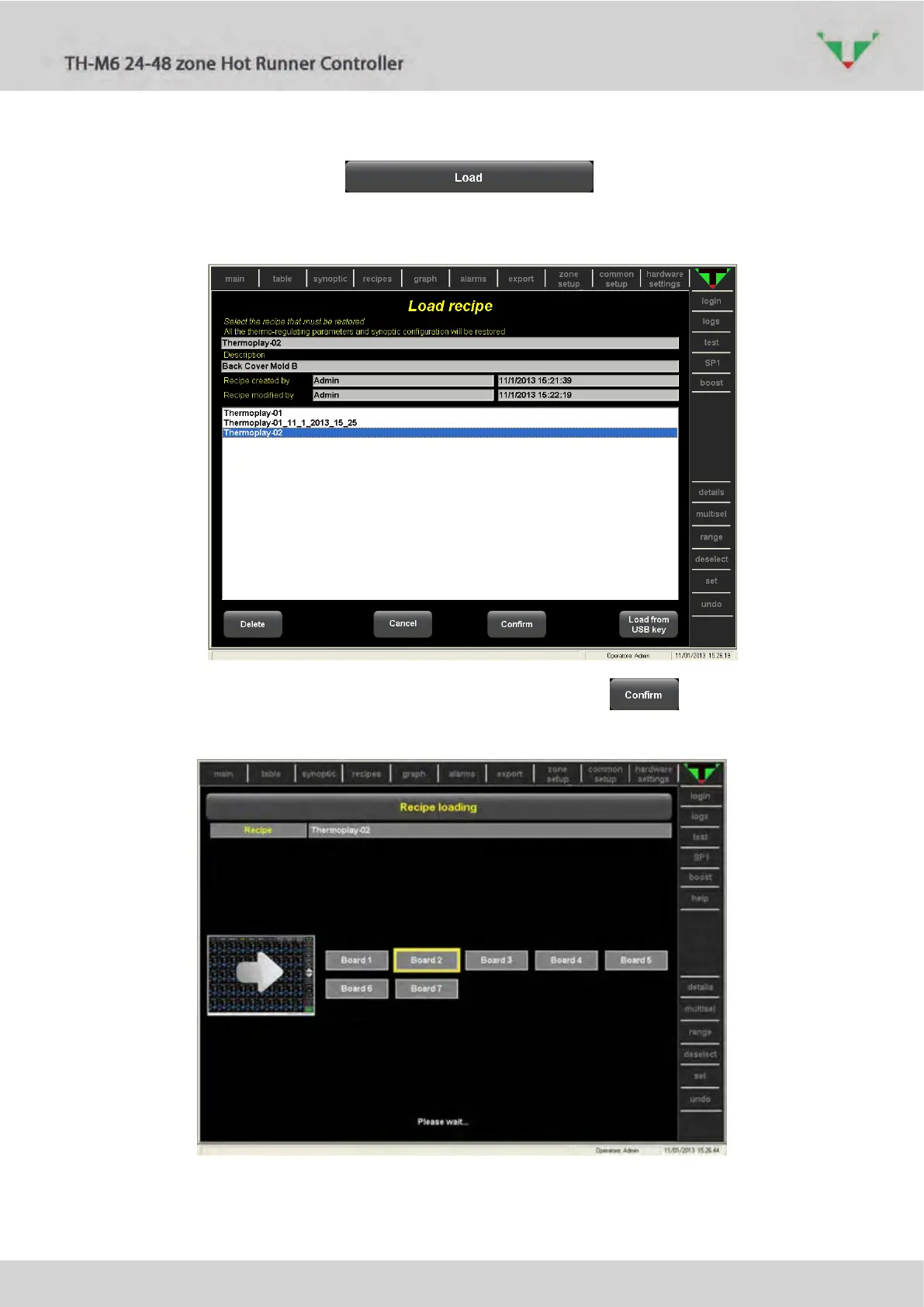

Figure 50: recipe loading
Select the recipe you want to load in the below list. Click on the button to complete
the operation. Page of Figure 51 shows that loading is in progress.
Figure 51: loading in progress
