61

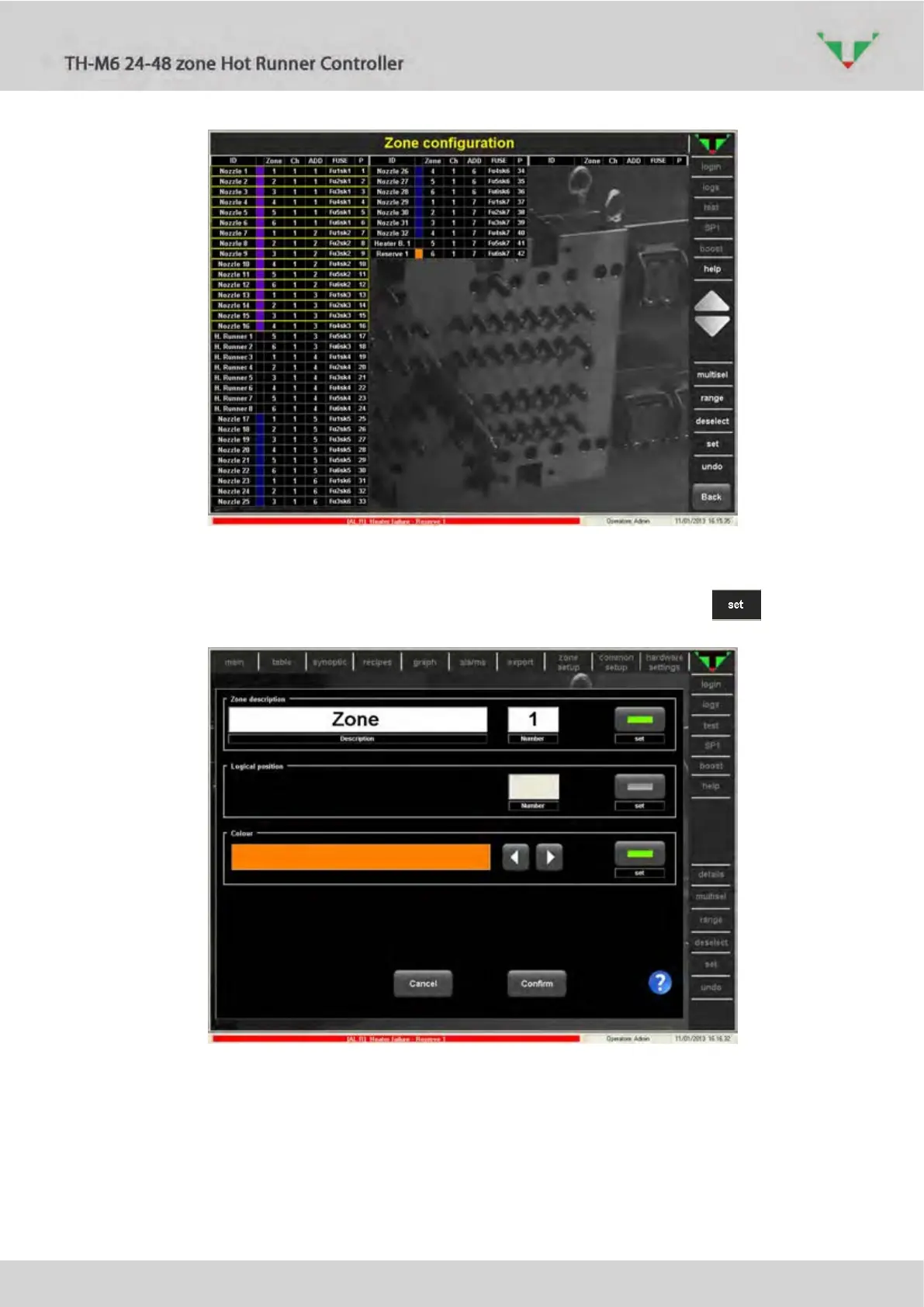

Figure 82
Select the zones that you need to change identification label and colour with the same
procedure saw in paragraph 6.3.6; e.g the first 16 zones in Figure 82. Then select .
Figure 83
Set the fields “Description”, “Number and “Colour” as displayed in Figure 83 to get the
following configuration:
