WALK-BEHIND TROWEL INSTRUCTION MANUAL
Step 5: Unwrap throttle control and engine safety shut-off wires to
prepare for their assembly. (Fig. 7 and 8)
Step 6: Remove air lter cover and air lter. (Fig. 9) Step 7: Check for free moving engine throttle control
lever and loosen pivot nut if necessary (Fig. 10)
Step 8: Push handle throttle lever all the way
forward for idle position (Fig. 11). If necessary, the
tension screw can be adjusted for smooth operation
while holding throttle position.
Step 9: Install the throttle control wire into the
throttle control lever. (Fig. 12)

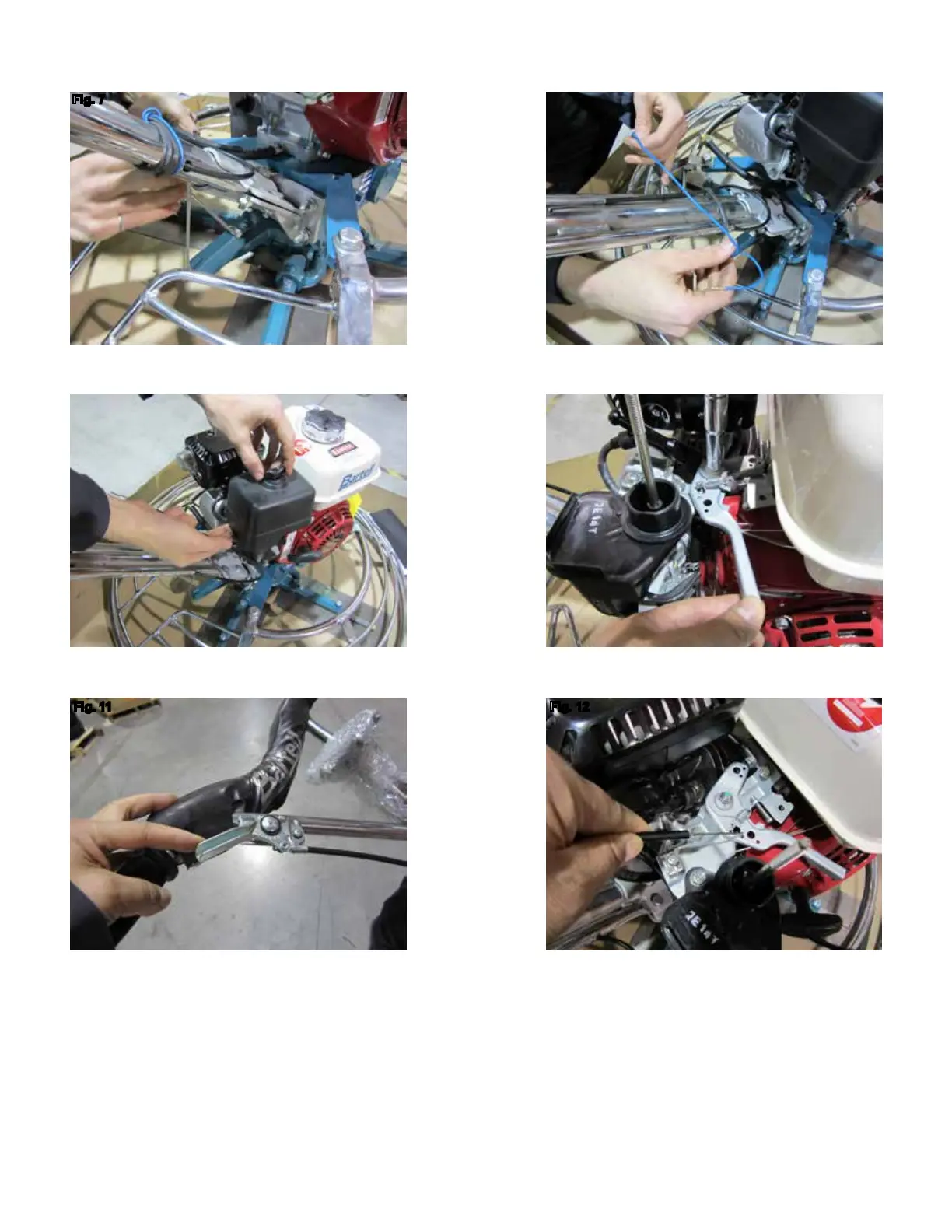

Fig. 7
Fig. 8
Fig. 9 Fig. 10
Fig. 11 Fig. 12
