Bartell BC120 - Parts Manual (Bc90;Bc436); Handle Assembly - Complete (Bc90;Bc436)

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10
Item Part Number Description QTY Item Part Number Description QTY
1 10684 Handle Grips (ea) 2 18 14448 Lockwasher, 6mm 1
2 21728 PHMS, M5-0.8x8mm 2 19 10345 Slide bushing 1
3 10703 Lockwasher, 5mm, internal 2 20 10696 Spring pin, 5mm-30 1
4 10508 Throttle Assembly 1 21 10291 Pitch control cable 1
5 10711 HHCS, M5-0.8x12mm LG 2 22 10346 Pulley 1
6 10703 Lockwasher, 5mm, internal 2 23 10697 Pin, 6mm 1
7 10342 Handle (tube only), powdercoated 1 24 10680 Cable support block 1
8 20713 Deadman switch 1 25 10347 Handle clamp 1
9 10343 Pitch control knob 1 26 10077 HHCS, M10-2.5x35mm lg 1
10 10689 Pin, 5x50mm 1 27 10897 Flat washer, 10mm 1
11 10609 Bearing 51204 1 28 13349 HHCS, M10-1.5x70mm lg 1
12 10683 Pitch control bushing 1 29 10348 Handle clamp 1
13 10798 Wave washer, 18mm 1 30 11802 Lock nut, M10-1.5x16mm 6
14 10692 Flat washer, 20mm x 34mm x 3mm 1 31 11621 Lockwasher, 10mm 5
15 10693 Lock pin, 18mm 1 32 20714 Safety Switch Wire 1
16 10344 Screw shaft 1 107 20650 Handle assembly (complete) 1
17 10694 SHCS, M6-1.0x6mm lg 1 1

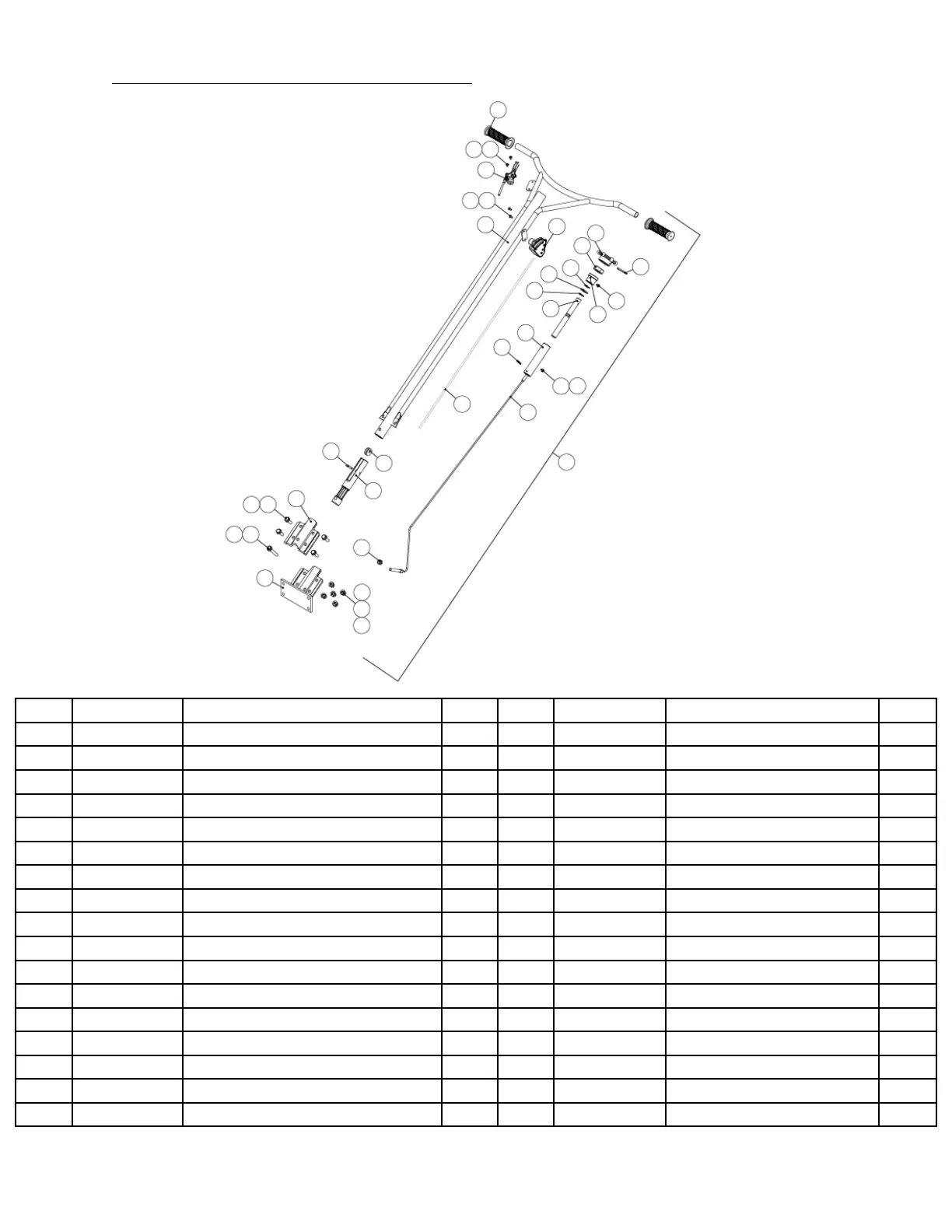

HANDLE ASSEMBLY - COMPLETE (BC90/BC436)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
17 18
21
107
22
23
24
25
26
27
27
28
29
30
31
27
30
18
32
