Bartell BC120 - Parts Manual (Bc120;Bc446); Spiderplate Assembly (Bc120;Bc446)

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10
Item Part Number Description Qty. Item Part Number Description Qty.
27 10897 Flat washer, 10mm 14 53 10867 M10 nut 8
31 11621 Lockwasher, M10 10 54 10757 M10x35 carriage bolt 4
32 10299 Yoke arm, LG 1 55 10758 Blade lock bolt 4
35 10900 Yoke Pin 1 56 10294 Spider plate 1
36 10743 Lock pin, 10mm 2 57 11337 Lift lever, LG 4
47
20647
Finish blade, 140mm x 455mm (metric)
4 58 11338 M12x25 boly 1
20410
Finish blade, 6x18 (imperial)
4 59 10009 Lockwaster 1/2” 2
20411
Float blade, 10x18 (ts metric and
imperial)
4
60 10804 Cap plug 1
61 11769 SHCS, M8 - 1.25 x 16mm 4
20484 Combo blade (metric) 4 62 10761 Grease cap 4
20480 Combo blade, 6x18 (imperial) 4 63 10296 Press plate, lg 1
48 11336 Trowel arm, lg 4 64 11342 Press bearing, 6209-2RS 1
49
10452 HHCS M8-1.25x40mm (metric) 8 65 10297 Press plate, cap 1
10401 HHCS, 5/16-18x1, 1/2”, lg (imperial) 8
113 10453
HHCS, M8-1.25x50mm (metric) 4
50 11614
Lock washer, 8mm
13
HHCS, 5/6-18x2” (imperial) 4
51 11667
Flat washer, 8mm
115 10322
Spider assembly (blades and hardware
not included)
1
52 10755 Lock screw 4

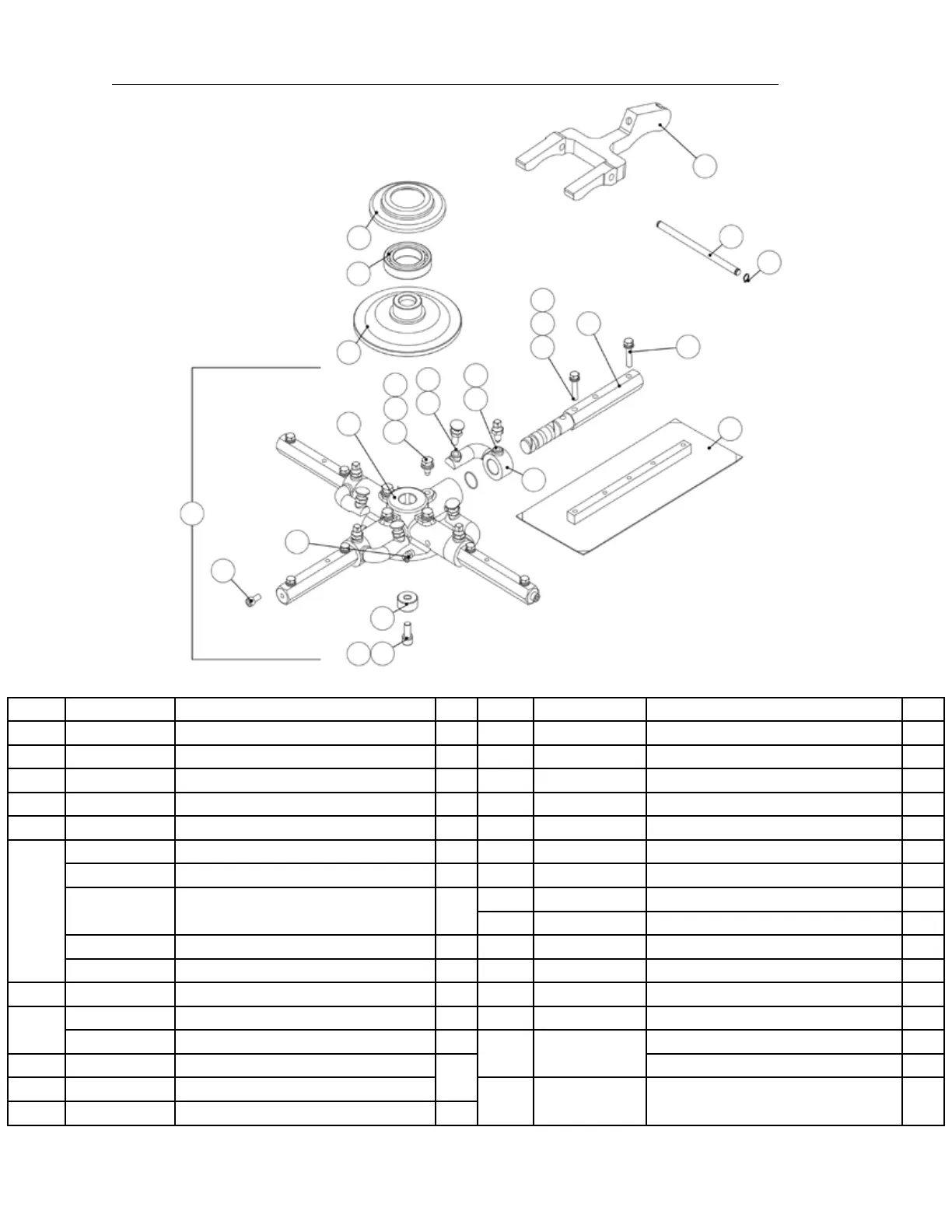

SPIDERPLATE ASSEMBLY - COMPLETE w/o BLADES/HARDWARE (BC120/BC446)
32
35
36
113
48
49
50
51
57
47
60
5958
61
62
56
55
31
27
54
53
52
53
65
64
63
115
23
