Bartell BC120 - Safety Ring Assembly;Mtg Plate (Bc90;Bc436)

CREATED: 07/04
REVISED: 07/14
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-566-5444
WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

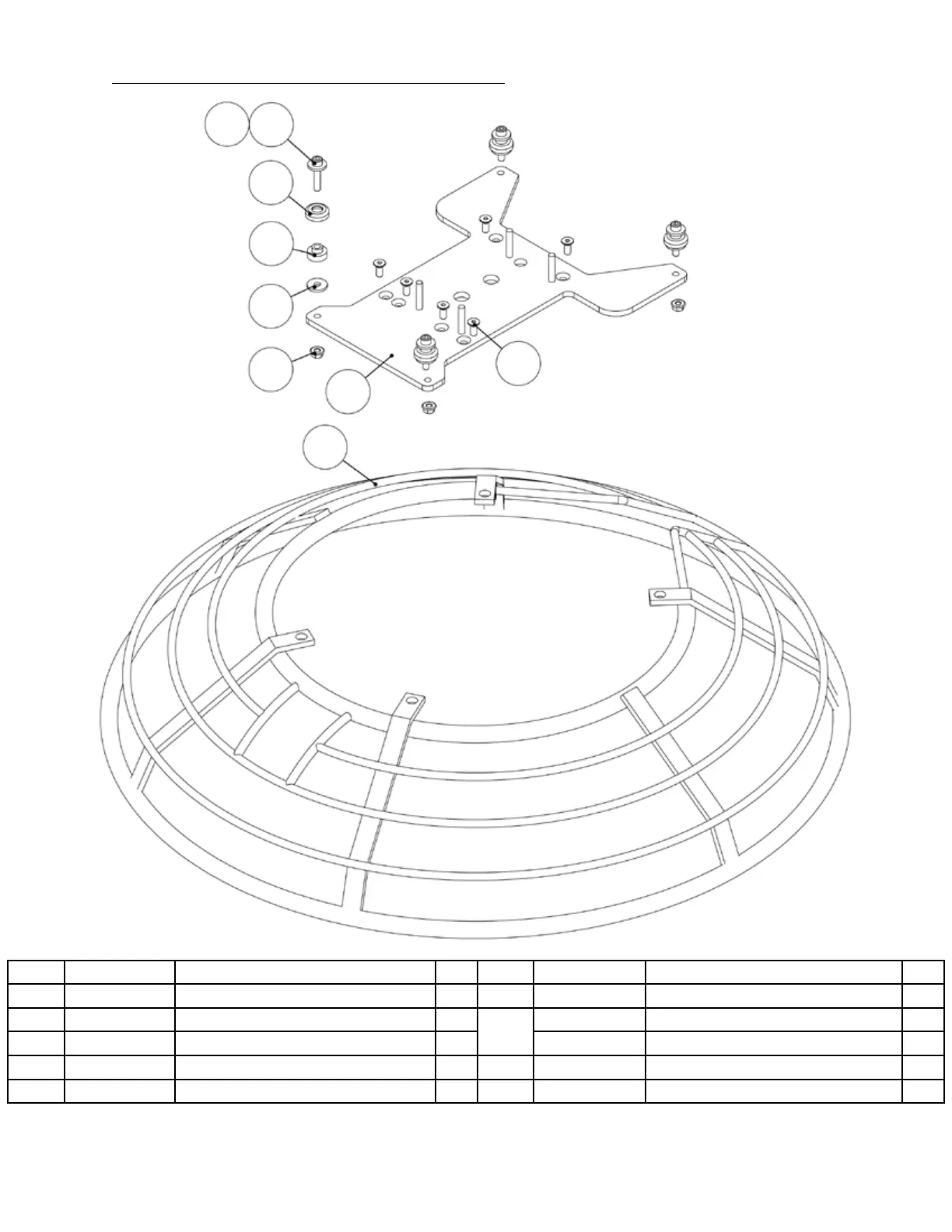

SAFETY RING ASSEMBLY/MTG PLATE (BC90/BC436)
Item Part Number Description Qty. Item Part Number Description Qty.
98 10786 Hex lock nut, anged, M8-1.25 4 103 10791 Plate washer, 8mm x 26mm x 3mm 8
99 10787 SHCS, M8-1.25x40mm 4
104
10338 Mtg plate - GX160 1
100 10919 Flat washer 4 10339 Mtg plate - GX270 1
101 10789 Bowl washer 4 105 10393 Guard ring, powder coated 1
102 10790 Rubber bushing 4 106 10792 FHSCS, M8-1.25x20mm 6
99
100
101
102
103
98
104
105
106
