WALK BEHIND POWER TROWEL INSTRUCTION MANUAL
23
375 ANNAGEM BLVD., MISSISSAUGA, ONTARIO, CANADA L5T 3A7, 905-364-4200 FAX 905-364-4201
CREATED: 07/04
REVISED: 05/10

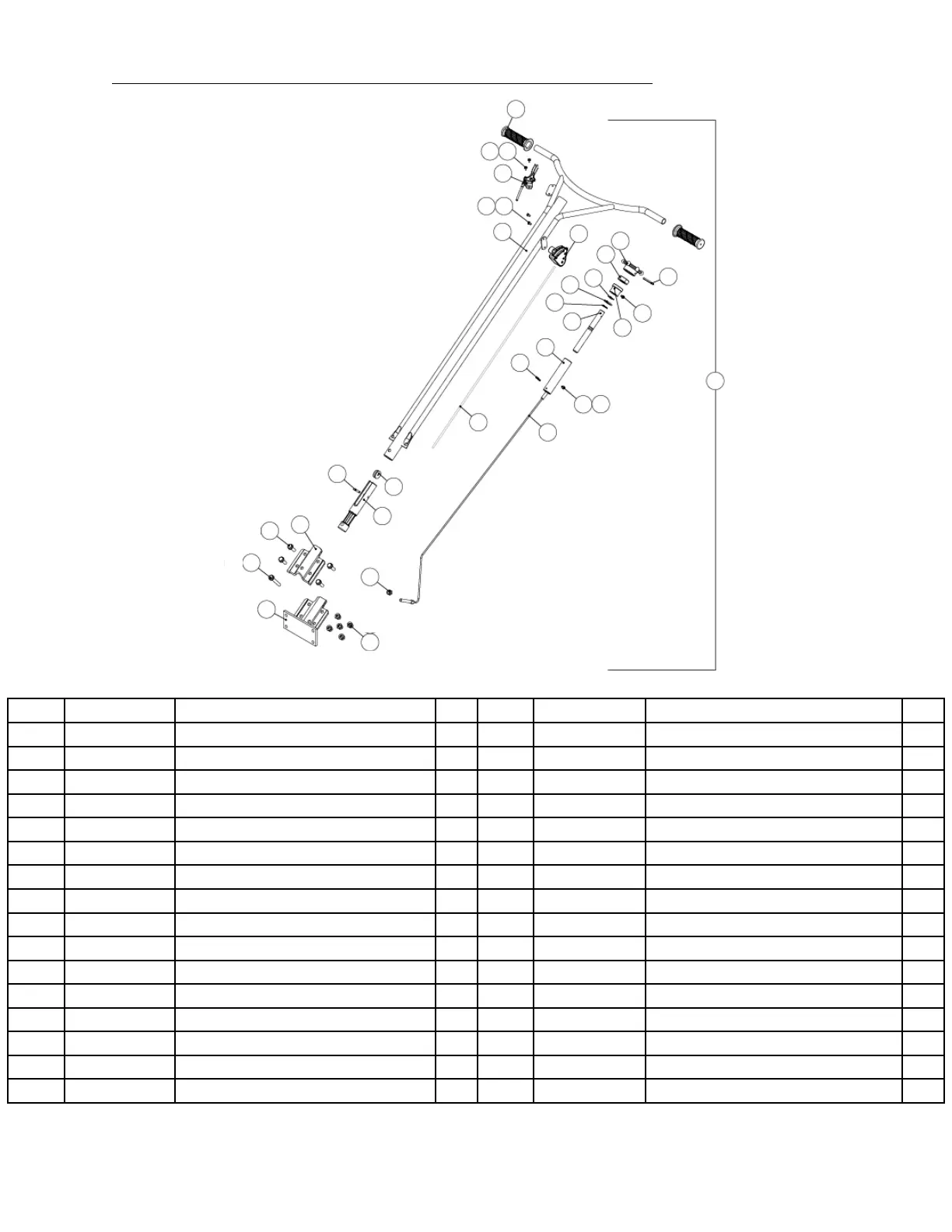

HANDLE ASSEMBLY, CHROME: FINE PITCH - COMPLETE (BC120/BC446)
1
23
4
56
7
8
9
10
11
12
13
14
15
16
17
19
20
17
18
21
22
23
24
25
26
27
29
28
28
Item Part Number Description Qty. Item Part Number Description Qty.
1 10509 Handle Grips (ea) 2 17 10511 RHMS, 10-20 x 3/8” 2
2 10513 RHMS, 10-24 x 1/4” 2 18 10521 Lockwasher, 1/4” 1
3 10703 Lockwasger, #10, Internal 2 19 10308 Slide bushing 1
4 10508 Throttle cable assembly 1 20 10309 Spring pin, 3/16” DIA x 1 1/2” LG 1
5 10711 RHMS, M5-0.8x8mm 2 21 20322 Pitch control cable 1
6 10703 Lockwasher, 5mm 2 22 10515 Pulley 1
7 20563 Handle (tube only) 1 23 10514 Pin 1
8 20713 Safety switch (centrifugal style) 1 24 10503 Cable support block 1
9 10301 Pitch adjust knob 1 25 10505 Handle clamp (upper) 1
10 10302 Pin, 3/16” x 1 3/4” LG 1 26 10507 HHCS, 3/8”-16 x 1” LG 4
11 10304 Bearing 1 27 10506 HHCS, 3/8”-16 x 2-1/2” LG 1
12 10305 Pitch control bushing 1 28 10317 Nylock nut, 3/8”-16 6
13 50206 Wave washer 1 29 20564 Handle clamp (low) 1
14 10306 Washer 1 32 20703 Wire Assembly 1
15 10307 Retaining Ring 1 116 20562 Handle assembly (complete) 1
16 10303 Pitch adjust shaft 12
116
25
32
