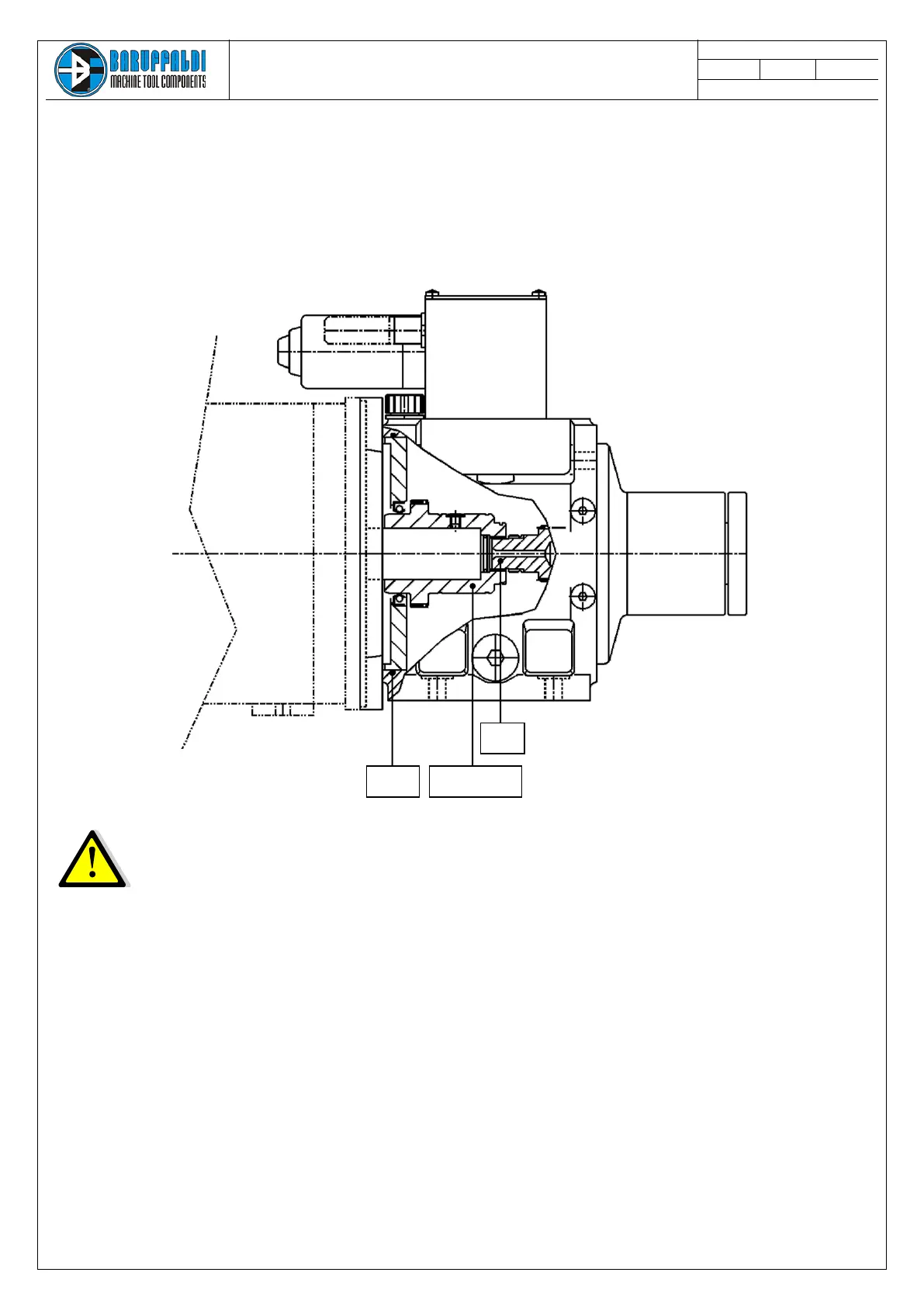

3.3.4 Assembling the gearbox on the motor
Check that the O-Ring (01a) is in place.
Assemble motor + flange + pinion to the gearbox, so that the free end of the pinion (09 or 22) fits the
spline of the sun gear (12).
After assembling, check that the gearbox rotation is free.
01a
12
09 or 22
